แอร์คอมเพรสเซอร์ MEDO VP 0125 Series



vp_0125_airflow_1               vp_0125_power_2

vp_0125_exhaust_3



Specifications MEDO VP 0125 Series

Air Compressor MEDO VP 0125 Series
Attainable Vacuum: -333 mbar
Free Air Displacement: 7 l/min
Rated Voltage: 230 V
120 V
Power Consumption: 14 W
14 W
Rated Frequency: 50 Hz
60 Hz
Life Expectancy: 3.000 h
Inlet: 6mm O.D. hose nipple
Outlet: 6mm O.D. hose nipple
Duty Cycle: Continuous
Coil Insulation Class: E or its equivalent (JETL) and B for UL-1450
Mounting Dimensions (L x W): 48 x 62 mm
Gross Weight: 0.7 kg
Leadwire Length: 200 mm

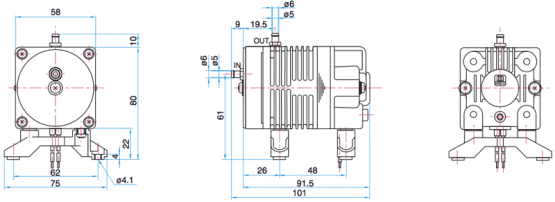

Dimensions MEDO VP 0125 Series

vp_0125_dimensions_
