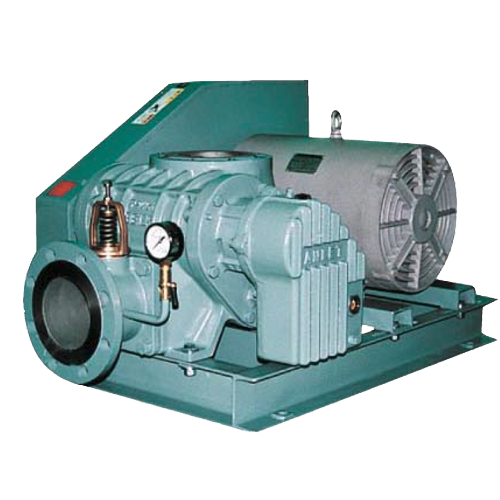

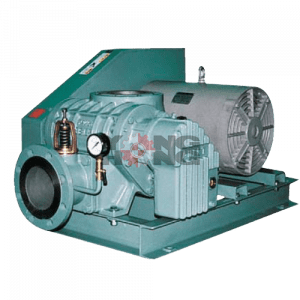

เครื่องเป่าอากาศแบบสุญญากาศ ANLET BE-H Series เป็นเครื่องเป่าลมที่ออกแบบมาเพื่อให้ประสิทธิภาพสูงในการทำงาน มีลักษณะที่เล็กกะทัดรัดและมีขนาดพอดีที่จะให้ผู้ใช้งานสามารถใช้งานได้อย่างสะดวก มีลูกสามโลบ (three-lobed) ซึ่งช่วยลดเสียงและสั่นสะเทือนให้ต่ำลงในขณะที่ให้ประสิทธิภาพการเป่าลมที่สูง.
| MODEL | Bore | min-1 | 1020mmAq | 2040mmAq | 3060mmAq | 4080mmAq | 5100mmAq | |||||
| m3/min | kW | m3/min | kW | m3/min | kW | m3/min | kW | m3/min | kW | |||
| BE 65 H | 2⅟2 B | 2100 | 2.54 | 0.9 | 2.44 | 1.4 | 2.33 | 1.9 | 2.21 | 2.4 | 2.08 | 2.9 |
| 2350 | 2.89 | 1 | 2.79 | 1.6 | 3.68 | 2.1 | 2.56 | 2.7 | 2.43 | 3.2 | ||
| 2450 | 3.03 | 1.1 | 2.93 | 1.6 | 2.82 | 2.2 | 2.7 | 2.7 | 2.57 | 3.4 | ||
| 2600 | 3.24 | 1.1 | 3.14 | 1.7 | 3.03 | 2.3 | 2.91 | 2.9 | 2.78 | 3.6 | ||
| 2750 | 3.45 | 1.2 | 3.35 | 1.8 | 3.24 | 2.5 | 3.12 | 3.1 | 2.99 | 3.8 | ||
| 2900 | 3.66 | 1.3 | 3.56 | 1.9 | 3.45 | 2.6 | 3.33 | 3.3 | 3.2 | 4 | ||
| 3250 | 4.15 | 1.4 | 4.05 | 2.2 | 3.94 | 2.9 | 3.82 | 3.7 | 3.69 | 4.4 | ||
| BE 80H | 3B | 2100 | 4.17 | 1.3 | 4.04 | 2.1 | 3.9 | 2.9 | 3.75 | 3.6 | 3.59 | 4.4 |
| 2350 | 4.61 | 1.5 | 4.48 | 2.4 | 4.34 | 3.2 | 4.19 | 4.1 | 4.03 | 4.9 | ||
| 2450 | 4.83 | 1.6 | 4.7 | 2.5 | 4.56 | 3.4 | 4.41 | 4.3 | 4.25 | 5.2 | ||
| 2600 | 5.16 | 1.7 | 5.03 | 2.6 | 4.89 | 3.6 | 4.74 | 4.5 | 4.58 | 5.5 | ||
| 2750 | 5.49 | 1.7 | 5.36 | 2.8 | 5.22 | 3.8 | 5.07 | 4.8 | 4.91 | 5.8 | ||
| 2900 | 5.82 | 1.8 | 5.69 | 2.9 | 5.55 | 4 | 5.4 | 5 | 5.24 | 6.1 | ||
| 3250 | 6.59 | 2.1 | 6.46 | 3.3 | 6.32 | 4.5 | 6.17 | 5.6 | 6.01 | 6.8 | ||
| BE 100H | 4B | 2050 | 5.96 | 2.1 | 5.79 | 3.2 | 5.61 | 4.3 | 5.42 | 5.4 | 5.22 | 6.6 |
| 2150 | 6.28 | 2.2 | 6.11 | 3.3 | 5.93 | 4.5 | 5.74 | 5.7 | 5.54 | 6.9 | ||
| 2300 | 6.77 | 2.3 | 6.6 | 3.6 | 6.42 | 4.8 | 6.23 | 6.1 | 6.03 | 7.4 | ||
| 2400 | 7.09 | 2.4 | 6.92 | 3.7 | 6.74 | 5 | 6.55 | 6.4 | 6.35 | 7.7 | ||
| 2700 | 8.05 | 2.7 | 7.88 | 4.2 | 7.7 | 5.7 | 7.51 | 7.2 | 7.31 | 8.6 | ||
| 2900 | 8.69 | 2.9 | 8.52 | 4.5 | 8.34 | 6.1 | 8.15 | 7.7 | 7.95 | 9.3 | ||
| 3050 | 9.17 | 3.1 | 9 | 4.7 | 8.82 | 6.4 | 8.63 | 8.1 | 8.43 | 9.8 | ||
| BE125H | 5B | 1750 | 9.9 | 2.7 | 9.5 | 4.5 | 9.1 | 6.4 | 8.7 | 8.3 | 8.2 | 10.2 |
| 1950 | 11.1 | 3 | 10.7 | 5 | 10.3 | 7.1 | 9.9 | 9.3 | 9.4 | 11.4 | ||
| 2150 | 12.3 | 3.3 | 11.9 | 5.5 | 11.5 | 7.8 | 11.1 | 10.2 | 10.6 | 12.5 | ||
| 2400 | 13.8 | 3.7 | 13.4 | 6.2 | 13 | 8.8 | 12.6 | 11.4 | 12.1 | 14 | ||
| 2700 | 15.6 | 4.1 | 15.2 | 7 | 14.8 | 9.8 | 14.4 | 12.8 | 13.9 | 15.7 | ||
| 2900 | 16.8 | 4.7 | 16.4 | 7.5 | 16 | 10.5 | 15.6 | 13.7 | 15.1 | 16.9 | ||
| 3050 | 17.7 | 4.7 | 17.3 | 7.9 | 16.9 | 11.2 | 16.5 | 14.5 | 16 | 17.8 | ||
| BE 150H | 6B | 1550 | 18.4 | 5.4 | 17.7 | 8.7 | 17.1 | 11.9 | 16.4 | 15.1 | 15.7 | 18.4 |
| 1700 | 20.3 | 5.9 | 19.6 | 9.5 | 19 | 13 | 18.3 | 16.6 | 17.6 | 20.2 | ||
| 1800 | 21.6 | 6.3 | 20.9 | 10.1 | 20.3 | 13.8 | 19.6 | 17.6 | 18.9 | 21.4 | ||
| 1950 | 23.5 | 6.8 | 22.8 | 10.9 | 22.2 | 15 | 21.5 | 19.1 | 20.8 | 23.2 | ||
| 2100 | 25.4 | 74 | 24.7 | 11.8 | 24.1 | 16.2 | 23.4 | 20.6 | 22.7 | 25 | ||
| 2250 | 27.4 | 7.8 | 26.7 | 12.6 | 26.1 | 17.3 | 25.4 | 22 | 24.7 | 26.7 | ||
| 2550 | 31.2 | 8.9 | 30.5 | 14.3 | 29.9 | 19.6 | 29.2 | 24.9 | 28.5 | 30.3 | ||
