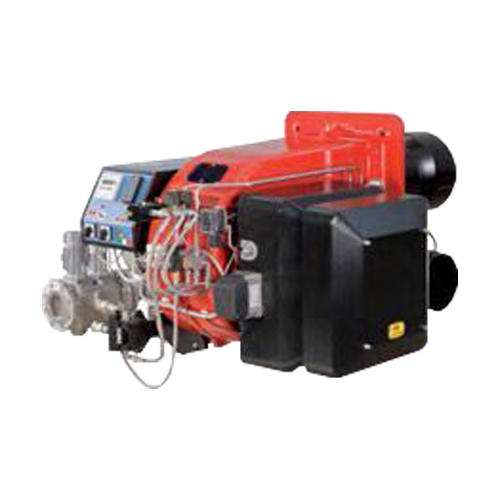

เครื่องพ่นไฟ C.I.B Unigas MILLE KR1025-KR1040 เป็นเครื่องพ่นไฟที่ใช้ระบบลม (pneumatic) รุ่น KR1025-KR1040 ของ C.I.B Unigas ถูกออกแบบมาเพื่อให้มีประสิทธิภาพสูงในการเผาไหม้อย่างมีประสิทธิภาพ มีการควบคุมการเผาไหม้ที่แม่นยำและปรับได้ตามความต้องการของงาน ระบบลมช่วยให้กระบวนการเผาไหม้เป็นไปอย่างเรียบวิธี โดยรุ่น MILLE KR1025-KR1040 นี้เน้นที่ความคุ้มค่าในการใช้งานที่มีการควบคุมที่ดีและประสิทธิภาพสูง
MECHANICAL ATOMIZATION
The need to meet any particolar requests, as building a burner able to burn either natural gas or heavy oil, has lead us to create the TECNOPRESS burner series, suitable for medium and large outputs and for industrial purposes.
The output from 2550 kW and 13000 kW allows many adjustments to satisfy all requests.
All burners with progressive for modulating operation, have been built to burn oils whose standard viscosity is 50 cSt at 50 °C (7 °E at 50 °C). Upon request it is available the version for heavy oils up to 400 cSt at 50 °C (50 °E at 50 °C). In order to keep the oil fluid, the burner is provided with a pre-heating tank equipped with low thermical load electrical resistance. Each system can be further distinguished by the equipment provided:
electronic or mechanical adjustment
built-in or separately-mounted (wall or console) control panels
Burner type | Model | Power [min, kW] | Power [max, kW] | Gas flow [min, Smᶾ/h] | Gas flow [max, Smᶾ/h] | Gas pressure [max, mbar] | Oil flow [min, kg/h] | Oil flow [max, kg/h] | Voltage [V] | Phases / frequency [Hz] | Total power [kW] | Fan motor [kW] | Pump motor [kW] | Oil heating resistors [kW] | Power supply [aux, kW] | Protection class IP |
KR1025 | MP.PR.S.xx.A.1.65 | 2550 | 8700 | 270 | 921 | 500 | 228 | 780 | 400 | 3Nac 50 | 39 | 18.5 | 4 | 16 | 0.5 | IP40 |
KR1025 | MP.PR.S.xx.A.1.80 | 2550 | 8700 | 270 | 921 | 500 | 228 | 780 | 400 | 3Nac 50 | 39 | 18.5 | 4 | 16 | 0.5 | IP40 |
KR1025 | MP.PR.S.xx.A.1.100 | 2550 | 8700 | 270 | 921 | 500 | 228 | 780 | 400 | 3Nac 50 | 39 | 18.5 | 4 | 16 | 0.5 | IP40 |
KR1025 | MN.PR.S.xx.A.1.65 | 2550 | 8700 | 270 | 921 | 500 | 222 | 759 | 400 | 3Nac 50 | 71 | 18.5 | 4 | 24 + 24 | 0.5 | IP40 |
KR1025 | MN.PR.S.xx.A.1.80 | 2550 | 8700 | 270 | 921 | 500 | 222 | 759 | 400 | 3Nac 50 | 71 | 18.5 | 4 | 24 + 24 | 0.5 | IP40 |
KR1025 | MN.PR.S.xx.A.1.100 | 2550 | 8700 | 270 | 921 | 500 | 222 | 759 | 400 | 3Nac 50 | 71 | 18.5 | 4 | 24 + 24 | 0.5 | IP40 |
KR1025 | MD.PR.S.xx.A.1.65 | 2550 | 8700 | 270 | 921 | 500 | 222 | 759 | 400 | 3Nac 50 | 71 | 18.5 | 4 | 24 + 24 | 0.5 | IP40 |
KR1025 | MD.PR.S.xx.A.1.80 | 2550 | 8700 | 270 | 921 | 500 | 222 | 759 | 400 | 3Nac 50 | 71 | 18.5 | 4 | 24 + 24 | 0.5 | IP40 |
KR1025 | MD.PR.S.xx.A.1.100 | 2550 | 8700 | 270 | 921 | 500 | 222 | 759 | 400 | 3Nac 50 | 71 | 18.5 | 4 | 24 + 24 | 0.5 | IP40 |
KR1025 | MP.MD.S.xx.A.1.65 | 2550 | 8700 | 270 | 921 | 500 | 228 | 780 | 400 | 3Nac 50 | 39 | 18.5 | 4 | 16 | 0.5 | IP40 |
KR1025 | MP.MD.S.xx.A.1.80 | 2550 | 8700 | 270 | 921 | 500 | 228 | 780 | 400 | 3Nac 50 | 39 | 18.5 | 4 | 16 | 0.5 | IP40 |
KR1025 | MP.MD.S.xx.A.1.100 | 2550 | 8700 | 270 | 921 | 500 | 228 | 780 | 400 | 3Nac 50 | 39 | 18.5 | 4 | 16 | 0.5 | IP40 |
KR1025 | MN.MD.S.xx.A.1.65 | 2550 | 8700 | 270 | 921 | 500 | 222 | 759 | 400 | 3Nac 50 | 71 | 18.5 | 4 | 24 + 24 | 0.5 | IP40 |
KR1025 | MN.MD.S.xx.A.1.80 | 2550 | 8700 | 270 | 921 | 500 | 222 | 759 | 400 | 3Nac 50 | 71 | 18.5 | 4 | 24 + 24 | 0.5 | IP40 |
KR1025 | MN.MD.S.xx.A.1.100 | 2550 | 8700 | 270 | 921 | 500 | 222 | 759 | 400 | 3Nac 50 | 71 | 18.5 | 4 | 24 + 24 | 0.5 | IP40 |
KR1025 | MD.MD.S.xx.A.1.65 | 2550 | 8700 | 270 | 921 | 500 | 222 | 759 | 400 | 3Nac 50 | 71 | 18.5 | 4 | 24 + 24 | 0.5 | IP40 |
KR1025 | MD.MD.S.xx.A.1.80 | 2550 | 8700 | 270 | 921 | 500 | 222 | 759 | 400 | 3Nac 50 | 71 | 18.5 | 4 | 24 + 24 | 0.5 | IP40 |
KR1025 | MD.MD.S.xx.A.1.100 | 2550 | 8700 | 270 | 921 | 500 | 222 | 759 | 400 | 3Nac 50 | 71 | 18.5 | 4 | 24 + 24 | 0.5 | IP40 |
KR1025 | MP.MD.S.xx.A.1.65.ES | 2550 | 8700 | 270 | 921 | 500 | 228 | 780 | 400 | 3Nac 50 | 39 | 18.5 | 4 | 16 | 0.5 | IP40 |
KR1025 | MP.MD.S.xx.A.1.80.ES | 2550 | 8700 | 270 | 921 | 500 | 228 | 780 | 400 | 3Nac 50 | 39 | 18.5 | 4 | 16 | 0.5 | IP40 |
KR1025 | MP.MD.S.xx.A.1.100.ES | 2550 | 8700 | 270 | 921 | 500 | 228 | 780 | 400 | 3Nac 50 | 39 | 18.5 | 4 | 16 | 0.5 | IP40 |
KR1025 | MN.MD.S.xx.A.1.65.ES | 2550 | 8700 | 270 | 921 | 500 | 222 | 759 | 400 | 3Nac 50 | 71 | 18.5 | 4 | 24 + 24 | 0.5 | IP40 |
KR1025 | MN.MD.S.xx.A.1.80.ES | 2550 | 8700 | 270 | 921 | 500 | 222 | 759 | 400 | 3Nac 50 | 71 | 18.5 | 4 | 24 + 24 | 0.5 | IP40 |
KR1025 | MN.MD.S.xx.A.1.100.ES | 2550 | 8700 | 270 | 921 | 500 | 222 | 759 | 400 | 3Nac 50 | 71 | 18.5 | 4 | 24 + 24 | 0.5 | IP40 |
KR1025 | MD.MD.S.xx.A.1.65.ES | 2550 | 8700 | 270 | 921 | 500 | 222 | 759 | 400 | 3Nac 50 | 71 | 18.5 | 4 | 24 + 24 | 0.5 | IP40 |
KR1025 | MD.MD.S.xx.A.1.80.ES | 2550 | 8700 | 270 | 921 | 500 | 222 | 759 | 400 | 3Nac 50 | 71 | 18.5 | 4 | 24 + 24 | 0.5 | IP40 |
KR1025 | MD.MD.S.xx.A.1.100.ES | 2550 | 8700 | 270 | 921 | 500 | 222 | 759 | 400 | 3Nac 50 | 71 | 18.5 | 4 | 24 + 24 | 0.5 | IP40 |
Burner type | Model | Power [min, kW] | Power [max, kW] | Gas flow [min, Smᶾ/h] | Gas flow [max, Smᶾ/h] | Gas pressure [max, mbar] | Oil flow [min, kg/h] | Oil flow [max, kg/h] | Voltage [V] | Phases / frequency [Hz] | Total power [kW] | Fan motor [kW] | Pump motor [kW] | Oil heating resistors [kW] | Power supply [aux, kW] | Protection class IP |
KR1030 | MP.PR.S.xx.A.1.65 | 2550 | 9500 | 270 | 1005 | 500 | 228 | 851 | 400 | 3Nac 50 | 44 | 22 | 5.5 | 16 | 0.5 | IP40 |
KR1030 | MP.PR.S.xx.A.1.80 | 2550 | 10600 | 270 | 1122 | 500 | 228 | 950 | 400 | 3Nac 50 | 44 | 22 | 5.5 | 16 | 0.5 | IP40 |
KR1030 | MP.PR.S.xx.A.1.100 | 2550 | 10600 | 270 | 1122 | 500 | 228 | 950 | 400 | 3Nac 50 | 44 | 22 | 5.5 | 16 | 0.5 | IP40 |
KR1030 | MN.PR.S.xx.A.1.65 | 2550 | 9500 | 270 | 1005 | 500 | 222 | 828 | 400 | 3Nac 50 | 76 | 22 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1030 | MN.PR.S.xx.A.1.80 | 2550 | 10600 | 270 | 1122 | 500 | 222 | 924 | 400 | 3Nac 50 | 76 | 22 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1030 | MN.PR.S.xx.A.1.100 | 2550 | 10600 | 270 | 1122 | 500 | 222 | 924 | 400 | 3Nac 50 | 76 | 22 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1030 | MD.PR.S.xx.A.1.65 | 2550 | 9500 | 270 | 1005 | 500 | 222 | 828 | 400 | 3Nac 50 | 76 | 22 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1030 | MD.PR.S.xx.A.1.80 | 2550 | 10600 | 270 | 1122 | 500 | 222 | 924 | 400 | 3Nac 50 | 76 | 22 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1030 | MD.PR.S.xx.A.1.100 | 2550 | 10600 | 270 | 1122 | 500 | 222 | 924 | 400 | 3Nac 50 | 76 | 22 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1030 | MP.MD.S.xx.A.1.65 | 2550 | 9500 | 270 | 1005 | 500 | 228 | 851 | 400 | 3Nac 50 | 44 | 22 | 5.5 | 16 | 0.5 | IP40 |
KR1030 | MP.MD.S.xx.A.1.80 | 2550 | 10600 | 270 | 1122 | 500 | 228 | 950 | 400 | 3Nac 50 | 44 | 22 | 5.5 | 16 | 0.5 | IP40 |
KR1030 | MP.MD.S.xx.A.1.100 | 2550 | 10600 | 270 | 1122 | 500 | 228 | 950 | 400 | 3Nac 50 | 44 | 22 | 5.5 | 16 | 0.5 | IP40 |
KR1030 | MN.MD.S.xx.A.1.65 | 2550 | 9500 | 270 | 1005 | 500 | 222 | 828 | 400 | 3Nac 50 | 76 | 22 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1030 | MN.MD.S.xx.A.1.80 | 2550 | 10600 | 270 | 1122 | 500 | 222 | 924 | 400 | 3Nac 50 | 76 | 22 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1030 | MN.MD.S.xx.A.1.100 | 2550 | 10600 | 270 | 1122 | 500 | 222 | 924 | 400 | 3Nac 50 | 76 | 22 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1030 | MD.MD.S.xx.A.1.65 | 2550 | 9500 | 270 | 1005 | 500 | 222 | 828 | 400 | 3Nac 50 | 76 | 22 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1030 | MD.MD.S.xx.A.1.80 | 2550 | 10600 | 270 | 1122 | 500 | 222 | 924 | 400 | 3Nac 50 | 76 | 22 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1030 | MD.MD.S.xx.A.1.100 | 2550 | 10600 | 270 | 1122 | 500 | 222 | 924 | 400 | 3Nac 50 | 76 | 22 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1030 | MP.MD.S.xx.A.1.65.ES | 2550 | 9500 | 270 | 1005 | 500 | 228 | 851 | 400 | 3Nac 50 | 44 | 22 | 5.5 | 16 | 0.5 | IP40 |
KR1030 | MP.MD.S.xx.A.1.80.ES | 2550 | 10600 | 270 | 1122 | 500 | 228 | 950 | 400 | 3Nac 50 | 44 | 22 | 5.5 | 16 | 0.5 | IP40 |
KR1030 | MP.MD.S.xx.A.1.100.ES | 2550 | 10600 | 270 | 1122 | 500 | 228 | 950 | 400 | 3Nac 50 | 44 | 22 | 5.5 | 16 | 0.5 | IP40 |
KR1030 | MN.MD.S.xx.A.1.65.ES | 2550 | 9500 | 270 | 1005 | 500 | 222 | 828 | 400 | 3Nac 50 | 76 | 22 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1030 | MN.MD.S.xx.A.1.80.ES | 2550 | 10600 | 270 | 1122 | 500 | 222 | 924 | 400 | 3Nac 50 | 76 | 22 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1030 | MN.MD.S.xx.A.1.100.ES | 2550 | 10600 | 270 | 1122 | 500 | 222 | 924 | 400 | 3Nac 50 | 76 | 22 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1030 | MD.MD.S.xx.A.1.65.ES | 2550 | 9500 | 270 | 1005 | 500 | 222 | 828 | 400 | 3Nac 50 | 76 | 22 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1030 | MD.MD.S.xx.A.1.80.ES | 2550 | 10600 | 270 | 1122 | 500 | 222 | 924 | 400 | 3Nac 50 | 76 | 22 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1030 | MD.MD.S.xx.A.1.100.ES | 2550 | 10600 | 270 | 1122 | 500 | 222 | 924 | 400 | 3Nac 50 | 76 | 22 | 5.5 | 24 + 24 | 0.5 | IP40 |
Burner type | Model | Power [min, kW] | Power [max, kW] | Gas flow [min, Smᶾ/h] | Gas flow [max, Smᶾ/h] | Gas pressure [max, mbar] | Oil flow [min, kg/h] | Oil flow [max, kg/h] | Voltage [V] | Phases / frequency [Hz] | Total power [kW] | Fan motor [kW] | Pump motor [kW] | Oil heating resistors [kW] | Power supply [aux, kW] | Protection class IP |
KR1040 | MP.PR.S.xx.A.1.80 | 2550 | 13000 | 270 | 1376 | 500 | 222 | 1133 | 400 | 3Nac 50 | 52 | 30 | 5.5 | 16 | 0.5 | IP40 |
KR1040 | MP.PR.S.xx.A.1.100 | 2550 | 13000 | 270 | 1376 | 500 | 222 | 1133 | 400 | 3Nac 50 | 52 | 30 | 5.5 | 16 | 0.5 | IP40 |
KR1040 | MP.PR.S.xx.A.1.125 | 2550 | 13000 | 270 | 1376 | 500 | 222 | 1133 | 400 | 3Nac 50 | 52 | 30 | 5.5 | 16 | 0.5 | IP40 |
KR1040 | MN.PR.S.xx.A.1.80 | 2550 | 13000 | 270 | 1376 | 500 | 222 | 1133 | 400 | 3Nac 50 | 84 | 30 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1040 | MN.PR.S.xx.A.1.100 | 2550 | 13000 | 270 | 1376 | 500 | 222 | 1133 | 400 | 3Nac 50 | 84 | 30 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1040 | MN.PR.S.xx.A.1.125 | 2550 | 13000 | 270 | 1376 | 500 | 222 | 1133 | 400 | 3Nac 50 | 84 | 30 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1040 | MD.PR.S.xx.A.1.80 | 2550 | 13000 | 270 | 1376 | 500 | 222 | 1133 | 400 | 3Nac 50 | 84 | 30 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1040 | MD.PR.S.xx.A.1.100 | 2550 | 13000 | 270 | 1376 | 500 | 222 | 1133 | 400 | 3Nac 50 | 84 | 30 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1040 | MD.PR.S.xx.A.1.125 | 2550 | 13000 | 270 | 1376 | 500 | 222 | 1133 | 400 | 3Nac 50 | 84 | 30 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1040 | MP.MD.S.xx.A.1.80 | 2550 | 13000 | 270 | 1376 | 500 | 222 | 1133 | 400 | 3Nac 50 | 52 | 30 | 5.5 | 16 | 0.5 | IP40 |
KR1040 | MP.MD.S.xx.A.1.100 | 2550 | 13000 | 270 | 1376 | 500 | 222 | 1133 | 400 | 3Nac 50 | 52 | 30 | 5.5 | 16 | 0.5 | IP40 |
KR1040 | MP.MD.S.xx.A.1.125 | 2550 | 13000 | 270 | 1376 | 500 | 222 | 1133 | 400 | 3Nac 50 | 52 | 30 | 5.5 | 16 | 0.5 | IP40 |
KR1040 | MN.MD.S.xx.A.1.80 | 2550 | 13000 | 270 | 1376 | 500 | 222 | 1133 | 400 | 3Nac 50 | 84 | 30 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1040 | MN.MD.S.xx.A.1.100 | 2550 | 13000 | 270 | 1376 | 500 | 222 | 1133 | 400 | 3Nac 50 | 84 | 30 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1040 | MN.MD.S.xx.A.1.125 | 2550 | 13000 | 270 | 1376 | 500 | 222 | 1133 | 400 | 3Nac 50 | 84 | 30 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1040 | MD.MD.S.xx.A.1.80 | 2550 | 13000 | 270 | 1376 | 500 | 222 | 1133 | 400 | 3Nac 50 | 84 | 30 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1040 | MD.MD.S.xx.A.1.100 | 2550 | 13000 | 270 | 1376 | 500 | 222 | 1133 | 400 | 3Nac 50 | 84 | 30 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1040 | MD.MD.S.xx.A.1.125 | 2550 | 13000 | 270 | 1376 | 500 | 222 | 1133 | 400 | 3Nac 50 | 84 | 30 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1040 | MP.MD.S.xx.A.1.80.ES | 2550 | 13000 | 270 | 1376 | 500 | 222 | 1133 | 400 | 3Nac 50 | 52 | 30 | 5.5 | 16 | 0.5 | IP40 |
KR1040 | MP.MD.S.xx.A.1.100.ES | 2550 | 13000 | 270 | 1376 | 500 | 222 | 1133 | 400 | 3Nac 50 | 52 | 30 | 5.5 | 16 | 0.5 | IP40 |
KR1040 | MP.MD.S.xx.A.1.125.ES | 2550 | 13000 | 270 | 1376 | 500 | 222 | 1133 | 400 | 3Nac 50 | 52 | 30 | 5.5 | 16 | 0.5 | IP40 |
KR1040 | MN.MD.S.xx.A.1.80.ES | 2550 | 13000 | 270 | 1376 | 500 | 222 | 1133 | 400 | 3Nac 50 | 84 | 30 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1040 | MN.MD.S.xx.A.1.100.ES | 2550 | 13000 | 270 | 1376 | 500 | 222 | 1133 | 400 | 3Nac 50 | 84 | 30 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1040 | MN.MD.S.xx.A.1.125.ES | 2550 | 13000 | 270 | 1376 | 500 | 222 | 1133 | 400 | 3Nac 50 | 84 | 30 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1040 | MD.MD.S.xx.A.1.80.ES | 2550 | 13000 | 270 | 1376 | 500 | 222 | 1133 | 400 | 3Nac 50 | 84 | 30 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1040 | MD.MD.S.xx.A.1.100.ES | 2550 | 13000 | 270 | 1376 | 500 | 222 | 1133 | 400 | 3Nac 50 | 84 | 30 | 5.5 | 24 + 24 | 0.5 | IP40 |
KR1040 | MD.MD.S.xx.A.1.125.ES | 2550 | 13000 | 270 | 1376 | 500 | 222 | 1133 | 400 | 3Nac 50 | 84 | 30 | 5.5 | 24 + 24 | 0.5 | IP40 |
