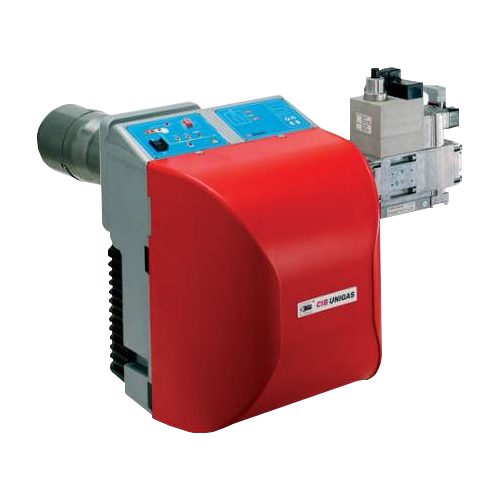

เครื่องพ่นไฟ Gas Burners C I B unigas Low NOx Class 2 IDEA NG280-NG550

เครื่องพ่นไฟ C I B unigas Low NOx Class 2 IDEA NG280-NG550

เครื่องพ่นไฟ C I B unigas Low NOx Class 2 IDEA NG280-NG550 เป็นเครื่องพ่นไฟประเภท Class 2 ที่ออกแบบมาเพื่อใช้งานกับก๊าซธรรมชาติ (NG) เหมาะสำหรับงานอุตสาหกรรมที่ต้องการความร้อนสูง ตัวเครื่องผลิตจากวัสดุคุณภาพดี ทนทาน ใช้งานได้ยาวนาน มาพร้อมระบบควบคุมอิเล็กทรอนิกส์ ช่วยให้ใช้งานง่าย ปลอดภัย และแม่นยำ เครื่องพ่นไฟรุ่นนี้ยังมีเทคโนโลยี Low NOx ช่วยลดมลพิษทางอากาศ

Category
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

เครื่องพ่นไฟ Gas Burners C I B unigas Low NOx Class 2 IDEA NG280-NG550

With the new line IDEA, CIB UNIGAS presents on the market a new conception of modern and functional burners for small and medium appliances.

These burners, which are the most powerful of the range IDEA, are particularly suitable to work on boilers with high back pressures. In particular, NG350 and 400 fit a single “modular” blast tube suitable for standard and extensive uses.
The series IDEA is the final result of big investments in research and new technologies. For example this new range of burners is provided with a linear and proportional system of supply between gas flow rate and angle of the butterfly valve, to ensure a smooth and regular combustion. The burner, in all versions, are “friendly user”. There are plugs which can be easily connected to the feeding line, all mechanical components are mounted on a plate which can be quickly taken off for maintenance. The head is adjustable through a graduated screw. The gas train can be mounted either on the right side or on the left side.



Burner type Model Power [min, kW] Power [max, kW] Gas flow [min, Smᶾ/h] Gas flow [max, Smᶾ/h] Gas pressure [max, mbar] Voltage [V] Phases / frequency [Hz] Total power [kW] Fan motor [kW] Power supply [aux, kW] Protection class IP
NG280 M-.TN.S.xx.A.0.25 95 300 10.1 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.TN.L.xx.A.0.25 95 300 10.1 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.TN.S.xx.A.0.32 95 300 10.1 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.TN.L.xx.A.0.32 95 300 10.1 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.TN.S.xx.A.0.40 95 300 10.1 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.TN.L.xx.A.0.40 95 300 10.1 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.TN.S.xx.A.1.25 95 300 10.1 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.TN.L.xx.A.1.25 95 300 10.1 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.TN.S.xx.A.1.32 95 300 10.1 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.TN.L.xx.A.1.32 95 300 10.1 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.TN.S.xx.A.1.40 95 300 10.1 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.TN.L.xx.A.1.40 95 300 10.1 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.AB.S.xx.A.0.25 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.AB.L.xx.A.0.25 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.PR.L.xx.A.0.25 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.PR.S.xx.A.0.32 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.AB.S.xx.A.0.32 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.AB.L.xx.A.0.32 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.AB.S.xx.A.0.40 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.AB.L.xx.A.0.40 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.AB.S.xx.A.1.25 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.AB.L.xx.A.1.25 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.AB.S.xx.A.1.32 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.AB.L.xx.A.1.32 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.AB.S.xx.A.1.40 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.AB.L.xx.A.1.40 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.PR.S.xx.A.0.25 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.PR.L.xx.A.0.32 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.PR.S.xx.A.0.40 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.PR.L.xx.A.0.40 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.PR.S.xx.A.1.25 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.PR.L.xx.A.1.25 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.PR.S.xx.A.1.32 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.PR.L.xx.A.1.32 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.PR.S.xx.A.1.40 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.PR.L.xx.A.1.40 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.MD.S.xx.A.0.25 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.MD.L.xx.A.0.25 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.MD.S.xx.A.0.32 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.MD.L.xx.A.0.32 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.MD.S.xx.A.0.40 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.MD.L.xx.A.0.40 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.MD.S.xx.A.1.25 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.MD.L.xx.A.1.25 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.MD.S.xx.A.1.32 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.MD.L.xx.A.1.32 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.MD.S.xx.A.1.40 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.MD.L.xx.A.1.40 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.PR.S.xx.A.1.25.EA 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.PR.L.xx.A.1.25.EA 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.PR.S.xx.A.1.32.EA 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.PR.L.xx.A.1.32.EA 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.PR.S.xx.A.1.40.EA 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40
NG280 M-.PR.L.xx.A.1.40.EA 65 300 6.9 32 360 230 1Nac 50 0.55 0.25 0.3 IP40



Burner type Model Power [min, kW] Power [max, kW] Gas flow [min, Smᶾ/h] Gas flow [max, Smᶾ/h] Gas pressure [max, mbar] Voltage [V] Phases / frequency [Hz] Total power [kW] Fan motor [kW] Power supply [aux, kW] Protection class IP
NG350 M-.TN.M.xx.A.0.25 115 330 12.2 35 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG350 M-.TN.M.xx.A.0.32 115 330 12.2 35 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG350 M-.TN.M.xx.A.0.40 115 330 12.2 35 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG350 M-.TN.M.xx.A.1.25 115 330 12.2 35 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG350 M-.TN.M.xx.A.1.32 115 330 12.2 35 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG350 M-.TN.M.xx.A.1.40 115 330 12.2 35 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG350 M-.PR.M.xx.A.0.25 80 330 8.5 35 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG350 M-.PR.M.xx.A.0.32 80 330 8.5 35 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG350 M-.PR.M.xx.A.0.40 80 330 8.5 35 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG350 M-.PR.M.xx.A.1.25 80 330 8.5 35 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG350 M-.PR.M.xx.A.1.32 80 330 8.5 35 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG350 M-.PR.M.xx.A.1.40 80 330 8.5 35 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG350 M-.MD.M.xx.A.0.25 80 330 8.5 35 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG350 M-.MD.M.xx.A.0.32 80 330 8.5 35 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG350 M-.MD.M.xx.A.0.40 80 330 8.5 35 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG350 M-.MD.M.xx.A.1.25 80 330 8.5 35 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG350 M-.MD.M.xx.A.1.32 80 330 8.5 35 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG350 M-.MD.M.xx.A.1.40 80 330 8.5 35 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG350 M-.MD.M.xx.A.1.25.EA 80 330 8.5 35 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG350 M-.MD.M.xx.A.1.32.EA 80 330 8.5 35 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG350 M-.MD.M.xx.A.1.40.EA 80 330 8.5 35 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG350 M-.PR.M.xx.A.1.25.EA 80 330 8.5 35 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG350 M-.PR.M.xx.A.1.32.EA 80 330 8.5 35 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG350 M-.PR.M.xx.A.1.40.EA 80 330 8.5 35 360 230 1Nac 50 0.67 0.37 0.3 IP40



Burner type Model Power [min, kW] Power [max, kW] Gas flow [min, Smᶾ/h] Gas flow [max, Smᶾ/h] Gas pressure [max, mbar] Voltage [V] Phases / frequency [Hz] Total power [kW] Fan motor [kW] Power supply [aux, kW] Protection class IP
NG400 M-.TN.M.xx.A.0.25 185 420 19.6 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.TN.M.xx.A.0.32 185 420 19.6 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.TN.M.xx.A.0.40 185 420 19.6 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.TN.M.xx.A.0.50 185 420 19.6 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.TN.M.xx.A.1.25 185 420 19.6 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.TN.M.xx.A.1.32 185 420 19.6 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.TN.M.xx.A.1.40 185 420 19.6 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.TN.M.xx.A.1.50 185 420 19.6 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.PR.M.xx.A.0.25 115 420 12.2 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.PR.M.xx.A.0.32 115 420 12.2 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.PR.M.xx.A.0.40 115 420 12.2 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.PR.M.xx.A.0.50 115 420 12.2 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.PR.M.xx.A.1.25 115 420 12.2 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.PR.M.xx.A.1.32 115 420 12.2 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.PR.M.xx.A.1.40 115 420 12.2 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.PR.M.xx.A.1.50 115 420 12.2 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.MD.M.xx.A.0.25 115 420 12.2 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.MD.M.xx.A.0.32 115 420 12.2 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.MD.M.xx.A.0.40 115 420 12.2 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.MD.M.xx.A.0.50 115 420 12.2 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.MD.M.xx.A.1.25 115 420 12.2 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.MD.M.xx.A.1.32 115 420 12.2 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.MD.M.xx.A.1.40 115 420 12.2 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.MD.M.xx.A.1.50 115 420 12.2 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.PR.M.xx.A.1.25.EA 115 420 12.2 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.PR.M.xx.A.1.32.EA 115 420 12.2 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.PR.M.xx.A.1.40.EA 115 420 12.2 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.PR.M.xx.A.1.50.EA 115 420 12.2 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.MD.M.xx.A.1.25.EA 115 420 12.2 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.MD.M.xx.A.1.32.EA 115 420 12.2 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.MD.M.xx.A.1.40.EA 115 420 12.2 44 360 230 1Nac 50 0.67 0.37 0.3 IP40
NG400 M-.MD.M.xx.A.1.50.EA 115 420 12.2 44 360 230 1Nac 50 0.67 0.37 0.3 IP40



Burner type Model Power [min, kW] Power [max, kW] Gas flow [min, Smᶾ/h] Gas flow [max, Smᶾ/h] Gas pressure [max, mbar] Voltage [V] Phases / frequency [Hz] Total power [kW] Fan motor [kW] Power supply [aux, kW] Protection class IP
NG550 M-.TN.S.xx.A.0.32 245 570 26 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.TN.L.xx.A.0.32 245 570 26 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.TN.S.xx.A.0.40 245 570 26 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.TN.L.xx.A.0.40 245 570 26 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.TN.S.xx.A.0.50 245 570 26 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.TN.L.xx.A.0.50 245 570 26 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.TN.S.xx.A.1.32 245 570 26 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.TN.L.xx.A.1.32 245 570 26 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.TN.S.xx.A.1.40 245 570 26 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.TN.L.xx.A.1.40 245 570 26 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.TN.S.xx.A.1.50 245 570 26 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.TN.L.xx.A.1.50 245 570 26 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.PR.S.xx.A.0.32 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.PR.L.xx.A.0.32 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.PR.S.xx.A.0.40 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.PR.L.xx.A.0.40 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.PR.S.xx.A.0.50 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.PR.L.xx.A.0.50 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.PR.S.xx.A.1.32 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.PR.L.xx.A.1.32 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.PR.S.xx.A.1.40 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.PR.L.xx.A.1.40 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.PR.S.xx.A.1.50 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.PR.L.xx.A.1.50 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.MD.S.xx.A.0.32 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.MD.L.xx.A.0.32 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.MD.S.xx.A.0.40 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.MD.L.xx.A.0.40 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.MD.S.xx.A.0.50 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.MD.L.xx.A.0.50 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.MD.S.xx.A.1.32 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.MD.L.xx.A.1.32 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.MD.S.xx.A.1.40 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.MD.L.xx.A.1.40 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.MD.S.xx.A.1.50 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.MD.L.xx.A.1.50 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.PR.S.xx.A.1.32.EA 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.PR.L.xx.A.1.32.EA 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.PR.S.xx.A.1.40.EA 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.PR.L.xx.A.1.40.EA 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.PR.S.xx.A.1.50.EA 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.PR.L.xx.A.1.50.EA 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.MD.S.xx.A.1.32.EA 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.MD.L.xx.A.1.32.EA 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.MD.S.xx.A.1.40.EA 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.MD.L.xx.A.1.40.EA 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.MD.S.xx.A.1.50.EA 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40
NG550 M-.MD.L.xx.A.1.50.EA 160 570 16.9 60 360 230 1Nac 50 0.92 0.62 0.3 IP40



สินค้าที่เกี่ยวข้อง

รีวิว

ยังไม่มีบทวิจารณ์

มาเป็นคนแรกที่วิจารณ์ “เครื่องพ่นไฟ C I B unigas Low NOx Class 2 IDEA NG280-NG550”

อีเมลของคุณจะไม่แสดงให้คนอื่นเห็น ช่องข้อมูลจำเป็นถูกทำเครื่องหมาย *

ขอใบเสนอราคา/Request a quote

  • Hidden
