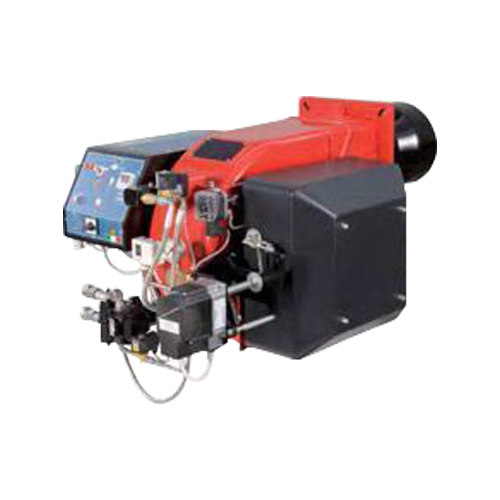

เครื่องพ่นไฟ C I B Unigas CINQUECENTO RG510-RG525 เป็นเครื่องพ่นไฟที่ใช้งานน้ำมันเบา เหมาะสำหรับงานอุตสาหกรรมที่ต้องการความร้อนสูง ตัวเครื่องผลิตจากวัสดุคุณภาพดี ทนทาน ใช้งานได้ยาวนาน มาพร้อมระบบควบคุมอิเล็กทรอนิกส์ ช่วยให้ใช้งานง่าย ปลอดภัย และแม่นยำ
| Burner type | Model | Power [min, kW] | Power [max, kW] | Oil flow [min, kg/h] | Oil flow [max, kg/h] | Voltage [V] | Phases / frequency [Hz] | Total power [kW] | Fan motor [kW] | Pump motor [kW] | Power supply [aux, kW] | Protection class IP |
| RG510 | G-.PR.S.xx.A | 1314 | 3953 | 111 | 333 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| RG510 | G-.PR.L.xx.A | 1314 | 3953 | 111 | 333 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| RG510 | G-.MD.S.xx.A | 1314 | 3953 | 111 | 333 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| RG510 | G-.MD.L.xx.A | 1314 | 3953 | 111 | 333 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| RG510 | G-.PR.S.xx.A.EA | 1314 | 3953 | 111 | 333 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| RG510 | G-.PR.L.xx.A.EA | 1314 | 3953 | 111 | 333 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| RG510 | G-.MD.S.xx.A.EA | 1314 | 3953 | 111 | 333 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| RG510 | G-.MD.L.xx.A.EA | 1314 | 3953 | 111 | 333 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| RG510 | G-.MD.S.xx.A.ES | 1314 | 3953 | 111 | 333 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| RG510 | G-.MD.L.xx.A.ES | 1314 | 3953 | 111 | 333 | 400 | 3Nac 50 | 9.1 | 7.5 | 1.1 | 0.5 | IP40 |
| RG515 | G-.PR.S.xx.A | 1628 | 4884 | 137 | 412 | 400 | 3Nac 50 | 13 | 11 | 1.5 | 0.5 | IP40 |
| RG515 | G-.PR.L.xx.A | 1628 | 4884 | 137 | 412 | 400 | 3Nac 50 | 13 | 11 | 1.5 | 0.5 | IP40 |
| RG515 | G-.MD.S.xx.A | 1628 | 4884 | 137 | 412 | 400 | 3Nac 50 | 13 | 11 | 1.5 | 0.5 | IP40 |
| RG515 | G-.MD.L.xx.A | 1628 | 4884 | 137 | 412 | 400 | 3Nac 50 | 13 | 11 | 1.5 | 0.5 | IP40 |
| RG515 | G-.PR.S.xx.A.EA | 1628 | 4884 | 137 | 412 | 400 | 3Nac 50 | 13 | 11 | 1.5 | 0.5 | IP40 |
| RG515 | G-.PR.L.xx.A.EA | 1628 | 4884 | 137 | 412 | 400 | 3Nac 50 | 13 | 11 | 1.5 | 0.5 | IP40 |
| RG515 | G-.MD.S.xx.A.EA | 1628 | 4884 | 137 | 412 | 400 | 3Nac 50 | 13 | 11 | 1.5 | 0.5 | IP40 |
| RG515 | G-.MD.L.xx.A.EA | 1628 | 4884 | 137 | 412 | 400 | 3Nac 50 | 13 | 11 | 1.5 | 0.5 | IP40 |
| RG515 | G-.MD.S.xx.A.ES | 1628 | 4884 | 137 | 412 | 400 | 3Nac 50 | 13 | 11 | 1.5 | 0.5 | IP40 |
| RG515 | G-.MD.L.xx.A.ES | 1628 | 4884 | 137 | 412 | 400 | 3Nac 50 | 13 | 11 | 1.5 | 0.5 | IP40 |
| RG520 | G-.PR.S.xx.A | 2326 | 6977 | 196 | 588 | 400 | 3Nac 50 | 17 | 15 | 1.5 | 0.5 | IP40 |
| RG520 | G-.PR.L.xx.A | 2326 | 6977 | 196 | 588 | 400 | 3Nac 50 | 17 | 15 | 1.5 | 0.5 | IP40 |
| RG520 | G-.MD.S.xx.A | 2326 | 6977 | 196 | 588 | 400 | 3Nac 50 | 17 | 15 | 1.5 | 0.5 | IP40 |
| RG520 | G-.MD.L.xx.A | 2326 | 6977 | 196 | 588 | 400 | 3Nac 50 | 17 | 15 | 1.5 | 0.5 | IP40 |
| RG520 | G-.PR.S.xx.A.EA | 2326 | 6977 | 196 | 588 | 400 | 3Nac 50 | 17 | 15 | 1.5 | 0.5 | IP40 |
| RG520 | G-.PR.L.xx.A.EA | 2326 | 6977 | 196 | 588 | 400 | 3Nac 50 | 17 | 15 | 1.5 | 0.5 | IP40 |
| RG520 | G-.MD.S.xx.A.EA | 2326 | 6977 | 196 | 588 | 400 | 3Nac 50 | 17 | 15 | 1.5 | 0.5 | IP40 |
| RG520 | G-.MD.L.xx.A.EA | 2326 | 6977 | 196 | 588 | 400 | 3Nac 50 | 17 | 15 | 1.5 | 0.5 | IP40 |
| RG520 | G-.MD.S.xx.A.ES | 2326 | 6977 | 196 | 588 | 400 | 3Nac 50 | 17 | 15 | 1.5 | 0.5 | IP40 |
| RG520 | G-.MD.L.xx.A.ES | 2326 | 6977 | 196 | 588 | 400 | 3Nac 50 | 17 | 15 | 1.5 | 0.5 | IP40 |
| RG525 | G-.PR.S.xx.A | 2000 | 8000 | 169 | 675 | 400 | 3Nac 50 | 22 | 18.5 | 3 | 0.5 | IP40 |
| RG525 | G-.PR.L.xx.A | 2000 | 8000 | 169 | 675 | 400 | 3Nac 50 | 22 | 18.5 | 3 | 0.5 | IP40 |
| RG525 | G-.MD.S.xx.A | 2000 | 8000 | 169 | 675 | 400 | 3Nac 50 | 22 | 18.5 | 3 | 0.5 | IP40 |
| RG525 | G-.MD.L.xx.A | 2000 | 8000 | 169 | 675 | 400 | 3Nac 50 | 22 | 18.5 | 3 | 0.5 | IP40 |
| RG525 | G-.PR.S.xx.A.EA | 2000 | 8000 | 169 | 675 | 400 | 3Nac 50 | 22 | 18.5 | 3 | 0.5 | IP40 |
| RG525 | G-.PR.L.xx.A.EA | 2000 | 8000 | 169 | 675 | 400 | 3Nac 50 | 22 | 18.5 | 3 | 0.5 | IP40 |
| RG525 | G-.MD.S.xx.A.EA | 2000 | 8000 | 169 | 675 | 400 | 3Nac 50 | 22 | 18.5 | 3 | 0.5 | IP40 |
| RG525 | G-.MD.L.xx.A.EA | 2000 | 8000 | 169 | 675 | 400 | 3Nac 50 | 22 | 18.5 | 3 | 0.5 | IP40 |
| RG525 | G-.MD.S.xx.A.ES | 2000 | 8000 | 169 | 675 | 400 | 3Nac 50 | 22 | 18.5 | 3 | 0.5 | IP40 |
| RG525 | G-.MD.L.xx.A.ES | 2000 | 8000 | 169 | 675 | 400 | 3Nac 50 | 22 | 18.5 | 3 | 0.5 | IP40 |
