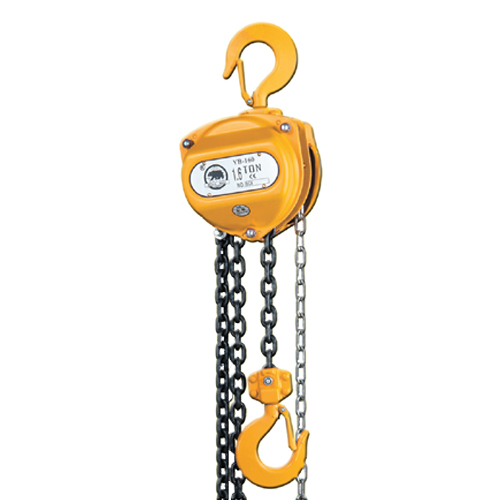

รอกโซ่มือสาว BLACK BEAR YB Series เป็นอุปกรณ์ช่วยยกของที่มีน้ำหนัก เหมาะแก่การใช้งานทั่วไป
Our hand chain hoists are cataloged from ½ ton through 10 ton capacity. These also are available with overload devices. For those larger capacity applications, we will gladly quote units through 60 Ton capacity.
Model | Capacity (ton) | Std Lift (FT) | Load Chain | Hand Chain (Inch) | Headroom | Pound of Pull Req’d (Lbs) | N.W. | |
Dia x pitch (mm) | No of falls | Inch | (Lbs) | |||||
YB-050 | 0.5 | 10 | 5×15 | 1 | 5×23.6 | 10.8 | 60 | 19.8 |
YB-100 | 1 | 6.3×19 | 1 | 11.8 | 70 | 25.2 | ||
YB-160 | 1.6 | 7×21 | 1 | 14.77 | 84 | 40 | ||
YB-200 | 2 | 8×24 | 1 | 14.77 | 88 | 46.3 | ||
YB-300 | 3 | 7.1×21 | 2 | 20.88 | 105 | 53 | ||
YB-320 | 3.2 | 10×30 | 1 | 21.06 | 99 | 66 | ||
YB-500 | 5 | 10×30 | 2 | 26.6 | 84 | 99 | ||
YB-750 | 7.5 | 10×30 | 3 | 31.9 | 88 | 185 | ||
YB-1000 | 10 | 10×30 | 4 | 34.28 | 93 | 209 |
