รอกโซ่มือสาว NICHI H-50A Series

Name: รอกโซ่มือสาว NICHI H-50A Series - บริษัท ย่งฮง (ประเทศไทย) จำกัด
Brand: NITCHI
Rating: 5.00 (1 reviews)

Category รอกโซ่มือสาว Tags รอก, รอก nichi, รอกโซ่, รอกโซ่ nichi, รอกโซ่มือสาว, รอกโซ่มือสาว nichi

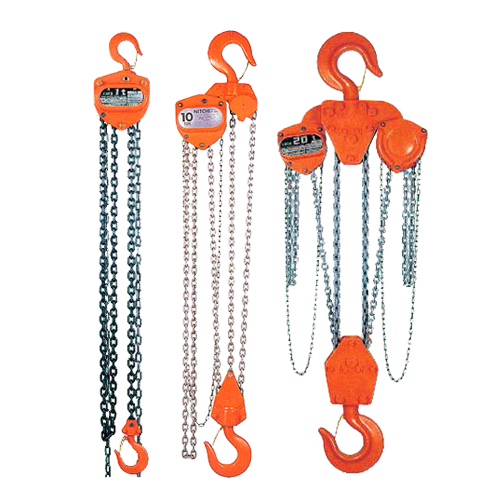

รอกโซ่มือสาว NITCHI H-50A Series

Features

Tough and dependable performance despite its small size and light weight.
Easy-to-use chain hoists that easily lift and lower loads.
Tough load chains offer dependable performance for a safe work environment.
Highly durable brakes and dual-pawl construction for safety and peace of mind on the job.

Item no.	Rated load (t)	Standard lift (m)	Pulling effort (N)	Min. headroom G (mm)	Net weight (kg)	Test load (t)
HH5005A	0.5	2.5	206	260	8	0.75
HH5010A	1		235	300	10.5	1.5
HH5015A	1.6		289	345	15	2.4
HH5020A	2	3	329	380	21	3
HH5030A	3.2		373	435	30.5	4.8
HH5050A	5		353	575	35	7.5
HH5100A	10	3.5	422	790	76	12.5
HH5150A	16		461	1,040	155	20
HH5200A	20		441×2	1,080	250	25
HH5250A	25		431×2	1,100	320	31.3
HH5300A	32		461×2	1,470	440	40
HH5400A	40		451×2	1,700	650	50
HH5500A	50		461×2	1,820	850	62.5

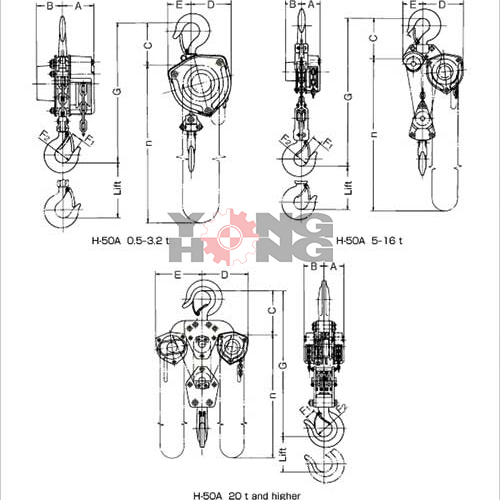

Item no.	External dimensions (mm)
Item no.	A	B	C	D	E	F1	F2	n
HH5005A	82	56	100	90	48	24	36	2500
HH5010A	84	66	110	100	59	29	43	2500
HH5015A	91	77	120	115	69	33	48	2500
HH5020A	99	88	125	132	82	35	52	3000
HH5030A	106	94	140	160	94	40	60	3000
HH5050A	91	77	200	205	94	47	68	3100
HH5100A	106	94	260	283	122	68	95	3800
HH5150A	106	94	350	340	212	75	105	4000
HH5200A	153	153	345	390	390	79	125	4000
HH5250A	183	183	345	390	390	79	125	4000
HH5300A	213	213	435	400	400	95	135	4300
HH5400A	255	255	530			105	165	4600
HH5500A	328	328	590			115	180	4600

Notes:

Specifications are subject to change for improvements without notice.
The figures for test load are the mass of the loads used in performance tests prescribed under JIS B8802.

Manual Chain hoists NITCHI HGB-50A

Features

Geared trolley and chain hoist are connected with a dedicated fixture, allowing efficient use of the cradle.
Trolley width can be adjusted to one of three different sizes by changing the collar. (Two sizes for the 10 t model.)
The wheels on models up to 5 t are made so that they can run along either I-beams or H-beams.

Specifications for Heavy-Duty Geared Trolley Chain Hoist HGB-50A

Item no.	Rated load (t)	Standard lift (m)	Min.	Trolley rail (I-beam) (mm)	Min. curve	Net weight (kg)	Test load (t)
			headroom G (mm)	a×b×t1×t2	radius (mm)
HGB5005A	0.5	2.5	245	125×75×5.5×9.5	800	17	0.75
				180×100×6×10
				250×125×7.5×12.5
HGB5010A	1		285	150×75×5.5×9.5	1,000	22	1.5
				180×100×6×10
HGB5015A	1.6		340	250×125×7.5×12.5	1,100	29	2.4
HGB5020A	2	3	375	200×100×7×10	1,200	43	3
				250×125×7.5×12.5
				300×150×8×13
HGB5030A	3.2		415	200×100×7×10	1,500	61	4.8
				250×125×10×19
				300×150×11.5×22
HGB5050A	5		555	250×125×10×19		80	7.5
				300×150×11.5×22
				450×175×11×20
HGB5100A	10	3.5	710	400×150×12.5×25	3,000	175	12.5
				450×175×13×26

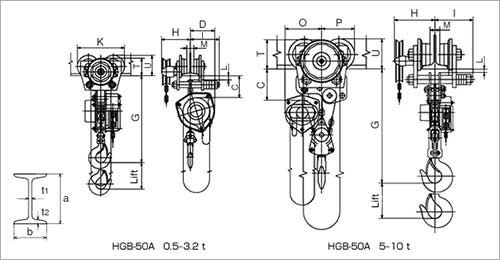

Item no.	External dimensions (mm)
	C	D	H	I	K	L	M	T	U	O	P
HGB5005A	90	90	b/2	168	195	23-t2	b-43	96+t2	72+t2	–	–
			73	-b/2
HGB5010A	60	100	b/2	168	206	25-t2	b-42	72+t2	78+t2	–	–
			98	-b/2
HGB5015A		115		174	221	29-t2	b-41		85+t2	–	–
				-b/2
HGB5020A	110	132	b/2	203	263	31-t2	b-63	115+t2	102+t2	–	–
			108	-b/2
HGB5030A		160		208	306	28-t2		119+t2	126+t2	–	–
				-b/2
HGB5050A	125	–	b/2	253	–	37-t2	b-76	128+t2	132+t2	200	165
			141	-b/2
HGB5100A	185	–	b/2	190	–	42-t2	b-84	161+t2	175+t2	278	210
			195

Notes:

Specifications are subject to change for improvements without notice.
For hoist items, see the specifications for the H-50A.
The figures for test load are the mass of the loads used in performance tests prescribed under JIS B8802.

Manual Chain Hoists NITCHI HPB-50A

Features

Plain trolley and chain hoist are connected with a dedicated fixture, allowing efficient use of the cradle.
Trolley width can be adjusted to one of three different sizes by changing the collar.
The wheels are made so that they can run along either I-beams or H-beams.

Specifications for Heavy-Duty Plain Trolley Chain Hoist HPB-50A

Item no.	Rated load (t)	Standard lift (m)	Min. headroom G (mm)	Trolley rail (I-beam) (mm) a×b×t1×t2	Min. curve radius (mm)	Net weight (kg)	Test load (t)
HPB5005A	0.5	2.5	245	125×75×5.5×9.5	800	14	0.75
				180×100×6×10
				250×125×7.5×12.5
HPB5010A	1		285	150×75×5.5×9.5	1,000	18	1.5
				180×100×6×10
HPB5015A	1.6		340	250×125×7.5×12.5	1,100	25	2.4
HPB5020A	2	3	375	200×100×7×10	1,200	37	3
				250×125×7.5×12.5
				300×150×8×10
HPB5030A	3.2		415	200×100×7×10	1,500	55	4.8
				250×125×10×19
				300×150×11.5×22
HPB5050A	5		555	250×125×10×19		73	7.5
				300×150×11.5×22
				450×175×11×20

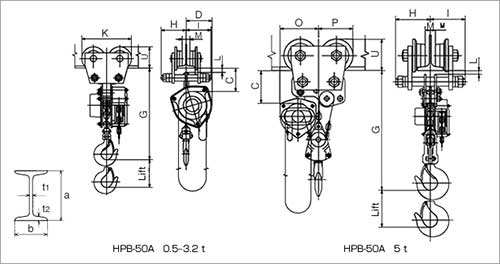

Item no.	External dimensions (mm)
Item no.	C	D	H	I	K	L	M	U	O	P
HPB5005A	90	90	93	105	195	23-t2	b-43	72+t2	–	–
HPB5010A	60	100	95	103	206	25-t2	b-42	78+t2	–	–
HPB5015A	60	115	112	112	221	29-t2	b-41	85+t2	–	–
HPB5020A	110	132	128	128	262	31-t2	b-63	102+t2	–	–
HPB5030A	110	160	133	133	306	28-t2	b-63	126+t2	–	–
HPB5050A	125	–	166	166	–	37-t2	b-76	132+t2	200	165

Notes:

Specifications are subject to change for improvements without notice.
For hoist items, see the specifications for the H-50A.
The figures for test load are the mass of the loads used in performance tests prescribed under JIS B8802.
