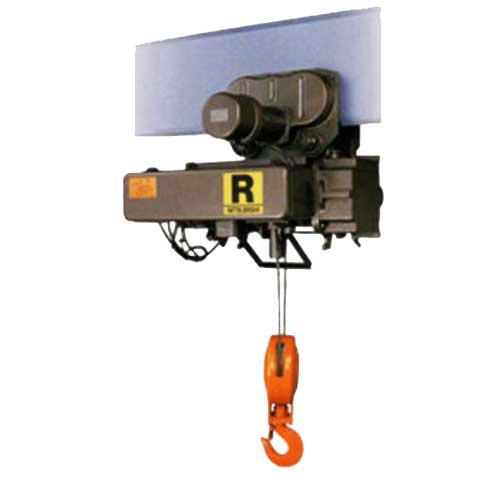

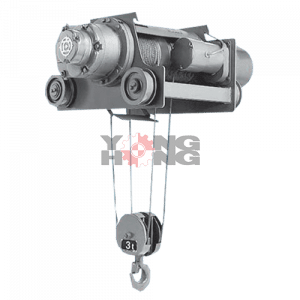

รอกสลิงไฟฟ้า Mitsubishi R series รอกสลิงไฟฟ้าคุณภาพสูงนำเข้าจากประเทศญี่ปุ่น มีทั้งแบบ Monorail type, Lowhead type,Doublerail type รองรับน้ำหนักยกตั้งแต่ 1-3 ตัน ความยาวสลิงยก 6,12 เมตร
| Type | Lifting Capacity | Loadlifting height (m) | Wire rope | Hoisting | Travelling | ||||||||||||||||||||||
| Mono rail low hearoom | Double Rail | ||||||||||||||||||||||||||
| t | Low | High | 2falls (stationary) | 4falls (Double rail low-headroom) | Ropre specifications | Speed (m/min) | motor | Speed (m/min) | motor | Speed (m/min) | motor | ||||||||||||||||
| Output (kW) | Rate Curent | Poles | Output (kW) | Rate Curent | Poles | Output (kW) | Rate Cureent | Poles | |||||||||||||||||||
| 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | ||||||||||
| R | 1 | 6 | 12 | Ø8 | Ø6.3 | 6xW(19) B Class JIS -G3525 | 0.112 (6.7) | 0.133 (8) | 1.2 | 1.4 | 7.4 | 7.9 | 4 | 0.35 (21) | 0.417 (25) | 0.22 | 0.26 | 1.6 | 1.5 | 4 | – | – | – | – | – | – | – |
| 2 | Ø10 | Ø8 | 6xFi (29) B Class JIS-G3525 | 0.1 (6) | 0.12 (7.2) | 2.2 | 2.6 | 13.1 | 13.2 | 0.5 | 0.6 | 3.2 | 3.1 | – | – | – | – | – | – | – | |||||||
| 2.8 | Ø12.5 | Ø9 | 3 | 3.6 | 19 | 19.4 | 0.35 (21) | 0.417 (25) | 0.5 | 0.6 | 3.2 | 3.1 | 4 | ||||||||||||||
| 3 | Ø12.5 | Ø9 | 3.2 | 3.8 | |||||||||||||||||||||||
