รอกโซ่มือโยก VITAL NICE LEVER NR2 (0.25t-0.5t)

รอกโซ่มือโยก VITAL NICE LEVER NR2 (0.25t-0.5t) มีความแข็งแรงทนทานและใช้งานได้ยาวนาน

Facebook
Twitter
Email
Print

รอกโซ่มือโยก VITAL NICE LEVER NR2 (0.25t-0.5t)

Nice Lever offers following exceptional features

1.Automatic switching to free pulley mode.

Simply remove the load from the bottom hook and pull the chain to automatically switch to free pulley mode. The winch automatically switches back to normal mode when a load is placed on the bottom hook. Automatic switching greatly improves work efficiency.

2.Easy maintenance.

The free pulley mechanism has only a few parts, making disassembly and repair a quick and easy process.

3.Plated chain.

The winch chain is tough-pitch plated to prevent rusting and ensure continuous smooth operation. Lifting Lowering Fastening Pulling.



Product Reliability(The Vital Policy)

  • All Vital Nice Levers use optimum, high quality material for the chain, hook, press and other sections, and are manufactured using the lates processing technologies.
  • We carefully check each and every product before shipping.



Differences that make a difference!

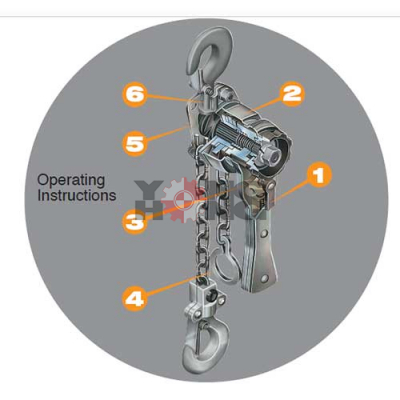

1.Automatic Free Pulley Snapback

Just turn the switching lever to neutral (N) to put the winch in automatic free pulley mode, making it possible to easily adjust the chain length. A patented mechanism means you don’t have to keep your hand on the lever while the winch is in free pulley mode.

2.Completely Sealed Break Unit

With conventional systems, there is the danger of something hitting the brake lever and causing the load to drop. This can never happen with our completely sealed brake unit, not even rain and dust can get into the unit.

3.The Switching Unit Is Sealed inside the Lever Section

With the exception of the switching lever, all parts of the switching unit are sealed inside the lever section, completely out of sight, so dirt and dust can not get into the switching unit.

4.Steel Plates on the Chain Ends

The chain ends have symmetrical pear-shaped steel plates that resist bending even when overloaded, preventing dangerous chain slippage.

5.Sealed Body

The sealed body prevents rain and dirt from entering the which mechanism, ensuring smooth chain travel and an easy to hold design.

6.Easy Catch Hook

The end of the hook is directly connected to the winch body so that it does

not move. This makes it possible to attach the hook with one hand. elimnating the need to hold the hook and winch separately. Movable Hook



001    002



Model Number NR2-03 NR2-05
Capacity (t) 0.25 0.5
Standard Lift (m) 1 1.5
Net Weight (Kg) 1.9 3.5
Min.Distance
between Hooks
(mm) 230 260
Pull Required to
Lift Full Load
(kg) 30 34
(N) 294 333
chain thickness (mm) 4 5

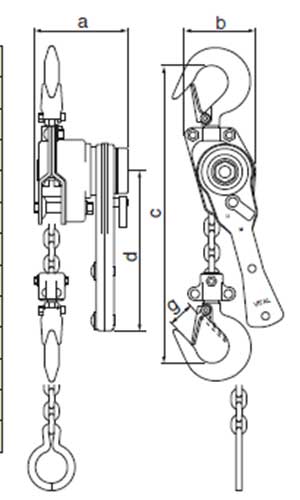

DIMENSION (mm) 85 108
              b (mm) 65 82
              c (mm) 230 260
             d (mm) 151.5 267
             g (mm) 24 27



003
