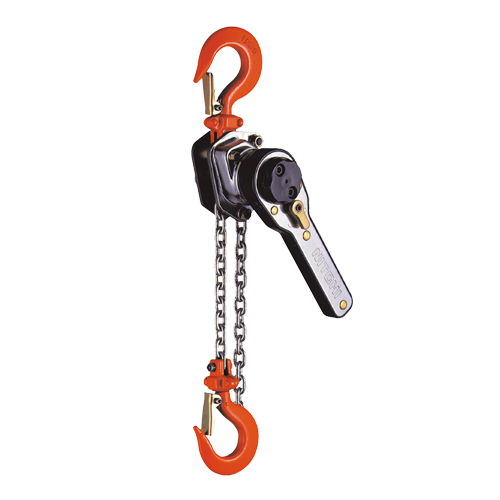

รอกโซ่มือโยก Lever Hoists NITCHI RBP1 Series
Capable of accommodating vertical, horizontal, and even diagonal load hoisting, RBP1 Series promises high work efficiency at transportation, construction, and civil engineering sites where speed, flexibility, and safety are the crucial elements.
FEATURES
- Compact and lightweight
This series is made compact and lightweight for easy transportation. - Auto lock mechanism
Renowned for its reliability, the auto lock mechanism automatically activates the brake as soon as the load is engaged for improved convenience and safety.
Specifications for Lever Hoist RBP1
| Item no. | Rated load (kg) | Standard lift (m) | Test load (kg) | Min. headroom G (mm) | Load chain | Pulling effort (N) | Net weight (kg) | |
| Diameter | No. of falls | |||||||
| RBP10025 | 250 | 1 | 380 | 235 | 4 | 1 | 314 | 1.9 |
| Item no. | External dimensions (mm) | ||||||
| A | B | D | E | F1 | G | n | |
| RBP10025 | 70 | 22 | 46 | 25 | 20 | 235 | 155 |
Notes:
- Specifications are subject to change for improvements without notice
