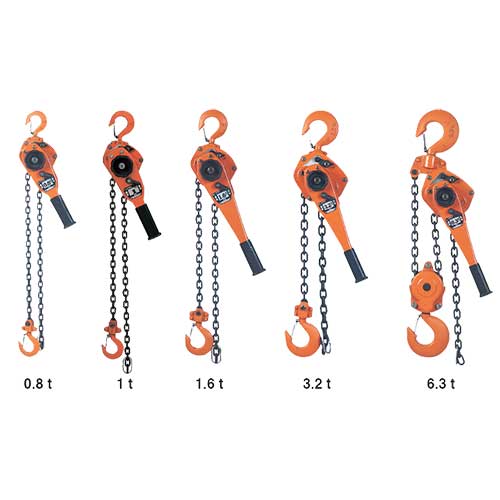

รอกโซ่มือโยก VITAL V LEVER VR2 (08t-6.3t) มีความแข็งแรงทนทานและใช้งานได้ยาวนาน
Idling operation:
1.Depress the retaining pawl all the way down and pull the grip ring towards you.
2.The chain can be adjusted up and down by hand.
3.To terminate the idling, set the change lever in the
Down position.(See diagram at right).
Then, depressing the retaining pawl as far as possible,
push the grip ring gently so as to let the pawl
engage the outer edge of the retaining plate.
Next, grip the grip ring and handle with a single hand and push them while turning
them counterclockwise. The retaining pawl returns to its original position.
Use it for:
| Model Number | NR2-08 | NR2-10 | NR2-15 | NR2-30 | NR2-60 | |
| Capacity | (t) | 0.8 | 1 | 1.6 | 3.2 | 6.3 |
| Standard Lift | (m) | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Net Weight | (Kg) | 6.9 | 7.1 | 9.7 | 16.3 | 26.7 |
| Min.Distance between Hooks |
(mm) | 295 | 310 | 335 | 405 | 550 |
| Pull Required to Lift Full Load |
(kg) | 15 | 20 | 18 | 38 | 39 |
| (N) | 147 | 196 | 177 | 373 | 382 | |
| chain thickness | (mm) | 6.3 | 6.3 | 7.1 | 9 | 9 |
| dimensions | ||||||
| a | (mm) | 148 | 148 | 163.5 | 191 | 191 |
| b | (mm) | 128 | 128 | 148 | 181 | 244 |
| c | (mm) | 295 | 310 | 325 | 395 | 550 |
| d | (mm) | 256 | 256 | 368 | 368 | 368 |
| g | (mm) | 27 | 30 | 34 | 43 | 47 |
