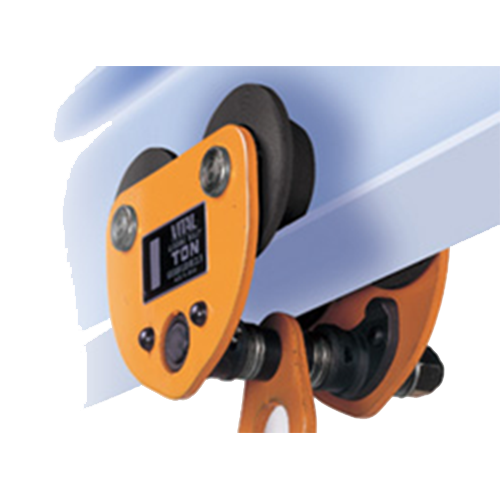

ขาแขวนรอก VITAL A-Type การขนส่งที่แข็งแรงและปลอดภัย สามารถปรับได้อย่างอิสระเพื่อให้เข้ากับขนาดความกว้างของรางที่หลากหลายได้
Strong, safe lateral load transportation. Freely adjusts to a wide-range of rail widths.
| Type | Load Cap. ( t ) |
Compatible Rail Size (mm) | Dimensions (mm) | min. Rotation Radius (mm) |
N/W (kg) |
Model Number |
|||||||||
| Width (W) | Width (H) | ||||||||||||||
| min | max | min | max | a | b | c | dø | eø | f | k | |||||
| Plain Trolley | |||||||||||||||
| AP | ½ | 75 | 125 | 100 | 150 | 207 | 174 | 120 | 45 | 55 | 28.5 | – | 900 | 6.0 | AP-05 |
| 1 | 75 | 125 | 125 | 250 | 207 | 230 | 120 | 45 | 80 | 28.5 | – | 1300 | 10.0 | AP-10 | |
| 2 | 100 | 150 | 150 | 400 | 241 | 271 | 155 | 60 | 100 | 33 | – | 1500 | 18.5 | AP-20 | |
| 3 | 100 | 150 | 180 | 400 | 252 | 311 | 185 | 70 | 113 | 40.5 | – | 2000 | 27.0 | AP-30 | |
| 5 | 125 | 175 | 250 | 450 | 284 | 351 | 220 | 80 | 125 | 42.5 | – | 2600 | 44.0 | AP-50 | |
| 10 | 150 | 175 | 250 | 450 | 284 | 721 | 165 | 63 | 125 | 42.5 | – | – | 96.0 | AP-90 | |
| APD | ½ | 75 | 125 | 100 | 150 | 207 | 196 | 120 | 45 | 55 | 28.5 | – | 900 | 7.0 | APD-05 |
| 1 | 75 | 125 | 12 | 250 | 207 | 253.5 | 120 | 45 | 80 | 28.5 | – | 1300 | 10.8 | APD-10 | |
| 2 | 100 | 150 | 150 | 400 | 241 | 300 | 155 | 60 | 100 | 33 | – | 1500 | 19.5 | APD-20 | |
| 3 | 100 | 150 | 180 | 400 | 252 | 349 | 185 | 70 | 113 | 40.5 | – | 2000 | 30.0 | APD-30 | |
| 5 | 125 | 175 | 250 | 450 | 284 | 395 | 220 | 80 | 125 | 42.5 | – | 2600 | 48.0 | APD-50 | |
| 10 | 150 | 175 | 250 | 450 | 284 | 765 | 165 | 63 | 125 | 42.5 | – | – | 100.0 | APD-90 | |
| Geared Trolley | |||||||||||||||
| AG | 1 | 75 | 125 | 125 | 250 | 207 | 230 | 120 | 45 | 80 | 28.5 | 108 | 1300 | 14.0 | AG-10 |
| 2 | 100 | 150 | 150 | 400 | 241 | 271 | 155 | 60 | 100 | 33 | 109.5 | 1500 | 23.5 | AG-20 | |
| 3 | 100 | 150 | 180 | 400 | 252 | 311 | 185 | 70 | 113 | 40.5 | 113 | 200 | 33.5 | AG-30 | |
| 5 | 125 | 175 | 250 | 450 | 284 | 351 | 220 | 80 | 125 | 42.5 | 113 | 2600 | 53.5 | AG-50 | |
| 10 | 150 | 175 | 250 | 250 | 284 | 721 | 165 | 63 | 125 | 42.5 | 113 | – | 101.0 | AG-90 | |
| AGD | 1 | 75 | 125 | 125 | 250 | 207 | 230 | 120 | 45 | 80 | 28.5 | 108 | 1300 | 15.0 | AGD-10 |
| 2 | 100 | 150 | 150 | 400 | 241 | 271 | 155 | 60 | 100 | 33 | 109.5 | 1500 | 25.0 | AGD-20 | |
| 3 | 100 | 150 | 180 | 400 | 252 | 311 | 185 | 70 | 113 | 40.5 | 113 | 200 | 35.9 | AGD-30 | |
| 5 | 125 | 175 | 250 | 450 | 284 | 351 | 220 | 80 | 125 | 42.5 | 113 | 2600 | 57.6 | AGD-50 | |
| 10 | 150 | 175 | 250 | 250 | 284 | 721 | 165 | 63 | 125 | 42.5 | 113 | – | 105.0 | AGD-90 | |
| Load Capacity (t) |
Washer Combination Category Corresponding to Rail Width (W) (mm) (See drawings below.) | ||||||||
| (min.) A | B | C | D | E | F | G | H | (max.) | |
| ½ | 75 | 81.3 | 87.5 | 93.8 | 100 | 106.3 | 112.5 | 118.8 | 125 |
| 1 | 75 | 81.3 | 87.5 | 93.8 | 100 | 106.3 | 112.5 | 118.8 | 125 |
| 2 | 100 | 106.3 | 112.5 | 118.8 | 125 | 131.3 | 137.5 | 143.8 | 150 |
| 3 | 100 | 106.3 | 112.5 | 118.8 | 125 | 131.3 | 137.5 | 143.8 | 150 |
| 5 | 125 | 131.3 | 137.5 | 143.8 | 150 | 156.3 | 162.5 | 168.8 | 175 |
| 10 | 150 | 156.3 | 162.5 | 168.8 | – | – | – | – | 175 |
