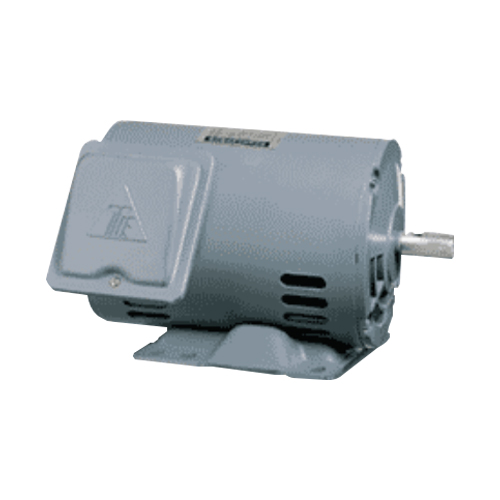

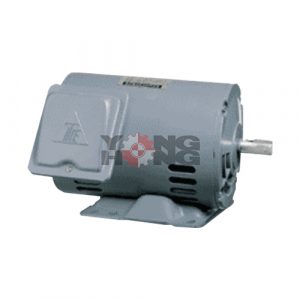

มอเตอร์ Rolled Steel Frame Motors TECO
มอเตอร์ Rolled Steel Frame Motors TECO
มอเตอร์ Rolled Steel Frame Motors TECO
Features:
– Light weight
– Multiple mountings
– Large stocks
| Standard | Mounting | Voltage | Enclosure | Motor type | Description |
| NEMA | Horizontal | LV | TEFC | AEGA | |
| AEGE | EPACT | ||||
| ODP | ASGA | ||||
| ASGANE | |||||
| Vertical | TEFC | AETA | |||
| AETE | EPACT | ||||
| IEC, BS, AS, JIS, JEC, CNS | Horizontal | AEGF | |||
| AEGL | |||||
| ODP | ASGF | ||||
| Vertical | TEFC | AETF | |||
| AETL |
Type Code: AEGA / AETA
Low Voltage Rolled Steel Frame Motors, Design B
Output 1/3 ~ 2HP
Pole (Speed) 2 ~ 6
Voltage 230/460V (usable on 208V at 1.0 SF)
Frequency (Hz) 60
Frame Size A56C ~ C56C
Protection Enclosure TEFC, IP 44
Design Standards: NEMA MG-1, MG-13
Stator insulation: Class F Insulation, B rise SF 1.15.
Test procedure: ANSI/IEEE-112 Method B and full voltage measuring starting performance.
Type Code: ASGA
Low Voltage Rolled Steel Frame Motorse
Output 1/3 ~ 3HP
Pole (Speed) 2 ~ 6
Voltage 230/460V
Frequency (Hz) 60
Frame Size A56~B56
Protection Enclosure IP 22 Open, Drip-Proof
Design Standards: NEMA MG-1, MG-13
Environment: non-hazardous
Stator insulation: Class F Insulation, B rise SF 1.15
Type Code: AEGF
Low Voltage Rolled Steel Frame Motors
Output 1/4 ~ 3 HP
Pole (Speed) 2 ~ 6
Voltage 200 ~460
Frequency (Hz) 50, 60
Frame Size 63 ~ 90
Protection Enclosure IP 44
Type Code: AETF
Low Voltage Rolled Steel Frame Motors
Output 1/4 ~ 3 HP
Pole (Speed) 2 ~ 6
Voltage 200 ~460
Frequency (Hz) 50, 60
Frame Size 63 ~ 90L
Protection Enclosure IP 44
Type Code: ASGANE
Low Voltage Rolled Steel Frame Motors EPACT
Output 1-1/2 ~ 40HP
Pole (Speed) 2 ~ 6
Voltage 230/460V
Frequency (Hz) 60
Frame Size 143T~286TS
Protection Enclosure IP 22 Open, Drip-Proof
Design Standards: NEMA MG-1, MG-13
Environment: non-hazardous
Stator insulation: Class F Insulation, 80¢Jrise at SF 1.15
Type Code: AEGE /AETE
Low Voltage Rolled Steel Frame Motors EPACT, Design B
Output 1 ~ 2HP
Pole (Speed) 2 ~ 6
Voltage 230/460V (usable on 208V at 1.0 SF)
Frequency (Hz) 60
Frame Size 143C ~ 145C
Protection Enclosure TEFC, IP 44
Design Standards: NEMA MG-1, MG-13
Stator insulation: Class F Insulation, B rise SF 1.15.
Test procedure: ANSI/IEEE-112 Method B and full voltage measuring starting performance.
Type Code: AEGL
Standard 3-Phase High Efficiency Induction Motors
Low Voltage Rolled Steel Frame Motors
Output 1/2 ~ 2 HP
Pole (Speed) 2 ~ 6
Voltage 200 ~460
Frequency (Hz) 60
Frame Size 71 ~ 90
Protection Enclosure IP 44
Type Code: AETL
Standard 3-Phase High Efficiency Induction Motors
Low Voltage Rolled Steel Frame Motors
Output 1/2 ~ 2 HP
Pole (Speed) 2 ~ 6
Voltage 200 ~460
Frequency (Hz) 60
Frame Size 71 ~ 90
Protection Enclosure IP 44
Type Code: ASGF
Low Voltage Rolled Steel Frame Motors
Output 1/2 ~ 3 HP
Pole (Speed) 2 ~ 6
Voltage 200 ~460
Frequency (Hz) 50, 60
Frame Size 80 ~ 90L
Protection Enclosure IP 22
