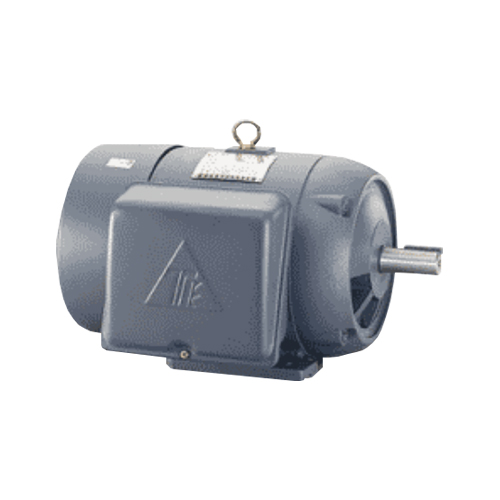

มอเตอร์ Single Phase Motors TECO
Features:
-High Torque Heavy Duty
-Over-sized Ball Bearing and Terminal Box
-Rugged Cast Iron Frame 90S through 132M
-Class F Insulation.
-Zn-Cd Plated Hardware.
-Ground Terminals.
-Condensate Drains.
-Capacitor-Start
-Capacitor Run
| Standard | Mounting | Voltage | Enclosure | Motor | Description |
| type | |||||
| NEMA | Horizontal | LV | TEFC | BEGC | Capacitor Start |
| (rolled steel frame) | |||||
| BECC | Capacitor Start | ||||
| (cast iron frame) | |||||
| BECS | Capacitor Start Capacitor Run(cast iron frame) | ||||
| IEC, BS, AS, JIS, JEC, CNS |
BECY | ||||
| BEGV | Split Phase Start | ||||
| (rolled steel frame) | |||||
| BEGW | Capacitor Start | ||||
| (rolled steel frame) | |||||
| ODP | BDCV | Split Phase Start | |||
| (cast iron frame) | |||||
| BDCW | Capacitor Start | ||||
| (cast iron frame) | |||||
| BDCY | Capacitor Start Capacitor Run (cast iron frame) | ||||
| BSCY | |||||
| BSGV | Split Phase Start | ||||
| (rolled steel frame) | |||||
| BSGW | Capacitor Start | ||||
| (rolled steel frame) |
Type Code: BECY TOP
Single Phase Induction Motors
TEFC Low Voltage Squirrel Cage
Output 1 ~ 10 HP
Pole (Speed) 2, 4
Voltage 110/220V, 220V
Frequency (Hz) 50, 60
Frame Size 90S ~ 132M
Protection Enclosure IP 44
Environment: indoor
Cast Iron Frame and End Bracket.
Stator Insulation: 1 ~ 3HP Class E or B Insulation.
¡@¡@¡@¡@¡@¡@¡@¡@¡@5 ~ 10HP Class F Insulation
Type Code: BDCY/ BSCY TOP
Single Phase Induction Motors
ODP Low Voltage Squirrel Cage
Output 1 ~ 5 HP
Pole (Speed) 2,4
Voltage 110/220V, 220V
Frequency (Hz) 50, 60
Frame Size 90S ~ 112M
Protection Enclosure IP 11 IP 22
Environment: indoor
Type Code: BEGC / BECC /BECS TOP
Single Phase Induction Motors
TEFC High Torque Design for tough applications
Output 1/3 ~ 10 HP
Pole (Speed) 1800 rpm
Voltage 115/230V, 230V
Frequency (Hz) 60
Frame Size 56 ~ 215T
Protection Enclosure IP 44
Stator insulation: Class B, F Insulation, 1.15 SF.
Oversized Ball Bearings
Condensate Drain
Oversized & Gasketed conduit box
Type Code: BSGV / BSGW / BEGV/BEGW/ BDCV / BDCW TOP
Single Phase Induction Motors
Output 1/4 ~ 10HP
Pole (Speed) 2, 4
Voltage 110/110/220V
Frequency (Hz) 50, 60
Frame Size A71 ~ B71 / A71 ~ 90S / A71 ~ B71 /A71 ~ 90 / 90S / 90S
Protection Enclosure IP22 / IP22 / IP44 / IP44 / IP11 / IP11
