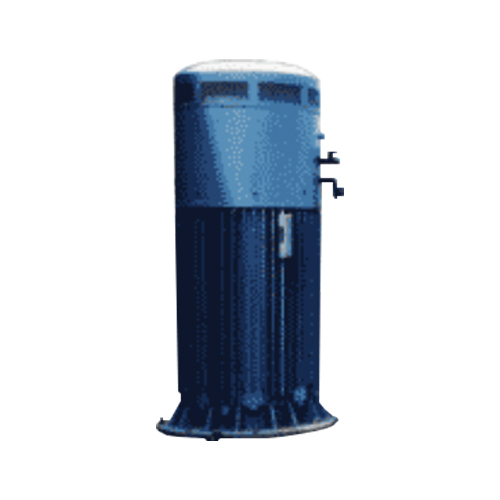

มอเตอร์ Vertical Motors TECO
Standard | Mounting | Voltage | Enclosure | Motor type | Description |
NEMA | Vertical | LV | WPI | AMRCEC | Solid Shaft |
NEMA/IEC | HV | AMRKEC | |||
AMRK | Hollow Shaft | ||||
WPII | ANRK | ||||
TEAAC | AEHC | ||||
LV | AEEH | ||||
WPI | AMRC | ||||
WPII | ANRC | ||||
BS | TEAAC | AEBH |
High Thrust Hollow Shaft Pump Motors
Low Voltage, Vertical type, Squirrel Cage
Output 30 ~ 185 KW
Pole (Speed) 2~ 8
Voltage 380V, 400V, 415V, 440V
Frequency (Hz) 50
Frame Size 250S ~ 315M
Protection Enclosure IPW44
Design Standards: BS 4999, AS 1360, NEMA MG-1, MG-13
Environment: non-hazardous
Stator insulation: Class F Insulation, 80¢J rise at SF 1.0
High Thrust Motors
Vertical type, Squirrel Cage
Output 75 ~ 1000HP
Pole (Speed) 2 ~ 12
Voltage 220V, 380V, 440V
Frequency (Hz) 50, 60
Frame Size 250 ~ 560
Protection Enclosure IP 54
High Thrust Hollow Shaft Pump Motors
Low Voltage, Vertical type, Squirrel Cage
Output 30 ~ 1000 HP
Pole (Speed) 2 ~ 8
Voltage 220V ~ 575V
Frequency (Hz) 50, 60
Frame Size 250 ~ 560
Protection Enclosure IP 22 (ODP), IP 23 (WPI) / IP 24 (WPII)
Design Standards: BS 4999, AS 1360, NEMA MG-1, MG-13
Environment: non-hazardous
Stator insulation: Class F Insulation, Class B, 90¢J rise at SF 1.15
High Thrust Motors
Vertical type, Squirrel Cage
Output 75 ~ 4500 HP
Pole (Speed) 2 ~ 12
Voltage 2200V~6900V
Frequency (Hz) 50, 60
Frame Size 250 ~ 900
Protection Enclosure IP54
High Thrust Motors
Vertical type, Squirrel Cage
Output 75 ~ 10000HP
Pole (Speed) 2 ~ 12
Voltage 2200V ~ 6900V
Frequency (Hz) 50, 60
Frame Size 250 ~ 900
Protection Enclosure IP22 (ODP)¡BIP23(WPI)
High Thrust Motors
Vertical type, Squirrel Cage
Output 224 ~ 7460 KW, 300 ~ 10000HP
Pole (Speed) 2 ~ 12
Voltage 2200V ~ 6900V
Frequency (Hz) 50, 60
Frame Size 355 ~ 900
Protection Enclosure IPW24 (WPII)
High Thrust Solid Shaft Pump Motors
Vertical type, Squirrel Cage
Output 30 ~ 300HP / 200 ~ 4500HP
Pole (Speed) 4 ~ 8 / 4 ~ 16
Voltage 230/460V, 460V, 575V / 2200V ~ 4160V
Frequency (Hz) 60 / 50, 60
Frame Size 364TP ~ 449TP / 400A ~ 710A
Protection Enclosure Drip-proof (NEMA weather-protected type I) /
¡@¡@¡@¡@¡@¡@¡@¡@¡@¡@IP 22, WPI, WPII
Design Standards: NEMA MG-1, MG-13 / IEC, BS, NEMA, JEC
Environment: non-hazardous
Stator insulation: Class B Insulation, 90¢Jrise at SF 1.15 /
Class F Insulation, complying with BS 2757 & IEC 85
