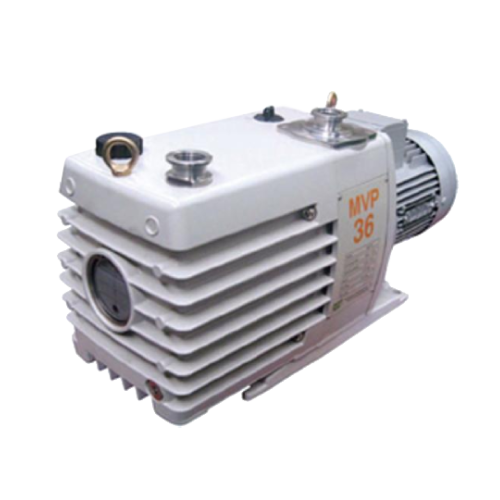

ปั๊มสุญญากาศ WOOSUNG รุ่น MVP เป็นปั๊มสุญญากาศใบพัดแบบหมุนวนแบบสองขั้นตอน (two-stage oil sealed rotary vane) มีความสามารถดูดน้ำได้อย่างรวดเร็วมีประสิทธิภาพสูง เสียงเงียบและสั่นสะเทือนต่ำ บำรุงรักษาง่ายในการเปลี่ยนถ่ายน้ำมัน
WOOSUNG MVP6,MVP12,MVP24,MVP36,MVP60,MVP90
WOOSUNG MVP6,MVP12,MVP24,MVP36,MVP60,MVP90
| Descriptions / Model | UNIT | WOOSUNG MVP6 | WOOSUNG MVP12 | WOOSUNG MVP24 | WOOSUNG MVP36 | WOOSUNG MVP60 | WOOSUNG MVP90 | |
| Displacement speed | 60Hz | m3/h | 6 | 12 | 24 | 36 | 60 | 90 |
| L/Min | 100 | 200 | 400 | 600 | 1000 | 1500 | ||
| 50Hz | m3/h | 5 | 10 | 20 | 30 | 50 | 75 | |
| L/Min | 80 | 170 | 335 | 500 | 830 | 1250 | ||
| Ultimate pressure | Gas ballast C | Torr | 5 x 10-4 | |||||
| Gas ballast I | Torr | 5 x 10-3 | ||||||
| Gas ballast II | Torr | 5 x 10-2 | ||||||
| Water Vapour tolerance | Torr | 40 | 40 | 25 | 25 | 40 | 40 | |
| Oil filling | L | 1.1. | 1.2 | 2 | 2.3 | 4.5 | 6.5 | |
| Inlet port | DN | 25KF | 40KF | |||||
| Outlet port | DN | 25KF | 40KF | |||||
| Motor power | kw | 0.4 | 0.75 | 1.5 | 2.2 | |||
| Rotational speed of pump | 60Hz | R.P.M | 1750 | |||||
| 50Hz | R.P.M | 1450 | ||||||
| Noise level (without gas ballast) | db | 50 | 50 | 52 | 52 | 56 | 56 | |
| Weight | Kg. | 21 | 22.5 | 38 | 41 | 68 | 84 | |
WOOSUNG MVP6,MVP12,MVP24,MVP36,MVP60,MVP90

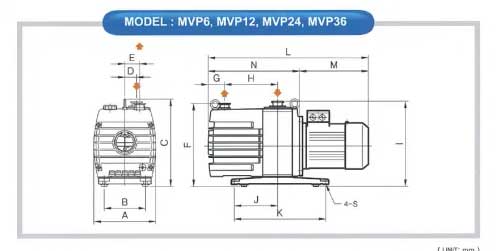

| Model | A | B | C | D | E | F | G | H | I | J | K | N | S | M | L |
| WOOSUNG MVP6 | 170 | 120 | 261 | 24 | 40 | 247 | 45 | 130 | 253 | 94 | 240 | 244 | Ø9 | 210 | 454 |
| WOOSUNG MVP12 | 170 | 120 | 261 | 24 | 40 | 247 | 45 | 155 | 253 | 94 | 240 | 269 | Ø9 | 210 | 479 |
| WOOSUNG MVP24 | 210 | 140 | 297 | 40 | 50 | 282 | 55 | 180 | 288 | 147 | 310 | 310 | Ø12 | 234 | 543 |
| WOOSUNG MVP36 | 210 | 140 | 297 | 40 | 50 | 282 | 58 | 210 | 288 | 147 | 310 | 310 | Ø12 | 234 | 576 |

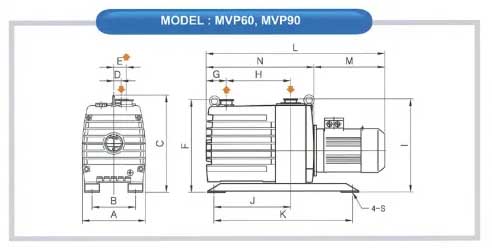

| Model | A | B | C | D | E | F | G | H | I | J | K | N | S | M | L |
| WOOSUNG MVP60 | 250 | 185 | 387 | 30 | 50 | 368 | 80 | 255 | 370 | 305 | 550 | 428 | Ø14 | 281 | 709 |
| WOOSUNG MVP90 | 280 | 185 | 441 | 30 | 50 | 412 | 85 | 295 | 415 | 355 | 600 | 479 | Ø14 | 312 | 791 |
