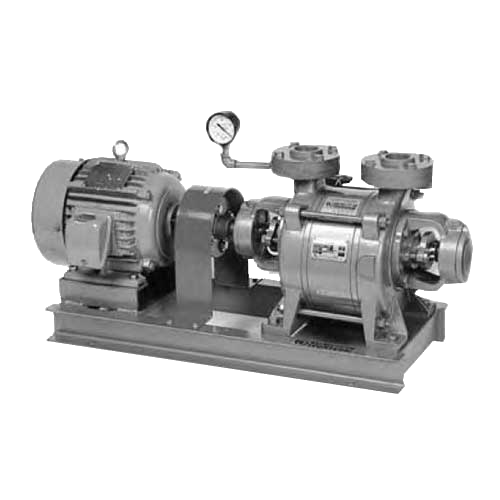

Woosung WWVP Series ปั๊มสูญญากาศแบบใช้น้ำหล่อ (Water Ring Vacuum Pump) สินค้านำเข้าจากประเทศเกาหลี มีให้เลือกใช้งานหลากหลายรุ่น ทั้งแบบปั้ม Single Stage (WWVP-1) และปั้ม Two Stage (WWVP-2)
WOOSUNG WWVP-100,WWVP-170,WWVP-300,WWVP-400,WWVP-500,WWVP-700,WWVP-900,WWVP-1100,WWVP-1500,WWVP-1800,WWVP-2500,WWVP-3400
WOOSUNG WWVP-100,WWVP-170,WWVP-300,WWVP-400,WWVP-500,WWVP-700,WWVP-900,WWVP-1100,WWVP-1500,WWVP-1800,WWVP-2500,WWVP-3400
Single Stage Water Ring Pump
Model | Displacement Speed | Ultimate Pressure | Rotational Speed | Motor Power | Cooling Water Capacity | Inlet Port | Outlet Port |
(l/min) | Torr (pa) | (R.P.M) | (kw) | (l/min) | (mm) | (mm) | |
WOOSUNG WWVP-1-100 | 1000 | 50(6.7×103) | 1750 | 2.2 | 7 | 40A | 40A |
WOOSUNG WWVP-1-170 | 1700 | 50(6.7×103) | 1750 | 3.7 | 9 | 40A | 40A |
WOOSUNG WWVP-1-300 | 3000 | 50(6.7×103) | 1750 | 5.5 | 10 | 50A | 50A |
WOOSUNG WWVP-1-400 | 4000 | 50(6.7×103) | 1750 | 7.5 | 14 | 50A | 50A |
WOOSUNG WWVP-1-500 | 5000 | 50(6.7×103) | 1750 | 11 | 20 | 80A | 80A |
WOOSUNG WWVP-1-700 | 7000 | 50(6.7×103) | 1750 | 15 | 30 | 80A | 80A |
WOOSUNG WWVP-1-900 | 9000 | 50(6.7×103) | 1750 | 19 | 34 | 80A | 80A |
WOOSUNG WWVP-1-1100 | 11000 | 50(6.7×103) | 1750 | 22 | 38 | 125A | 125A |
WOOSUNG WWVP-1-1500 | 15000 | 50(6.7×103) | 1750 | 30 | 42 | 125A | 125A |
WOOSUNG WWVP-1-1800 | 18000 | 50(6.7×103) | 1150 | 37(6P) | 60 | 150A | 150A |
WOOSUNG WWVP-1-2500 | 25000 | 50(6.7×103) | 880 | 55(8P) | 85 | 200A | 200A |
WOOSUNG WWVP-1-3400 | 34000 | 50(6.7×103) | 1150 | 75(6P) | 95 | 200A | 200A |
Two Stage Water Ring Pump
Model | Displacement Speed | Ultimate Pressure | Rotational Speed | Motor Power | Cooling Water Capacity | Inlet Port | Outlet Port |
(l/min) | Torr (pa) | (R.P.M) | (kw) | (l/min) | (mm) | (mm) | |
WOOSUNG WWVP-2-045 | 450 | 17(2.3×103) | 1750 | 1.5 (2P) | 6 | 25A | 25A |
WOOSUNG WWVP-2-085 | 850 | 17(2.3×103) | 1750 | 2.2 | 7 | 40A | 40A |
WOOSUNG WWVP-2-150 | 1500 | 17(2.3×103) | 1750 | 3.7 | 9 | 40A | 40A |
WOOSUNG WWVP-2-250 | 2500 | 17(2.3×103) | 1750 | 5.5 | 10 | 40A | 40A |
WOOSUNG WWVP-2-300 | 3000 | 17(2.3×103) | 1750 | 7.5 | 14 | 40A | 40A |
WOOSUNG WWVP-2-400 | 4000 | 17(2.3×103) | 1750 | 11 | 20 | 50A | 50A |
WOOSUNG WWVP-2-550 | 5500 | 17(2.3×103) | 1750 | 15 | 30 | 50A | 50A |
WOOSUNG WWVP-2-700 | 7000 | 17(2.3×103) | 1750 | 18.5 | 34 | 50A | 50A |
WOOSUNGWWVP-800 | 8000 | 17(2.3×103) | 1750 | 22 | 39 | 80A | 80A |
WOOSUNG WWVP-2-1000 | 10000 | 17(2.3×103) | 1750 | 30 | 42 | 80A | 80A |
WOOSUNG WWVP-2-1200 | 12000 | 17(2.3×103) | 1150 | 37(6P) | 60 | 80A | 80A |
WOOSUNG WWVP-2-2000 | 20000 | 17(2.3×103) | 880 | 55(8P) | 85 | 100A | 100A |
WOOSUNG WWVP-2-2800 | 28000 | 17(2.3×103) | 1150 | 75(6P) | 95 | 100A | 100A |
