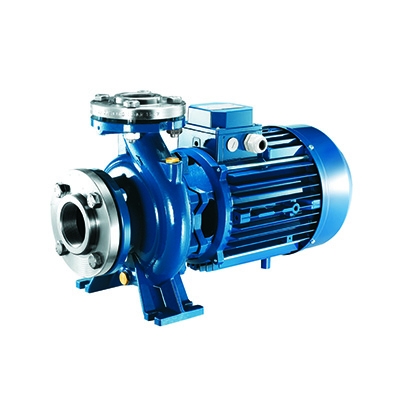

ปั๊มน้ำหอยโข่ง FORAS MN 400-500
ปั๊มหอยโข่ง Foras รุ่น MN ตัวปั๊มผลิตจากเหล็กหล่อคุณภาพสูง ใบพัดผลิตจากทองเหลืองป้องกันสนิม เพลาสแตนเลส sus304 ทนต่อการกัดกร่อน
Facebook
Twitter
Email
Print
ปั๊มน้ำหอยโข่ง FORAS MN 400-500
การประยุกต์ใช้งาน
- เหมาะกับงานส่งน้ำขึ้นอาคาร บ้านพักอาศัย
- เหมาะกับระบบน้ำทางการเกษตรอุตสาหกรรม
- เหมาะกับงานสูบจ่ายน้ำอเนกประสงค์ทั่วไป
คุณสมบัติ
- ปั๊มหอยโข่งอุตสาหกรรม หน้าแปลนมาตรฐาน EN727
- ขนาดมอเตอร์ 2-10 แรงม้าฃ
- ขนาดท่อ 2นิ้ว – 4นิ้ว
- มีทั้งรุ่นแรงดันส่งปานกลางจนถึงสูง
- ปริมาณน้ำปานกลางและน้ำมาก
ระบบไฟ
- ไฟสองสาย 1 เฟส 220V และ 3 เฟส 380V
FORAS MN 400-500 Centrifugal Pump Specifications
| CARATTERISTICHE COSTRUTTIVE / CONSTRUCTION FEATURES CARACTERISTICAS CONSTRUCTIVAS / CARACTERISTIQUES D’EXECUTION |
|
| Corpo pompa | ghisa |
| Pump body | cast iron |
| Cuerpo bomba | fundicion |
| Corps de pompe | fonte |
| Supporto motore | ghisa |
| Motor bracket | cast iron |
| Soporte motor | fundicion |
| Support moteur | fonte |
| Girante | ghisa o bronzo |
| Impeller | cast iron or bronzo |
| Rodete | fundicion o bronzo |
| Turbine | fonte ou bronzo |
| Tenuta meccanica | ceramica-grafite |
| Mechanical seal | ceramic-graphite |
| Sello mecanico | ceramica-grafito |
| Garniture mecanique | ceramique-graphite |
| Albero motore | aciero AISI 304 |
| Motor shaft | stainless steel AISI 304 |
| Eje motor | acero AISI 304 |
| Arbre moteur | acier AISI 304 |
| Temperatura del liquido | |
| Liquid temperature | -10 ÷ +90 °C |
| Temperatura del liquido | |
| Temperature du liquide | |
| Pressione di esercizio | |
| Operating pressure | max 10 bar |
| Presion de trabajo | |
| Pression de fonctionnement | |
| MOTORE / MOTOR / MOTOR / MOTEUR | |
| Motore 2 poli a induzione | 3- 230/400V-50Hz |
| 2 pole induction motor | 1-230V-50Hz |
| Motor de 2 polos a inducción | |
| Moteur a induction a 2 poles | |
| Classe di isolamento | |
| Insulation class | F |
| Clase de aislamiento | |
| Classe d’isolation | |
| Grado di protezione | |
| Protection degree | IP55 |
| Grado de proteccion | |
| Protection | |
| TYPE | P2 (nom.) | P1 (max) | I (3x400V) | |||||||||||||||
| 0 | 4.5 | 6 | 7.5 | 9 | 12 | 15 | 18 | 21 | 24 | 27 | 30 | 33 | 36 | |||||
| 0 | 75 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | 600 | |||||
| HP | kW | kW | 50Hz | |||||||||||||||
| MN 32-160 C | 2 | 1.5 | 2.3 | 4 | 24.7 | 24.4 | 24.1 | 23.6 | 23 | 21.5 | 19.6 | 17.2 | 14.1 | |||||
| MN 32-160B | 3 | 2.2 | 2.9 | 5.2 | 29 | 28.5 | 28 | 27.3 | 25.7 | 23.8 | 21.4 | 18.5 | 14.8 | |||||
| MN 32-160A | 4 | 3 | 4.1 | 7.1 | 36.8 | 36.4 | 36 | 35.4 | 34.2 | 32.8 | 31.1 | 28.8 | 26 | 22.3 | ||||
| MN 32-200c | 5.5 | 4 | 5.2 | 9.4 | 41 | 40 | 39.5 | 38.9 | 37.5 | 36 | 34.2 | 32.2 | 30 | 27 | ||||
| MN 32-200B1 | 7.5 | 5.5 | 6.6 | 11.3 | 48 | 47.5 | 47.1 | 46.6 | 45.5 | 44.3 | 42.5 | 40.7 | 38.5 | 35.7 | 32.5 | 28.6 | ||
| MN 32-200B1 | 7.5 | 5.5 | 8 | 13.7 | 52.8 | 52 | 51.5 | 51 | 50 | 48.5 | 46.8 | 45 | 42.7 | 40.1 | 37 | 33.3 | 28.7 | |
| MN 32-200A1 | 10 | 7.5 | 8.5 | 14.6 | 56.5 | 56 | 55.6 | 55.2 | 54 | 52.8 | 51 | 49.2 | 47 | 44.2 | 41 | 37.1 | 33 | |
| MN 32-200A | 10 | 7.5 | 9.9 | 16.5 | 61 | 60.5 | 60.1 | 59.6 | 58.5 | 57.2 | 55.5 | 53.7 | 51.5 | 49 | 46.2 | 42.7 | 38.5 | |
| MN 32-250C | 12.5 | 9.2 | 11.9 | 20.1 | 70 | 68.5 | 68 | 67 | 65.5 | 63.5 | 61.5 | 58.7 | 55 | 50.5 | ||||
| MN 32-250B | 15 | 11 | 14.4 | 24.2 | 82 | 81 | 80.5 | 79.5 | 78.5 | 77 | 75 | 72.6 | 70 | 66.5 | ||||
| MN 32-250A1 | 20 | 15 | 16 | 27.4 | 91 | 90 | 89.9 | 89 | 88 | 86 | 84 | 81.5 | 79 | 75.5 | ||||
| MN 32-250A | 20 | 15 | 18.1 | 30.1 | 93 | 92.5 | 92.5 | 91.5 | 90.5 | 89 | 88 | 85.7 | 83.5 | 80 | ||||
| MN 40-125C | 2 | 1.5 | 2.3 | 4 | 17.4 | 17.6 | 17.5 | 17.3 | 16.4 | 15.8 | 15.1 | 14.2 | 13.3 | |||||
| MN 40-125B | 3 | 2.2 | 2.9 | 5.2 | 20.7 | 21.3 | 21.2 | 20.6 | 20.1 | 19.4 | 18.7 | 17.9 | 17 | |||||
| MN 40-125A | 4 | 3 | 4.1 | 7.1 | 25.2 | 25.8 | 25.8 | 25.4 | 24.9 | 24.4 | 23.7 | 22.9 | 22 | 21.1 | ||||
| MN 40-160B | 4 | 3 | 4.4 | 7.4 | 30 | 30.1 | 30 | 29 | 28.2 | 27.1 | 25.9 | 24.4 | 22.8 | 21 | ||||
| MN 40-160A | 5.5 | 4 | 5.7 | 9.9 | 35.4 | 35.6 | 35.5 | 35 | 34.2 | 33.2 | 32 | 30.6 | 29 | 27.3 | ||||
| MN 40-200B1 | 7.5 | 5.5 | 6.5 | 11.1 | 42.2 | 42.4 | 42.3 | 41.3 | 40.3 | 39.1 | 37.5 | 35.5 | 33.3 | 30.7 | ||||
| MN 40-200B | 7.5 | 5.5 | 7.4 | 12.7 | 44.7 | 44.9 | 44.8 | 44 | 42.9 | 41.6 | 40 | 38.1 | 36.1 | 33.6 | ||||
| MN 40-200A1 | 10 | 7.5 | 8.1 | 13.8 | 49.7 | 49.7 | 49.7 | 48.7 | 47.9 | 46.6 | 45 | 43.2 | 41.1 | 38.6 | ||||
| MN 40-200A | 10 | 7.5 | 9.8 | 16.5 | 57.7 | 57.7 | 57.5 | 56.3 | 55.4 | 54.1 | 52.5 | 50.5 | 48.5 | 45.9 | ||||
| MN 40-250C | 12.5 | 9.2 | 12.6 | 21 | 65 | 64.3 | 63.9 | 62.6 | 61.5 | 60.2 | 58.8 | 56.9 | 54.5 | 51.6 | ||||
| MN 40-250B | 15 | 11 | 14.4 | 24.2 | 75.5 | 74.6 | 74.2 | 72.7 | 71.7 | 70.4 | 69 | 67.2 | 65 | 62.5 | ||||
| MN 40-250A1 | 20 | 15 | 17.5 | 29.5 | 85 | 84 | 83.7 | 82.1 | 80.8 | 79.5 | 77.8 | 75.9 | 73.8 | 71.3 | ||||
| MN 40-250A | 20 | 15 | 19 | 32 | 91.5 | 90.4 | 89.9 | 88.5 | 87.5 | 86.6 | 85.5 | 84 | 82.5 | 80.5 | ||||
| MN 50-125B | 4 | 3 | 4.2 | 7.1 | 19.8 | 20.2 | 20.2 | 20.1 | 20 | 19.8 | 19.5 | 19.3 | 18.8 | 18.5 | ||||
| MN 50-125A | 5.5 | 4 | 5.5 | 9.6 | 24.8 | 25.2 | 25.2 | 25.1 | 25 | 24.8 | 24.6 | 24.3 | 23.9 | 23.5 | ||||
| MN 50-160B1 | 7.5 | 5.5 | 6.2 | 10.7 | 29.3 | 30.3 | 30.2 | 30 | 29.6 | 29 | 28.4 | |||||||
| MN 50-160B1 | 7.5 | 5.5 | 6.7 | 11.6 | 31.1 | 32.1 | 32 | 31.7 | 31.4 | 31 | 30.4 | |||||||
| MN 50-160A1 | 10 | 7.5 | 8.3 | 14.1 | 34.3 | 35.4 | 35.3 | 35 | 34.7 | 34.3 | 33.8 | |||||||
| MN 50-160A | 10 | 7.5 | 9.4 | 15.8 | 36.7 | 37.9 | 37.8 | 37.7 | 37.4 | 37.1 | 36.6 | |||||||
| MN 50-200C | 12.5 | 9.2 | 10.8 | 18.5 | 46 | 45.6 | 45.1 | 44.5 | 43.7 | 42.9 | ||||||||
| MN 50-200B | 15 | 11 | 12.4 | 21 | 50.8 | 51 | 50.5 | 50 | 49.3 | 48.5 | ||||||||
| MN 50-200A1 | 20 | 15 | 14.5 | 25.4 | 57 | 57.3 | 57.1 | 56.7 | 56.2 | 55.6 | ||||||||
| MN50-200A1 | 20 | 15 | 15.4 | 27 | 58 | 58.3 | 58 | 57.5 | 57 | 56.4 | ||||||||
| MN 50-250C | 20 | 15 | 20 | 325 | 71.5 | 70.8 | 70.3 | 69 | 69 | |||||||||
| MN 50-250B | 20 | 18.5 | 23 | 41.5 | 78 | 78 | 77.4 | 76.8 | 76.1 | |||||||||
| MN 50-250A | 30 | 22 | 28.5 | 51.5 | 90 | 89.5 | 88.8 | 88.3 | 87.7 | |||||||||
| MN 65-125B1 | 7.5 | 5.5 | 6.4 | 11 | 19.4 | 20.4 | 20.4 | 20.3 | ||||||||||
| MN 65-125B | 7.5 | 5.5 | 7.2 | 12.6 | 20.9 | 22 | 22 | 21.9 | ||||||||||
| MN 65-125A1 | 10 | 7.5 | 8.1 | 14 | 23 | 24.1 | 24.1 | 24 | ||||||||||
| MN 65-125A | 10 | 7.5 | 9.5 | 16.3 | 25.4 | 26.4 | 26.4 | 26.4 | ||||||||||
| MN 65-160C | 12.5 | 9.2 | 11.7 | 19.5 | 29.8 | |||||||||||||
| MN 65-160B | 15 | 11 | 13 | 22.5 | 33 | |||||||||||||
| MN 65-160A1 | 20 | 15 | 15.8 | 27.6 | 37.1 | |||||||||||||
| MN 65-160A | 20 | 15 | 18 | 30 | 39.2 | |||||||||||||
| MN 65-200C1 | 20 | 15 | 17.1 | 28.8 | 43.1 | |||||||||||||
| MN 65-200C | 20 | 15 | 18.6 | 31.4 | 45.3 | |||||||||||||
| MN 65-200B | 25 | 18.5 | 22.6 | 38.2 | 51.6 | |||||||||||||
| MN 65-200A | 30 | 22.5 | 26.6 | 43.8 | 60.2 | |||||||||||||
| MN 65-250B | 40 | 30 | 37.8 | 63.5 | 81 | |||||||||||||
| MN 65-250A | 50 | 37 | 45 | 74.5 | 90 | |||||||||||||
| MN 80-160E | 12.5 | 9.2 | 9.9 | 17.2 | 21.4 | |||||||||||||
| MN 80-160D | 15 | 11 | 12.7 | 22.1 | 25.4 | |||||||||||||
| MN 80-160C1 | 20 | 15 | 14.8 | 25.5 | 28.5 | |||||||||||||
| MN 80-160C | 20 | 15 | 15.9 | 27.4 | 29.7 | |||||||||||||
| MN 80-160B | 25 | 18.5 | 20.1 | 34.8 | 34 | |||||||||||||
| MN 80-160A | 3 | 22.5 | 23.7 | 39.8 | 38.8 | |||||||||||||
| MN 80-200B | 40 | 30 | 37.8 | 63.5 | 49 | |||||||||||||
| MN 80-200A | 50 | 37 | 45 | 74.5 | 58 | |||||||||||||
