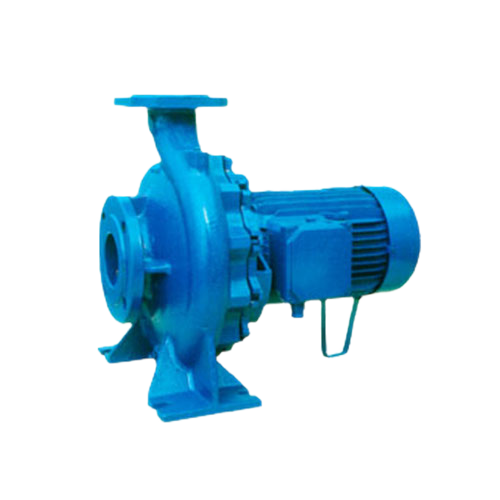

ปั๊มน้ำหอยโข่ง MARELLI รุ่น AQUAFIT Series

ปั๊มน้ำหอยโข่ง MARELLI AQUAFIT Series นำเข้าจากประเทศอิตาลี มีระยะดูดรวมฟุตวาล์ว 7 เมตร สามารถทนแรงดันสูงสุดได้ที่ 10 บาร์ สามารถทนอุณหภูมิต่ำสุด -10 องศา และอุณหภูมิสูงสุดที่ 130 องศา (ทนความร้อนด้วยแมคซีลชนิดพิเศษ)

ปั๊มน้ำหอยโข่ง ชนิดนี้สามารถทำงานได้ต่อเนื่อง มีอายุการใช้งานนาน ติดตั้งวางกลางแจ้งได้ ทนแดด ทนฝน เหมาะสำหรับใช้ในงานที่ต้องการปั๊มแบบที่ทนทาน หรืองานที่ใช้ ปั๊มน้ำ ที่สามารถทนอุณหภูมิสูง

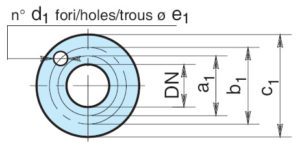

marelli-aquafit-01      marelli-aquafit-02

Specifications data MARELLI Aquafit Series



Model Flanged Construction DN50-DN65 4 Poles – 50/60 Hz (Table A1-1)
Motor Delivery
m3/h 3 4.5 6 7.5 9 10.5 12 13.5 15 16.5
kW CV l/min 50 75 100 125 150 175 200 225 250 275
MARELLI 50x32x125 Y 0.25 0.33 ** 14.4 4 3.5 3 2.2
MARELLI 50x32x125 X 0.25 0.33 6.2 6 5.8 5.2 4.5 3.9 3
MARELLI 50x32x160 X 0.37 0.5 9.4 9.2 8.9 8.3 7.7 6.9 5.8 4.7
MARELLI 50x32x200 Y 0.75 1 13 12.8 12.4 11.9 11.3 10.6 9.8 9 8 7
MARELLI 50x32x200 Y 0.9 1.25 14.5 14.3 13.8 13.3 12.7 11.8 10.9 10 9
MARELLI 50x32x250 Y 1.1 1.5 18.5 18 17.5 17 16 14.5 13 11.5
MARELLI 50x32x250 X 1.5 2 22 21.5 21 20.5 19.5 18 16.5 15 1*3
MARELLI 65x40x125 Y 0.25 0.33 4.6 4.5 4.3 4.1 3.9 3.6 3.3 2.9
MARELLI 65x40x125 X 0.37 0.5 6.3 6.2 6.1 6 5.8 5.5 5.2 4.9
MARELLI 65x40x160 X 0.5 0.7 8.8 8.6 8.3 8 7.7 7.3 6.9 6.4
MARELLI 65x40x200 Y 1.1 1.5 12.7 12.5 12.1 11.7 11.2 10.7 10.1 9.5
MARELLI 65x40x200 X 1.1 1.5 14.2 14 13.8 13.4 13 12.5 12 11
MARELLI 65x40x250 Y 1.5 2 18.3 18 17.7 17.4 17 16.6 16.2 15.6
MARELLI 65x40x250 X 2.2 3 22.5 22.3 22 21.7 21.4 21 20.5 20
MARELLI 65x50x125 Y 0.37 0.5 5.3 5.3 5.2 5.1 5 4.9
MARELLI 65x50x125 X 0.5 0.7 6.4 6.3 6.2 6.1 6 5.9
MARELLI 65x50x160 Y 0.75 1 8.2 8 7.9 7.8
MARELLI 65x50x160 X 0.9 1.25 9 8.9 8.8 8.7
MARELLI 65x50x200 Y 1.1 1.5 12.4 12.2 12 11.8
MARELLI 65x50x200 X 1.5 2 14.3 14.2 14.1 14
MARELLI 65x50x250 Y 2.2 3 18.5 18.3 18.1 17.8
MARELLI 65x50x250 X 3 4 22.5 22.4 22.3 22.2



Model Flanged Construction DN50-DN65 4 Poles – 50/60 Hz (Table A1-2)
Motor Delivery
m3/h 18 21 24 27 30 33 36 39 42
kW CV l/min 300 350 400 450 500 550 600 650 700
50x32x125 Y 0.25 0.33 **
50x32x125 X 0.25 0.33
50x32x160 X 0.37 0.5
50x32x200 Y 0.75 1 9
50x32x200 Y 0.9 1.25 8
50x32x250 Y 1.1 1.5
50x32x250 X 1.5 2
65x40x125 Y 0.25 0.33 2.4
65x40x125 X 0.37 0.5 4.6 3*
65x40x160 X 0.5 0.7 5.9 4.5
65x40x200 Y 1.1 1.5 8.5 7
65x40x200 X 1.1 1.5 10 8.3 6
65x40x250 Y 1.5 2 15 13.7 12
65x40x250 X 2.2 3 19.5 18.5 17
65x50x125 Y 0.37 0.5 4.8 4.5 4.1 3.6 3
65x50x125 X 0.5 0.7 5.8 5.5 5.2 4.9 4.4
65x50x160 Y 0.75 1 7.7 7.4 7 6.6 6 5 4
65x50x160 X 0.9 1.25 8.6 8.4 8.1 7.7 7.2 6.5 5.5
65x50x200 Y 1.1 1.5 11.5 10.8 10 9 8 7 5.8
65x50x200 X 1.5 2 13.7 13 12.3 11.3 10.2 9.1 7.8 6.4 5
65x50x250 Y 2.2 3 17.5 17 16.5 15.5 14.5 13.5 12.5 11.5 10
65x50x250 X 3 4 22 21.5 20.9 20.2 19.4 18.5 17.5 16.3 15



Model Flanged Construction DN80-DN125 4 Poles – 50/60 Hz (Table A2-1)
Motor Delivery
m3/h 18 21 24 27 30 33 36 39 42 48 54 60
kW CV l/min 300 350 400 450 500 550 600 650 700 800 900 1000
80x65x125 X 0.75 1 ** 5.8 5.7 5.6 5.5 5.3 5.1 4.9 4.7 4.5 4
80x65x165 Y 1.1 1.5 8.6 8.5 8.4 8.3 8.2 8.1 8 7.8 7.5 6.8 6 5
80x65x160 X 1.5 2 10.2 10.1 10 9.9 9.8 9.6 9.4 9.2 9 8.5 7.7
80x65x200 Y 2.2 3 12.5 12.4 12.3 12.2 12.1 12 11.17 11.1 10.5 9.6
80x65x200 X 3 4 15.2 15.1 15 14.8 14.6 14.3 13.6 12.8
80x65x250 Y 4 5.5 19.5 19.3 19.1 18.8 18.5 17.5 16.5 15.5
80x65x250 X 5.5 7.5 23 22.8 22.6 22.4 22.2 21.4 20.6 19.7
100x80x160 Y 1.5 2 7.7 7.6 7.5 7.3 7 6.7
100x80x160 X 2.2 3 9.7 9.6 9.5 9.3 8 8.8
100x80x200 Y 3 4 12 11.9 11.7 11.5 11.3 11
100x80x200 X 4 5.5 14.5 14.4 14.2 14 13.8 13.5
100x80x250 Y 5 7.5 19 18.5
100x80x250 X 7.5 10 22 21.9
125x100x200 Y 4 5.5 12.4 12.2
125x100x200 X 5.5 7.5 14.5 14.4
125x100x250 Y 7.5 10 19.5
1250x100x250 X 9 12.5 22



Model Flanged Construction DN80-DN125 4 Poles – 50/60 Hz (Table A2-2)
Motor Delivery
m3/h 66 72 78 84 90 105 120 135 150 165 180
kW CV l/min 1100 1200 1300 1400 1500 1750 2000 2250 2500 2750 3000
80x65x125 X 0.75 1 **
80x65x165 Y 1.1 1.5
80x65x160 X 1.5 2
80x65x200 Y 2.2 3 8.5
80x65x200 X 3 4 12 11
80x65x250 Y 4 5.5 14 12.5 10.5
80x65x250 X 5.5 7.5 18.7 17.5 16 14
100x80x160 Y 1.5 2 6.4 6.1 5.8 5.4 5
100x80x160 X 2.2 3 8.5 8.2 7.9 7.5 7.1 6
100x80x200 Y 3 4 10.5 10 9.5 9 8.5 7
100x80x200 X 4 5.5 13.1 12.7 12.2 11.6 11 9 6.5
100x80x250 Y 5 7.5 18 17.5 17 16.5 16 14 12
100x80x250 X 7.5 10 21.7 21.5 21.3 21 20 19 17 14.5
125x100x200 Y 4 5.5 12 11.8 11.6 11.4 11.2 10.3 9.3 8.2 6.8 4.8*
125x100x200 X 5.5 7.5 14.2 14 13.8 13.6 13.4 12.8 12 11 10 8.5
125x100x250 Y 7.5 10 19.3 19.1 18.9 18.7 18.5 17.5 16.5 15.2 14 12
1250x100x250 X 9 12.5 21.9 21.8 21.7 21.6 21.5 20.5 19.5 18.5 17 15 13



Model Flanged Construction DN80-DN250 4 Poles – 50/60 Hz
Motor Delivery
m3/h 108 120 150 180 210 240 270 300 330 360 390 420 480 540 600
kW CV l/min 1800 2000 2500 3000 3500 4000 4500 5000 5500 6000 6500 7000 8000 9000 10000
150.x125x200 W 5,5 7,5 ** 10,4 10,2 9,4 8,3 6,8
150.x125x200 Z 7,5 10 11,6 11,5 10,9 9,9 8,6 7
150.x125x200 Y 7,5 10 13 12,8 12,3 11,6 10,5 9,1 7,5
150.x125x200 X 9,2 12,5 14,3 14,2 13,8 13,2 12,3 11,1 9,6 8
150.x125x250 Z 11 15 17 16,6 15,7 14,4 12,6
150.x125x250 Y 15 20 19,8 19 18 16,6 15
150.x125x250 X 15 20 20,8 19,7 18,6 17 15,2 13,2
200x150x200 W 7,5 10 10,4 9,7 8,9 7,9 6,7 5,5
200x150x200 Z 9,2 12,5 11,5 10,9 10,2 9,3 8,3 7 5,8
200x150x200 Y 11 15 13,3 12,6 12 11,1 10,1 9 7,6
200x150x200 X 15 20 14,5 14 13,2 12,5 11,6 10,6 9,4 8
250x200x250 W 18,5 25 13,5 13 12,4 11,8 11,2 10,5 9
250x200x250 Z 18,5 25 14,6 14 13,5 13 12,4 11,7 10,2
250x200x250 Y 22 30 17 16,5 16 15,4 14,7 14 12,4 10,5
250x200x250 X 22 30 18,6 18 17,6 17 16,4 15,8 14,3 12,5 10,6



Model Flanged Construction DNa50-DNa65 2 Poles – 50/60 Hz (Table A3-1)
Motor Delivery
m3/h 6 7.5 9 10.5 12 13.5 15 16.5 18 21 24
kW CV l/min 100 125 150 175 200 225 250 275 300 350 400
50x32x125 C 0.75 1 ** 15.5 14.5 13.5 12.5 11.5 10.3 9 7.5 6
50x32x125 B 1 1.35 20.5 20 19 18 17 16 15 13.5 11.5 7.5
50x32x125 A 1.5 2 24.5 24 23.5 23 22 21 20 18.5 16.5 13
50x32x160 C 2 2.7 28.5 28 27.5 26.5 25.5 24 23 21.5 20 15
50x32x160 B 3 4 33.5 33 32.5 32 31 30 29 27.5 26 22.5
50x32x160 A 3 4 38 37.5 37 36 35 34 33 31.5 30 26.5
50x32x200 C 4 5.5 47 46.5 46 45 44 43 42 41 39.5 37.5 35
50x32x200 B 5.5 7.5 55 54.5 54 53.5 53 52 51 49.5 48 45 42
50x32x200 A 6.3 8.5 62 61.5 61 60 59 58 57 56 54 52.5 49
50x32x250 C 7.5 10 67 66.5 66 65 64 63 61.5 60 58 54
50x32x250 B 10 13.5 82 81.5 81 80.5 80 79 78 76.5 75 71 66
50x32x250 A 12.5 17 93 92.5 92 91.5 91 90.5 90 89 88 85 80
65x40x125 C 1.5 2 15.5 15.3 15 14.1 13
65x40x125 B 2 2.7 19 18.8 18.5 17.5 16.5
65x40x125 A 3 4 24.5 24.3 24 23.5 23
65x40x160 B 3 4 30 29.5 29 28 26.5
65x40x160 A 4 5.5 36.5 36 35.5 34.5 33.5
65x40x200 C 5.5 7.5 46 45 44 43 41.5
65x40x200 B 6.3 8.5 51 50.5 50 49 47.5
65x40x200 A 7.5 10 56.5 56 55.5 54.5 53
65x40x250 D 10 13.5 69 68.5 68 66.5 65
65x40x250 C 12.5 17 77 76.5 76 74.5 73
65x40x250 B 15 20 90 89.5 89 88 87
65x50x125 C 2 2.7 17
65x50x125 B 3 4 21
65x50x125 A 4 5.5 25.5
65x50x160 B 5.5 7.5 32.5
65x50x160 A 7.5 10 37
65x50x200 B 10 13.5 51
65x50x200 A 12.5 17 58
65x50x250 D 15 20 72
65x50x250 C 18.5 25 80.5
65x50x250 B 22 30 92



Model Flanged Construction DNa50-DNa65 2 Poles – 50/60 Hz (Table A3-2)
Motor Delivery
m3/h 27 30 33 36 39 42 45 48 54 60
kW CV l/min 450 500 550 600 650 700 750 800 900 1000
50x32x125 C 0.75 1 **
50x32x125 B 1 1.35
50x32x125 A 1.5 2
50x32x160 C 2 2.7
50x32x160 B 3 4
50x32x160 A 3 4
50x32x200 C 4 5.5
50x32x200 B 5.5 7.5
50x32x200 A 6.3 8.5
50x32x250 C 7.5 10
50x32x250 B 10 13.5
50x32x250 A 12.5 17
65x40x125 C 1.5 2 11.8 10.5 9 7
65x40x125 B 2 2.7 15.5 14.5 13 10.5
65x40x125 A 3 4 22 20.5 19 17
65x40x160 B 3 4 25 23 20.5 18
65x40x160 A 4 5.5 32.5 31 29 27
65x40x200 C 5.5 7.5 39 37 34 31
65x40x200 B 6.3 8.5 45 42.5 40 37
65x40x200 A 7.5 10 51 49 47 44
65x40x250 D 10 13.5 63 61 59 57 54
65x40x250 C 12.5 17 71 69 67 65 62.5 60
65x40x250 B 15 20 85 83 80.5 78 75 71
65x50x125 C 2 2.7 16.5 16 15.5 15 14 13 12 11 9
65x50x125 B 3 4 20.5 20 19.5 19 18.3 17.5 16.8 16 14 12
65x50x125 A 4 5.5 25.3 25 24.5 24 23.5 23 22.5 21.5 20 18
65x50x160 B 5.5 7.5 32 31.5 31 30.5 30 29.5 29 28 26 23.5
65x50x160 A 7.5 10 36.5 36 35.5 35 34.5 34 33.5 32.5 31 29
65x50x200 B 10 13.5 50.5 50 49 48 47 45.5 44 42 39.5 37
65x50x200 A 12.5 17 57.5 57 56 55 54 53 51.5 50 46.5 42.5
65x50x250 D 15 20 71 70 69 68 67 66 64.5 63 60 56
65x50x250 C 18.5 25 80 79.5 78.5 77.5 76.6 75.5 74.5 73.5 71 67.5
65x50x250 B 22 30 91.8 91.5 91 90 89 88 87 86 83 80



Model Flanged Construction DNa80-DNa125 2 Poles – 50/60 Hz (Table A4-1)
Motor m3/h 36 39 42 45 48 54 60 75 90 105
kW CV l/min 600 650 700 750 800 900 1000 1250 1500 17500
80x65x125 C 4 5.5 ** 17.5 17.3 17 16.5 16 15.5 14.5 12 9
80x65x125 B 5.5 7.5 21 20.8 20.6 20.3 20 19.5 19 17 14.5 11
80x65x125 A 6.3 8.5 25 24.8 24.6 24.3 24 23.5 23 21.5 19 16
80x65x160 C 100 13.5 30.5 30.3 30 29.5 29 26.5 24 20.5
80x65x160 B 12.5 17 36.5 36.3 36 35.5 34.5 33 30 27
80x65x160 A 15 20 41 40.8 40.5 40 39.5 38 35.5 33
80x65x200 D 15 20 44 43.5 43 41.5 39 35.5
80x65x200 C 18.5 25 51 50 49.5 48.5 46.5 43.5
80x65x200 B 22 30 57 56.5 56 55 53.5 51
80x65x250 D 22 30 64 63.5 63 61 57 53
80x65x250 C 30 40 77 76 74 70 66
80x65x250 B 37 50 86 85 83 79 75
100x80x160 D 10 13.5 24 23 22 21
100x80x160 C 12.5 17 28.5 28 27 26
100x80x160 B 15 20 34 33.3 32.5 31.8
100x80x200 D 18.5 25 42 41 40 38.5
100x80x200 C 22 30 47 46.5 45.5 44.5
100x80x200 B 30 40 55 54 53 52
100x80x200 A 37 50 57 56.8 56.5 56
100x80x250 D 37 50 68 67 66
125x100x200 D 22 30 39 38
125x100x200 C 30 40 47 46.5
125x100x200 B 37 50 54 53.5



Model Flanged Construction DNa80-DNa125 2 Poles – 50/60 Hz (Table A4-2)
Motor m3/h 120 135 150 165 180 210 240 270 300
kW CV l/min 2000 2250 2500 2750 3000 3500 4000 4500 5000
80x65x125 C 4 5.5 **
80x65x125 B 5.5 7.5
80x65x125 A 6.3 8.5
80x65x160 C 100 13.5 16
80x65x160 B 12.5 17 23 19
80x65x160 A 15 20 29 24
80x65x200 D 15 20 31.5
80x65x200 C 18.5 25 39.5 35
80x65x200 B 22 30 48 42.5
80x65x250 D 22 30
80x65x250 C 30 40 60 53*
80x65x250 B 37 50 70 64*
100x80x160 D 10 13.5 19.5 18 16.5 15*
100x80x160 C 12.5 17 24.5 23 21.5 20 18.5*
100x80x160 B 15 20 31 29 27.5 26 24.5
100x80x200 D 18.5 25 37 35 33 30.5 28
100x80x200 C 22 30 43 41 39 37 34
100x80x200 B 30 40 51 49 47 45 43 37
100x80x200 A 37 50 55 54 52.5 51 48 42
100x80x250 D 37 50 65 63 61 58 55 47
125x100x200 D 22 30 37 36 34.5 33 31.5 28 24
125x100x200 C 30 40 46 45 44 42 40 38 36 30#
125x100x200 B 37 50 53 52 51 50 49 46 43* 3* 34#



Model Screwed Construction 2 Poles
Motor Delivery
m3/h 2.4 3.6 4.8 6 7.5 9 10.5 12 13.5 15 16,5 18 21 24
kW CV l/min 40 60 80 100 120 150 175 200 225 250 275 300 350 400
25×125 B 0.75 1 ** 20 19.5 18.8 18 16.7 15 13,3 11,5 9,5
25×125 A 1 1,35 24 23.7 23.2 22.5 21.2 19.5 17,5 15 12
25×160 C 1.5 2 30 29.5 29 28 26.7 25.2 23,3 21 19
25×160 A 2 2.7 37 36.6 36.1 35.5 34 32.6 31 29 26,5 23
25×200 B 3 4 43.6 43.2 42.8 42.4 41.8 40.8 39.6 38 36
25×200 A 4 5.5 52.8 52.4 52 51.5 51 50 51.5 47,6 46
N 25×160 C/2 2 2,7 59 53 45,5 36
N 25×160 B/2 2 2,7 54 51,5 47,5 42,5 35 27
N 25×160 A/2 2,5 3,4 63 61 57 53 46,5 39
N 32×190 C/2 3,7 52 67 65,5 63,5 61,5 58 54,5 50 45
N 32×190 B/2 4,4 6 78 77 75 73 70 66 62 57 51
N 32×200 B/2 5,5 7,5 90 88,5 86,5 83 79 74 67,5 59,5 51
N 32×190 A/2 7,5 10 110 108 106 103 98,5 93,5 87,5 80 71
N 40×190 C/2 4,4 6 61 60 58,5 56,5 54 51 47,5 44 40 32
N 40×190 B/2 5,5 7,5 74 72,5 71 69 67 64 61 58 54,5 47 39
N 40×190 A/2 7,5 10 84 86,5 85,5 84,5 83 81 78 75 72 64,5 56



Model Screwed Construction 4 Poles
Motor Delivery
m3/h 1.2 2.4 3.6 4.8 6 7.2 8.4 9.6
kW CV l/min 20 40 60 80 100 120 140 160
25×125 X 0.25 0.33 ** 5.7 5.5 5.3 4.8 4 3
25×160 X 0.25 0.33 9.2 8.9 8.6 8 7.3 6.3 5
25×200 Y 0.75 1 10.8 10.5 10.1 9.6 8.8 7.7 6.2
25×200 X 0.75 1 12.8 12.5 12.2 11.7 11.1 10.3 9.2 7.8

* Max manometric suction head of 2 metres
** Total manometric head
# Positive suction head of 1 meter.

Dimensions data MARELLI Aquafit Series

marelli-aquafit-dimension-4pole-300x155

Model Flanged Construction 4 Poles – 50/60 Hz
Motor DNmDN16 DNaPN16 Delivery Weight
mm mm a h1 h2 b m1 m2 n1 n2 s C L B H E Kg.
50x32x125 X 71 32 50 80 112 140 50 100 70 190 140 14 12 405 205 252 107 19.5
50x32x125 Y 71 32 50 80 112 140 50 100 70 190 140 14 12 405 205 252 107 19.5
50x32x160 X 71 32 50 80 132 160 50 100 70 240 190 14 12 405 240 292 107 23
50x32x200 X 80 32 50 80 160 180 50 100 70 240 190 14 12 425 255 340 118 31
50x32x200 Y 80 32 50 80 160 180 50 100 70 240 190 14 12 425 255 340 118 30
50x32x250 X 90 32 50 100 180 225 65 125 95 320 250 14 12 485 320 405 149 49
50x32x250 Y 90 32 50 100 180 225 65 125 95 320 250 14 12 485 320 405 149 47
65x40x125 X 71 40 65 80 112 140 50 100 70 210 160 14 12 405 230 252 107 21.5
65x40x125 Y 71 40 65 80 112 140 50 100 70 210 160 14 12 405 230 252 107 20.5
65x40x160 X 71 40 65 80 132 160 50 100 70 240 190 14 12 405 230 292 107 25
65x40x200 X 90 40 65 100 160 180 50 100 70 265 212 14 12 485 242 340 149 36
65x40x200 Y 90 40 65 100 160 180 50 100 70 265 212 14 12 485 285 340 149 36
65x40x250 X 100 40 65 100 180 225 65 125 95 320 250 14 12 525 325 405 159 54
65x40x250 Y 90 40 65 100 180 225 65 125 95 320 250 14 12 485 325 405 149 47.5
65x50x125 X 71 50 65 100 132 160 50 100 70 240 190 14 12 425 246 292 107 26
65x50x125 Y 71 50 65 100 132 160 50 100 70 240 190 14 12 425 246 292 107 25
65x50x160 X 80 50 65 100 160 180 50 100 70 265 212 14 12 445 269 340 118 33
65x50x160 Y 80 50 65 100 160 180 50 100 70 265 212 14 12 445 269 340 118 32
65x50x200 X 90 50 65 100 160 180 50 100 70 265 212 14 12 485 285 360 149 40
65x50x200 Y 90 50 65 100 160 180 50 100 70 265 212 14 12 485 285 360 159 38
65x50x250 X 10 50 65 100 180 225 65 125 95 320 250 14 14 525 333 405 159 63
65x50x250 Y 100 50 65 100 180 225 65 125 95 320 250 14 14 525 333 405 159 57
80x65x125 X 80 65 80 100 160 180 65 125 95 280 212 14 12 445 286 340 118 32
80x65x160 X 90 65 80 100 160 200 65 125 95 280 212 14 12 485 288 360 149 40
80x65x160 Y 90 65 80 100 160 200 65 125 95 280 212 14 12 485 288 360 149 37.5
80x65x200 X 100 65 80 100 180 225 65 125 95 320 250 14 14 525 328 405 159 57
80x65x200 Y 100 65 80 100 180 225 65 125 95 320 250 14 14 525 328 405 159 51
80x65x250 X 132 65 80 100 200 250 80 160 120 360 280 14 14 640 365 450 184 90
80x65x250 Y 112 65 80 100 200 250 80 160 120 360 280 14 14 535 365 450 159 80
100x80x160 X 100 80 100 125 180 225 65 125 95 320 250 14 14 550 330 405 159 51
100x80x160 X 90 80 100 125 180 225 65 125 95 320 250 14 14 510 330 405 149 45
100x80x200 X 112 80 100 125 180 250 65 125 95 345 280 14 12 560 355 430 159 73
100x80x200 Y 100 80 100 125 180 250 65 125 95 345 280 14 12 550 355 430 159 66
100x80x250 X 132 80 100 125 200 280 80 160 120 400 315 14 14 665 400 480 184 106
100x80x250 Y 132 80 100 125 200 280 80 160 120 400 315 18 14 665 400 480 184 96
125x100x200 X 132 100 125 125 200 280 80 160 120 360 280 18 14 665 385 480 184 90
125x100x200 Y 112 100 125 125 200 280 80 160 120 360 280 18 14 560 385 480 159 78
125x100x250 X 132 100 125 140 225 280 80 160 120 400 315 18 14 675 420 505 184 118
125x100x250 Y 132 100 125 140 225 280 80 160 120 400 315 18 14 675 420 505 184 112
150x125x200 W 132 125 150 140 250 315 80 160 120 400 315 18 14 700 470 565 255 124
150x125x200 Z 132 125 150 140 250 315 80 160 120 400 315 18 14 700 470 565 255 134
150x125x200 Y 132 125 150 140 250 315 80 160 120 400 315 18 14 700 470 565 255 134
150x125x200 X 132 125 150 140 250 315 80 160 120 400 315 18 14 700 470 565 255 140
150x125x250 Z 132 125 150 140 250 355 80 160 120 400 315 18 16 700 470 605 255 162
150x125x250 Y 160 125 150 140 250 355 80 160 120 400 315 18 16 855 470 605 255 190
150x125x250 X 160 125 150 140 250 355 80 160 120 400 315 18 16 855 470 604 255 190
200x150x200 W 132 150 200 160 280 400 100 200 155 550 450 24 22 855 550 680 295 167
200x150x200 Z 132 150 200 160 280 400 100 200 155 550 450 24 22 855 550 680 295 173
200x150x200 Y 132 150 200 160 280 400 100 200 155 550 450 24 22 855 550 680 295 175
200x150x200 X 160 150 200 160 280 400 100 200 155 550 450 24 22 875 550 680 295 203
250x200x250 W 180 200 250 200 315 450 100 200 155 550 450 24 22 1000 630 765 350 278
250x200x250 Z 180 200 250 200 315 450 100 200 155 550 450 24 22 1000 630 765 350 278
250x200x250 Y 180 200 250 200 315 450 100 200 155 550 450 24 22 1000 630 765 350 300
250x200x250 X 180 200 25 200 315 450 100 200 155 550 450 24 22 1000 630 765 35 300

flange-flanges-brides-4pole-300x148

Flange / Flanges / Brides UNI PN 16
DN a1 b1 c1 d1 e1
32 78 100 140 4 18
40 88 110 150 4 18
50 102 125 165 4 18
65 122 145 185 4 18
80 138 160 200 8 18
100 158 180 220 8 18
125 188 210 250 8 18
150 212 240 285 8 22
200 268 295 340 8 22
200 320 350 395 12 22



marelli-aquafit-dimension-2pole-fig-01    marelli-aquafit-dimension-2pole-fig-02



Model Flanged Construction 2 Poles – 50/60 Hz
Motor DNmDN16 DNaPN16 Delivery Weight
mm mm Fig. a h1 h2 b m1 m2 n1 n2 s C W L Z B H E Kg.
50x32x125 A 80 32 50 1 80 112 140 50 100 70 190 140 14 12 425 220 252 118 23.5
50x32x125 B 80 32 50 1 80 112 140 50 100 70 190 140 14 12 425 220 252 118 22
50x32x125 C 71 32 50 1 80 112 140 50 100 70 190 140 14 12 405 220 252 107 21
50x32x160 A 90 32 50 1 80 132 160 50 100 70 240 190 14 12 465 270 292 149 35
50x32x160 B 90 32 50 1 80 132 160 50 100 70 240 190 14 12 465 270 292 149 33
50x32x160 C 90 32 50 1 80 132 160 50 100 70 240 190 14 12 465 240 292 118 33
50x32x200 A 112 32 50 1 80 160 180 50 100 70 240 190 14 12 515 280 340 159 53.5
50x32x200 B 112 32 50 1 80 160 180 50 100 70 240 190 14 12 515 280 340 159 53
50x32x200 C 100 32 50 1 80 160 180 50 100 70 240 190 14 12 505 28 340 159 48
50x32x250 A 132 32 50 1 100 180 225 65 125 95 320 250 14 12 640 345 405 184 87
50x32x250 B 132 32 50 1 100 180 225 65 125 95 320 250 14 12 640 345 405 184 80
50x32x250 C 132 32 50 1 100 180 225 65 125 95 320 250 14 12 640 345 405 184 74.5
65x40x125 A 90 40 65 1 80 112 140 50 100 70 210 160 14 12 465 255 252 149 30
65x40x125 B 90 40 65 1 80 112 140 50 100 70 210 160 14 12 465 225 252 118 30
65x40x125 C 80 40 65 1 80 112 140 50 100 70 240 190 14 12 425 225 252 118 24.5
65x40x160 A 100 40 65 1 80 132 160 50 100 70 240 190 14 12 505 280 292 159 40
65x40x160 B 90 40 65 1 80 132 160 50 100 70 240 190 14 12 465 270 292 149 30
65x40x200 A 132 40 65 1 100 160 180 50 100 70 265 212 14 12 640 320 346 184 62
65x40x200 B 112 40 65 1 100 160 180 50 100 70 265 212 14 12 535 300 340 159 54.5
65x40x200 C 112 40 65 1 100 160 180 50 100 70 265 212 14 12 535 300 340 159 54
65x40x250 B 132 40 65 1 100 180 225 65 125 95 320 250 14 12 640 345 405 184 92
65x40x250 C 132 40 65 1 100 180 225 65 125 95 320 250 14 12 640 345 405 184 85
65x40x250 D 100 40 65 1 100 180 225 65 125 95 320 250 14 12 640 345 405 184 77
65x50x125 A 90 50 65 1 100 132 160 50 100 70 240 190 14 12 525 280 292 159 41
65x50x125 B 90 50 65 1 100 132 160 50 100 70 240 190 14 12 485 270 292 149 36.5
65x50x125 C 132 50 65 1 100 132 160 50 100 70 240 190 14 12 485 245 292 118 36,5
65x50x160 A 112 50 65 1 100 160 180 50 100 70 265 212 14 12 640 320 340 184 60
65x50x160 B 132 50 65 1 100 160 180 50 100 70 265 212 14 12 535 300 340 159 51.5
65x50x200 A 132 50 65 1 100 160 200 50 100 70 265 212 14 12 640 320 360 184 75
65x50x200 B 180 50 65 1 100 160 200 50 100 70 265 212 14 12 640 320 360 184 68
65x50x250 B 160 50 65 2 100 180 225 55 298 241 320 280 14 22 280 800 20 390 405 230 146
65x50x250 C 132 50 65 2 100 180 225 55 298 241 320 280 14 22 280 800 20 390 405 230 128
65x50x250 D 112 50 65 1 100 180 225 65 125 95 320 250 14 14 640 345 405 184 93
80x65x125 A 112 65 80 1 100 160 180 65 125 95 280 212 14 14 535 300 340 159 51.5
80x65x125 B 100 65 80 1 100 160 180 65 125 95 280 212 14 14 535 300 340 159 51
80x65x125 C 132 65 80 1 100 160 180 65 125 95 280 212 14 14 525 300 340 159 44
80x65x160 A 132 65 80 1 100 160 200 65 125 95 280 212 14 14 640 325 360 184 83
80x65x160 B 132 65 80 1 100 160 200 65 125 95 280 212 14 14 640 325 360 184 77
80x65x160 C 180 65 80 1 100 160 200 65 125 95 280 212 14 14 640 325 360 184 70
80x65x200 B 160 65 80 2 100 180 225 55 298 241 320 280 14 22 280 800 20 360 405 230 140
80x65x200 C 132 65 80 2 100 180 225 55 298 241 320 280 14 22 280 800 20 360 405 230 122
80x65x200 D 200 65 80 1 100 180 225 65 125 95 320 250 14 14 640 345 405 184 87.5
80x65x250 B 200 65 80 2 100 200 250 60 345 305 360 318 18 24 325 905 20 400 450 257 190
80x65x250 C 180 65 80 2 100 200 250 60 345 305 360 318 18 24 325 905 20 400 450 257 172
80x65x250 D 132 65 80 2 100 180 250 55 298 241 320 280 14 22 293 810 20 365 450 230 144
100x80x160 B 132 80 100 1 125 180 225 65 125 95 320 250 14 14 665 345 405 184 88.5
100x80x160 C 132 80 100 1 125 180 225 65 125 95 320 250 14 14 665 345 405 184 81.5
100x80x160 D 200 80 100 1 125 180 225 65 125 95 320 250 14 14 665 345 405 184 74
100x80x200 A 200 80 100 2 125 200 250 60 345 305 360 318 18 24 325 930 20 400 430 257 210
100x80x200 B 180 80 100 2 125 200 250 60 345 305 360 318 18 24 325 930 20 400 430 257 192
100x80x200 C 160 80 100 2 125 180 250 55 298 241 320 280 14 22 293 835 20 360 430 230 150
100x80x200 D 200 80 100 2 125 180 250 55 298 241 320 280 14 22 293 835 20 360 430 230 132
100x80x250 D 200 80 100 2 125 200 280 60 345 305 360 318 18 24 325 930 20 400 480 257 196
125x100x200 B 200 100 125 2 125 200 280 60 345 305 360 318 18 24 325 930 20 400 480 257 220
125x100x200 C 200 100 125 2 125 200 280 60 345 305 360 318 18 24 325 930 20 400 480 257 202
125x100x200 D 180 100 125 2 125 200 280 55 298 241 320 318 14 22 293 835 20 385 480 230 160



Flange / Flanges / Brides UNI PN 16
DN a1 b1 c1 d1 e1
32 78 100 140 4 18
40 88 110 150 4 18
50 102 125 165 4 18
65 122 145 185 4 18
80 138 160 200 8 18
100 158 180 220 8 18
125 188 210 250 8 18



marelli-aquafit-dimension-2-4pole-fig-01    marelli-aquafit-dimension-2-4pole-fig-02



Model Flanged Construction 2-4 Poles – 50/60 Hz
Motor DNm DNa Delivery Weight
mm mm Fig. a h1 h2 b m1 m2 n1 n2 s C L B H E Kg.
25×125 A 80 G1″ G1″ 1/2 1 60 112 140 40 80 60 200 160 12 12 405 220 118 252 17
25×125 B 71 G1″ G1″ 1/2 1 60 112 140 40 80 60 200 160 12 12 380 210 107 252 16
25×160 A 80 G1″ G1″ 1/2 1 60 112 160 40 80 60 200 160 12 12 405 230 118 272 23
25×160 C 80 G1″ G1″ 1/2 1 60 112 160 40 80 60 200 160 12 12 405 230 118 272 21
25×200 A 100 G1″ G1″ 1/2 1 60 132 180 50 100 70 240 190 14 12 500 290 159 312 41
25×200 B 90 G1″ G1″ 1/2 1 60 132 180 50 100 70 240 190 14 12 450 280 149 312 33
25×160 A/2 80 G1″ G1″ 1/4 2 80 115 140 40 80 60 200 160 12 12 365 230 118 255 24
25×160 B/2 80 G1″ G1″ 1/4 2 80 115 140 40 80 60 200 160 12 12 365 230 118 255 22
32×190 A/2 112 G1″ 1/4 G1″ 1/2 2 90 132 170 50 100 70 240 190 14 13 495 290 159 302 48
32×190 B/2 100 G1″ 1/4 G1″ 1/2 2 90 132 170 50 100 70 240 190 14 13 495 290 159 302 44
32×190 C/2 90 G1″ 1/4 G1″ 1/2 2 90 132 170 50 100 70 240 190 14 13 430 280 149 302 36
N 25×160 C/2 80 G1″ G1″ 1/4 2 84 110 153 40 78 58 225 185 11 10 380 225 263 25
N 25×160 B/2 80 G1″ G1″ 1/2 2 86 110 153 40 78 58 225 185 11 10 380 225 263 25
N 25×160 A/2 80 G1″ G1″ 1/2 2 86 110 153 40 78 58 225 185 11 10 400 225 263 26
N 32×160 C/2 100 G1″ 1/4 G1″ 1/2 2 90 132 170 50 95 71 240 190 14 14 475 270 302 45
N 32×160 B/2 100 G1″ 1/4 G1″ 1/2 2 90 132 170 50 95 71 240 190 14 14 475 270 302 49
N 32×200 B/2 112 G1″ 1/4 G2″ 2 112 132 195 52 90 65 284 232 14 12 570 300 334 51
N 32×200 A/2 112 G1″ 1/4 G2″ 2 112 139 195 52 90 65 284 232 14 12 525 300 334 55
N 40×190 C/2 100 G1″ 1/2 G2″ 2 112 139 195 52 90 65 284 232 14 12 570 300 334 48
N 40×190 B/2 112 G1″ 1/2 G2″ 2 112 139 195 52 90 65 284 232 14 12 570 300 334 51
N 40×190 A/2 112 G1″ 1/2 G2″ 2 112 139 195 52 90 65 284 232 14 12 570 300 334 53



สินค้าที่เกี่ยวข้อง

{{ reviewsTotal }}{{ options.labels.singularReviewCountLabel }}
{{ reviewsTotal }}{{ options.labels.pluralReviewCountLabel }}
{{ options.labels.newReviewButton }}
{{ userData.canReview.message }}

ขอใบเสนอราคา/Request a quote

ขอใบเสนอราคา/Request a quote
