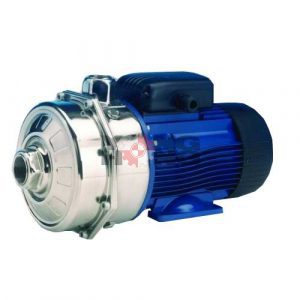

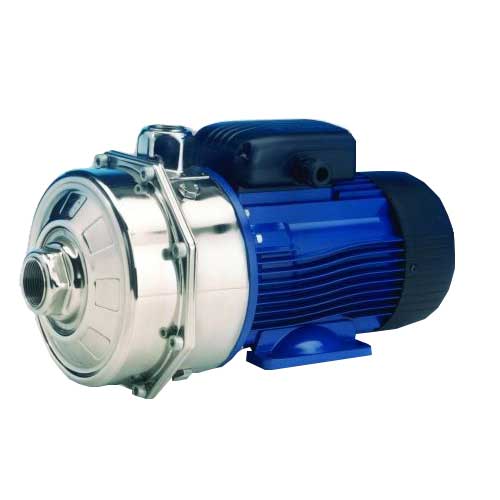

ปั๊มน้ำหอยโข่ง MARTRA รุ่น CEA Series จากประเทศอิตาลี หัวปั๊มสแตนเลส เครื่องสูบน้ำแบบใบพัดเดี่ยวสำหรับใช้งานอุตสาหกรรมทั่วไป ปั๊มคุณภาพดี มาตรฐานระดับยุโรป
ปั๊มน้ำ ยี่ห้อ MARTRA รุ่น CEA (M) 70/3CEA (M) 70/3CEA (M) 80/5CEA (M) 120/3CEA (M) 120/5CEA (M) 210/2CEA (M) 210/3CEA (M) 210/4CEA (M) 210/5CEA (M) 370/1CEA (M) 370/2CEA (M) 370/2CEA 370/5
การใช้งานของ ปั๊มหอยโข่ง MARTRA รุ่น CEA Series
Specifications
MARTRA CEA (M) 70/3CEA (M) 70/3CEA (M) 80/5CEA (M) 120/3CEA (M) 120/5CEA (M) 210/2CEA (M) 210/3CEA (M) 210/4CEA (M) 210/5CEA (M) 370/1CEA (M) 370/2CEA (M) 370/2CEA 370/5
MODEL | Rated power | Q=DELIVERY | ||||||||
l/min 0 | 30 | 40 | 60 | 80 | 100 | 120 | 140 | |||
Kw | HP | m3/h | 1.8 | 2.4 | 3.6 | 4.8 | 6 | 7.2 | 8.4 | |
H=Total HEAD METRES COLUM OF WATER | ||||||||||
CEA (M) 70/3 | 0.37 | 0.5 | 22 | 20.1 | 19.1 | 16.6 | 12.8 | |||
CEA (M) 70/3 | 0.55 | 0.75 | 31.1 | 28.8 | 27.7 | 24.7 | 20.2 | |||
CEA (M) 80/5 | 0.75 | 1 | 32 | 30 | 29.3 | 27.4 | 24.7 | 21 | 14 | 11.8 |
CEA (M) 120/3 | 0.55 | 0.75 | 22.4 | 18.9 | 17.5 | 15.9 | 22.4 | 20 | ||
CEA (M) 120/5 | 0.8 | 1.2 | 31.8 | 28.2 | 26.5 | 24.6 | 16.5 | 16.1 | ||
CEA (M) 210/2 | 0.75 | 1 | 17.7 | 19.7 | 19.3 | |||||
CEA (M) 210/3 | 1.1 | 1.6 | 20.8 | 24.8 | 24.5 | |||||
CEA (M) 210/4 | 1.5 | 2 | 25.5 | 28.2 | 27.9 | |||||
CEA (M) 210/5 | 1.85 | 2.5 | 29 | |||||||
CEA (M) 370/1 | 1.1 | 1.5 | 16.3 | |||||||
CEA (M) 370/2 | 1.5 | 2 | 20.4 | |||||||
CEA (M) 370/2 | 1.85 | 2.5 | 24.4 | |||||||
CEA 370/5 | 3 | 4 | 30.3 |
MODEL | Rated power | Q=DELIVERY | |||||||||||
l/min 0 | 160 | 180 | 200 | 250 | 300 | 350 | 400 | 430 | 480 | 520 | |||
Kw | HP | m3/h | 9.6 | 10.8 | 12 | 15 | 18 | 21 | 24 | 26 | 29 | 31 | |
H=Total HEAD METRES COLUM OF WATER | |||||||||||||
CEA (M) 70/3 | 0.37 | 0.5 | 22 | 9.2 | |||||||||
CEA (M) 70/3 | 0.55 | 0.75 | 31.1 | 17.3 | |||||||||
CEA (M) 80/5 | 0.75 | 1 | 32 | 15.6 | 15 | 14.4 | 12.6 | 10.4 | |||||
CEA (M) 120/3 | 0.55 | 0.75 | 22.4 | 19 | 18.5 | 18 | 15.5 | 14.4 | |||||
CEA (M) 120/5 | 0.8 | 1.2 | 31.8 | 24 | 23.6 | 23 | 21.3 | 19 | |||||
CEA (M) 210/2 | 0.75 | 1 | 17.7 | 27.5 | 27.1 | 26.6 | 25.1 | 23.1 | |||||
CEA (M) 210/3 | 1.1 | 1.6 | 20.8 | 15.5 | 15.2 | 14.3 | 13 | 11.4 | 9.4 | 8.1 | |||
CEA (M) 210/4 | 1.5 | 2 | 25.5 | 19.1 | 18.3 | 17.2 | 15.8 | 14.1 | 13 | 10.8 | |||
CEA (M) 210/5 | 1.85 | 2.5 | 29 | 22.9 | 22.1 | 21.1 | 19.8 | 18.2 | 17.1 | 15 | 13 | ||
CEA (M) 370/1 | 1.1 | 1.5 | 16.3 | 28.3 | 27.5 | 26.5 | 25.3 | 23.8 | 22.8 | 21 | 19 | ||
CEA (M) 370/2 | 1.5 | 2 | 20.4 | ||||||||||
CEA (M) 370/2 | 1.85 | 2.5 | 24.4 | ||||||||||
CEA 370/5 | 3 | 4 | 30.3 |
