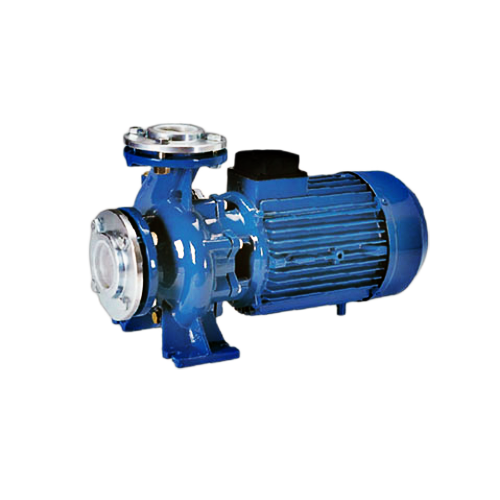

Centrifugal pump MARTRA CM Series 500x500

ปั๊มน้ำหอยโข่ง MARTRA CM Series

ปั๊มน้ำหอยโข่ง MARTRA CM Series หน้าแปลน ตัว ปั๊มเป็นแบบสแตนเลส แข็งแรงทนทาน เป็นปั้มสูบน้ำที่เหมาะสำหรับงานอุตสาหกรรม และระบบสูบน้ำจ่ายตึกสูง มีจำหน่ายให้เลือกใช้งานหลากหลายรุ่น มีขนาดกำลังมอเตอร์ตั้งแต่ 2 – 50 HP

Category Tags , , , , ,
ขอใบเสนอราคา/Request a quote
Facebook
Twitter
Email
Print

ปั้มน้ำหอยโข่ง MARTRA รุ่น CM Series

การใช้งานของ เครื่องปั๊มน้ำ MARTRA CM Series

  • ปั๊มน้ำ สามารถใช้ส่งน้ำในอาคาร ตึกสูงได้
  • นิยมใช้ส่งน้ำได้ในงานเกษตรกรรม การเพาะปลูก
  • สามารถประกอบถังแรงดัน เพื่อเพิ่มแรงดันสำหรับการใช้งาน

Specification

  • ใช้ไฟ : 380 โวลต์
  • ใบพัดทำจากทองเหลือง
  • ตัวปั๊มทำจากเหล็กหล่อ

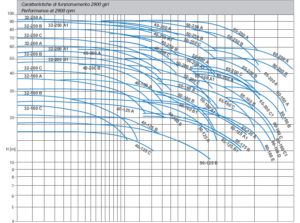

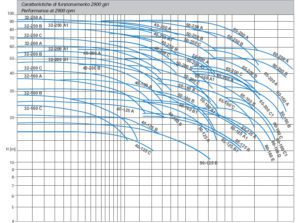

matar-cm-series-performance-cover-02-300x223

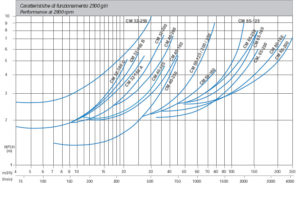

matar-cm-series-performance-cover-01-300x223


Martra CM Series Specifications

Type P2 nom. P2 nom. P1 max. I Q (m3/h-l/min)
0 4.5 6 7.5 9 12 15 18 21 24 27 30 33 36 39
0 75 100 125 150 200 250 300 350 400 450 500 550 600 650
HP kW kW 3x400v H (m)
CM 32-160 C (*) 2 1.5 2.3 4 24.7 24.4 24.1 23.6 23 21.5 19.6 17.2 14.1
CM 32-160 B (*) 3 2.2 2.9 5.2 29 28.5 28 27.3 25.7 23.8 21.4 18.5 14.8
CM 32-160 A 4 3 4.1 7.1 36.8 36.4 36 35.4 34.2 32.8 31.1 28.8 26 22.3
CM 35-200 C (*) 5.5 4 5.2 9.4 41 40 39.5 38.9 37.5 36 34.2 32.2 30 27
CM 32-200 B1 7.5 5.5 6.6 11.3 48 47.5 47.1 46.6 45.5 44.3 42.5 40.7 38.5 35.7 32.5 28.6
CM 32-200 B 7.5 5.5 8 13.7 52.8 52 51.5 51 50 48.5 46.8 45 42.7 40.1 37 33.3 28.7
CM 32-200 A1 10 7.5 8.5 14.6 56.5 56 55.6 55.2 54 52.8 51 49.2 47 44.2 41 37.1 33
CM 32-200 A 10 7.5 9.9 16.5 61 60.5 60.1 59.6 58.5 57.2 55.5 53.7 51.5 49 46.2 42.7 38.5
CM 32-250 C 12.5 9.2 11.9 20.1 70 68.5 68 67 65.5 63.5 61.5 58.7 55 50.5
CM 32-250 B 15 11 14.4 24.2 82 81 80.5 79.5 78.5 77 75 72.6 70 66.5
CM 32-250 A1 20 15 16 27.4 91 90 89.9 89 88 86 84 81.5 79 75.5
CM 32-250 A 20 15 18.1 30.1 93 92.5 92 91.5 90.5 89.5 88 55.7 83.5 80
CM 40-125 C (*) 2 1.5 2.3 4 17.4 17.6 17.5 17.3 16.9 16.4 15.8 15.1 14.2 13.3
CM 40-125 B (*) 3 2.2 2.9 5.2 20.7 21.3 21.2 21 20.6 20.1 19.4 18.7 17.9 17
CM 40-125 A 4 3 4.1 7.1 25.2 25.8 25.8 25.6 25.4 24.9 24.4 23.7 22.9 22 21.1
CM 40-160 B (*) 4 3 4.4 7.4 30 30.1 30 29.6 29 28.2 27.1 25.9 24.4 22.8 21
CM 40-160 A (*) 5.5 4 5.7 9.9 35.4 35.6 35.5 35.3 35 34.2 33.2 32 30.6 29 27.3 25.4
CM 40-200 B 7.5 5.5 7.8 13.2 46.7 47 46.8 46.4 45.6 44.5 43.2 41.6 39.9 37.9 35.8 33.4
CM 40-200 A 10 7.5 10.2 16.8 56.4 57.8 58 57.9 57.6 46.9 56 54.7 53 51.1 48.9 46.5
CM 40-250 C 12.5 9.2 12.6 21 65 64.3 63.9 63.3 62.6 61.5 60.2 58.8 56.9 54.5 51.6 48.5
CM 40-250 B 15 11 14.4 24.2 75.5 74.6 74.2 73.5 72.7 71.7 70.4 69 67.2 65 62.5 59.5
CM 40-250 A1 20 15 17.5 29.5 85 84 83.7 82.9 82.1 80.8 79.5 77.8 75.9 73.8 71.3 68.4
CM 40-250 A 20 15 19 32 91.5 90.4 89.9 89.3 88.5 87.5 86.6 85.5 84 82.5 80.5 78.5
CM 50-125 B (*) 4 3 4.4 7.4 19.9 20.2 20.2 20.1 20 19.8 19.3 19.1 18.7 18.3 17.8
CM 50-125 A (*) 5.5 4 5.7 9.9 24.5 25 24.9 24.8 24.6 24.4 24.2 23.8 23.5 23.1
CM 50-160 B1 7.5 5.5 6.2 10.7 29.3 30.3 30.2 30 29.6 29 28.4 27.7
CM 50-160 B 7.5 5.5 6.7 11.6 31.1 32.1 32 31.7 31.4 31 30.4 29.7
CM 50-160 A1 10 7.5 8.3 14.1 34.3 35.4 35.3 35 34.7 34.3 33.8 33.2
CM 50-160 A 10 7.5 9.4 15.8 36.7 37.9 37.8 37.7 37.4 37.1 36.6 36.1
CM 50-200 C 12.5 9.2 10.8 18.5 46 45.6 45.1 44.5 43.7 42.9 41.8
CM 50-200 B 15 11 12.4 21 50.8 51 50.5 50 49.3 48.5 47.7
CM 50-200 A1 20 15 14.5 25.4 57 57.3 57.1 56.7 56.2 55.6 54.8
CM 50-200 A 20 15 14.4 27 58 58.3 58 57.5 57 56.4 55.7
CM 50-250 C 20 15 20 32.5 71.5 70.8 70.3 69.7 69 68.3
CM 50-250 B 25 18.5 23 41.5 78 78 77.4 76.8 76.1 75.3
CM 50-250 A 30 22 28.5 51.5 90 89.5 88.8 88.3 87.7 86.9
CM 65-125 B1 7.5 5.5 6.4 11 19.4 20.4 20.4 20.3 20.2
CM 65-125 B 7.5 5.5 7.2 12.6 20.9 22 22 21.9 21.8
CM 65-125 A1 10 7.5 8.1 14 23 24.1 24.1 24 23.9
CM 65-125 A 10 7.5 9.5 16.3 25.4 26.4 26.4 26.4 26.3
CM 65-160 C 12.5 9.2 11.7 19.5 29.8
CM 65-160 B 15 11 13 22.5 33
CM 65-160 A1 20 15 15.8 27.6 37.1
CM 65-160 A 20 15 18 30 39.2
CM 65-200 C1 20 15 17.4 29.2 39.7
CM 65-200 C 20 15 20 32.5 42.3
CM 65-200 B 25 18.5 23 41.5 46.8
CM 65-200 A 30 22 28.5 51.5 54
CM 65-250 B 40 30 37.8 63.5 81
CM 65-250 A 50 37 45 74.5 90
CM 80-160 E 12.5 9.2 9.9 17.2 21.4
CM 80-160 D 15 11 12.7 22.1 25.4
CM 80-160 C1 20 15 14.8 25.5 28.5
CM 80-160 C 20 15 15.9 27.4 29.7
CM 80-160 B 25 18.5 20.1 34.8 34
CM 80-160 A 30 22.5 23.7 39.8 38.8
CM 80-200 B 40 30 37.8 63.5 49
CM 80-200 A 50 37 45 74.5 58
* Single phase available



Table A1-2

Type Q (m3/h-l/min)
42 48 54 60 66 72 78 84 96 108 120 132 144 156 168 180 195 210 225 240
700 800 900 1000 1100 1200 1300 1400 1600 1800 2000 2200 2400 2600 2800 3000 3250 3500 3750 4000
H (m)
CM 32-160 C (*)
CM 32-160 B (*)
CM 32-160 A
CM 35-200 C (*)
CM 32-200 B1
CM 32-200 B
CM 32-200 A1
CM 32-200 A
CM 32-250 C
CM 32-250 B
CM 32-250 A1
CM 32-250 A
CM 40-125 C (*)
CM 40-125 B (*)
CM 40-125 A
CM 40-160 B (*)
CM 40-160 A (*)
CM 40-200 B
CM 40-200 A 43.9
CM 40-250 C 45.5
CM 40-250 B 56
CM 40-250 A1 65.8
CM 40-250 A 76
CM 50-125 B (*) 17.4 16.4 15.3 14 12.7 11.2
CM 50-125 A (*) 22.7 21.8 20.8 19.6 18.1 16.5
CM 50-160 B1 26.9 25.2 23.2 21 18.7 16.1 13.2
CM 50-160 B 28.9 27.3 25.3 23.1 20.7 18 15.2
CM 50-160 A1 32.4 30.7 28.7 26.5 24.3 21.8 19
CM 50-160 A 35.4 33.9 32.1 30 27.8 25.3 22.6
CM 50-200 C 40.8 38.5 35.9 33 29 24.5
CM 50-200 B 46.8 44.7 42.2 39.5 35.9 32
CM 50-200 A1 54.1 52.2 50.2 47.5 44 40
CM 50-200 A 55 53.2 51.3 49 46.3 42.8 38.8
CM 50-250 C 67.6 66 64 61.5 58.6 55 50.5
CM 50-250 B 74.5 72.8 70.6 68.2 65.5 62.2 58.3
CM 50-250 A 86.1 84.5 82.7 80.5 78 75.2 71.2
CM 65-125 B1 20.1 19.8 19.4 19 18.5 17.9 17.2 16.5 15 13.3 11.1
CM 65-125 B 21.7 21.4 21 20.6 20.1 19.6 19 18.3 16.6 14.7 12.6
CM 65-125 A1 23.8 23.6 23.3 23 22.7 22.3 21.8 21.2 19.7 17.8 15.7
CM 65-125 A 26.3 26.1 25.9 25.6 25.3 24.9 24.5 24 22.7 21 18.9 16.5
CM 65-160 C 31.2 31.1 30.8 30.5 30.1 29.6 29 28.3 26.6 24.6 22.1 19.3 16
CM 65-160 B 34.6 34.4 34.2 34 33.7 33.3 32.8 32.1 30.6 28.8 26.7 24.1 21.1
CM 65-160 A1 38.5 38.3 38.1 37.8 37.5 37.1 36.7 36.1 34.6 32.8 30.7 28.4 25.7
CM 65-160 A 40.6 40.6 40.4 40.2 40 39.7 39.4 38.9 37.7 36.2 34.3 32.2 29.8
CM 65-200 C1 41.5 41.4 41 40.5 39.9 39 36.8 34.2 31.1 27.8
CM 65-200 C 44.8 44.5 44.1 43.7 43 42.3 40.5 38 35.3 32
CM 65-200 B 49.5 49.3 49 48.5 48 47.3 45.5 43.5 41 38
CM 65-200 A 56.7 56.5 56.2 55.7 55.2 54.7 53.5 51.6 49.6 47.1 44
CM 65-250 B 79.5 78.5 77.3 76 74.5 73 69.3 65 60 54.5 48.5
CM 65-250 A 89.5 88.5 87.5 86.5 85.5 84 80.5 76.5 72 66.5 60.5 54
CM 80-160 E 22.4 22.1 21.6 21.2 20.2 19.2 18 16.8 15.4 13.7 12
CM 80-160 D 26.4 26.1 25.7 25.3 24.4 23.6 22.5 21.3 20 18.5 16.9 15.1
CM 80-160 C1 29.5 29.3 29 28.6 27.8 26.9 25.7 24.6 23.3 21.7 19.9 17.9 15.2
CM 80-160 C 30.7 30.5 30.3 29.9 29.2 28.1 27.1 26 24.7 23.1 21.5 19.7 17.2
CM 80-160 B 35 35 34.8 34.63 34 33.3 32.5 21.6 30.5 29.2 27.8 26 2.36 21
CM 80-160 A 39.8 39.7 39.6 9.4 38.9 38.2 37.5 36.7 35.7 34.5 33.2 31.6 29.4 26.8 23.5
CM 80-200 B 50.8 50.6 50.3 49.8 49.3 48.6 47.7 46.7 45.5 43.8 41.5 38.5
CM 80-200 A 59.6 59.2 58.6 58 57.3 56.4 55.5 54.3 52.7 50.8 48.5 46.1
* Single phase available

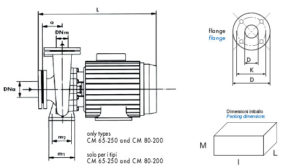

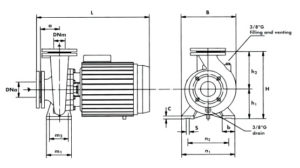

Martra CM Series Dimensions

matar-cm-series-dimension-01-300x168matar-cm-series-dimension-02-300x168

Dimensions (mm)
DN D K holes
n° Ø
32 140 100 4 18
40 150 110 4 18
50 165 125 4 18
65 185 145 4 18
80 200 160 4 18
100 220 180 8 18



Type P2 nom.P2 nom.P1 max.IQ (m3/h-l/min) Weight
DNm DNa a h1 h2 m1 m2 n1 n2 b x s C B H I L M kg
CM 32-160 C 32 50 80 132 160 100 70 240 190 50 12 14 490 240 292 520 260 355 38
CM 32-160 B 32 50 80 132 160 100 70 240 190 50 12 14 490 240 292 520 260 355 39
CM 32-160 A 32 50 80 132 160 100 70 240 190 50 12 14 490 240 292 520 260 355 42
CM 35-200 C 32 50 80 160 180 100 70 240 190 50 12 14 505 268 340 530 305 400 51.5
CM 32-200 B1 32 50 80 160 180 100 70 240 190 50 12 14 520 268 340 615 310 460 61
CM 32-200 B 32 50 80 160 180 100 70 240 190 50 12 14 565 268 340 615 310 460 63
CM 32-200 A1 32 50 80 160 180 100 70 240 190 50 12 14 520 268 340 615 310 460 67
CM 32-200 A 32 50 80 160 180 100 70 240 190 50 12 14 565 268 340 615 310 460 69
CM 32-250 C 32 50 100 180 225 125 95 320 250 65 12 14 625 305 405 665 335 535 83
CM 32-250 B 32 50 100 180 225 125 95 320 250 65 14 14 625 305 405 665 335 535 90
CM 32-250 A1 32 50 100 180 225 125 95 320 250 65 14 14 625 305 405 665 335 535 95
CM 32-250 A 32 50 100 180 225 125 95 320 250 65 14 14 695 305 405 735 335 535 120
CM 40-125 C 40 65 80 112 140 100 70 210 160 50 12 14 495 220 252 520 260 355 36
CM 40-125 B 40 65 80 112 140 100 70 210 160 50 12 14 495 220 252 520 260 355 37
CM 40-125 A 40 65 80 112 140 100 70 210 160 50 12 14 495 220 252 250 260 355 40
CM 40-160 B 40 65 80 132 160 100 70 240 190 50 12 14 500 245 292 520 260 355 47
CM 40-160 A 40 65 80 132 160 100 70 240 190 50 15 14 500 245 292 520 260 355 50
CM 40-200 B 40 65 100 160 180 100 70 265 212 50 15 14 590 273 340 615 310 460 65
CM 40-200 A 40 65 100 160 180 100 70 265 212 50 15 14 590 273 340 615 310 460 71
CM 40-250 C 40 65 100 180 225 125 95 320 250 65 15 14 630 322 405 665 335 535 84
CM 40-250 B 40 65 100 180 225 125 95 320 250 65 15 14 630 322 405 665 335 535 91
CM 40-250 A1 40 65 100 180 225 125 95 320 250 65 15 14 630 322 405 665 335 535 96
CM 40-250 A 40 65 100 180 225 125 95 320 250 65 15 14 700 322 405 735 335 535 121
CM 50-125 B 50 65 100 132 160 100 70 240 190 50 12 14 525 250 292 520 260 355 47
CM 50-125 A 50 65 100 132 160 100 70 240 190 50 12 14 525 250 292 520 260 355 50
CM 50-160 B1 50 65 100 150 180 100 70 265 212 50 12 14 545 270 340 615 310 460 63
CM 50-160 B 50 65 100 150 180 100 70 265 212 50 12 14 590 270 340 615 310 460 65
CM 50-160 A1 50 65 100 150 180 100 70 265 212 50 12 14 545 270 340 615 310 460 69
CM 50-160 A 50 65 100 150 180 100 70 265 212 50 12 14 590 270 340 615 310 460 71
CM 50-200 C 50 65 100 160 200 100 70 265 212 50 12 14 635 290 360 665 335 535 82
CM 50-200 B 50 65 100 160 200 100 70 265 212 50 12 14 635 290 360 665 335 535 89
CM 50-200 A1 50 65 100 160 200 100 70 265 212 50 12 14 635 290 360 665 335 535 94
CM 50-200 A 50 65 100 160 200 100 70 265 212 50 12 14 705 290 360 735 335 535 122
CM 50-250 C 50 65 100 180 225 125 95 320 250 65 14 14 705 332 405 735 355 535 125
CM 50-250 B 50 65 100 180 225 125 95 320 250 65 14 14 750 332 405 815 355 535 140
CM 50-250 A 50 65 100 180 225 125 95 320 250 65 14 14 750 332 405 815 355 535 149
CM 65-125 B1 65 80 100 160 180 125 95 280 212 65 14 14 560 280 340 615 310 460 62
CM 65-125 B 65 80 100 160 180 125 95 280 212 65 14 14 605 280 340 615 310 460 64
CM 65-125 A1 65 80 100 160 180 125 95 280 212 65 14 14 560 280 340 615 310 460 68
CM 65-125 A 65 80 100 160 180 125 95 280 212 65 14 14 605 280 340 615 310 460 70
CM 65-160 C 65 80 100 160 200 125 95 280 212 65 14 14 635 290 360 665 335 535 84
CM 65-160 B 65 80 100 160 200 125 95 280 212 65 14 14 635 290 360 665 335 535 90
CM 65-160 A1 65 80 100 160 200 125 95 280 212 65 14 14 635 290 360 665 355 535 95
CM 65-160 A 65 80 100 160 200 125 95 280 212 65 14 14 705 290 360 735 355 535 120
CM 65-200 C1 65 80 100 180 225 125 95 320 250 65 14 14 675 330 405 735 355 535 92
CM 65-200 C 65 80 100 180 225 125 95 320 250 65 14 14 705 330 405 735 355 535 122
CM 65-200 B 65 80 100 180 225 125 95 320 250 65 14 14 750 330 405 815 355 535 138
CM 65-200 A 65 80 100 180 225 125 95 320 250 65 14 14 750 330 405 815 355 535 148
CM 65-250 B 65 80 100 200 250 160 120 360 280 80 16 19 850 370 450 850 380 490 239
CM 65-250 A 65 80 100 200 250 160 120 360 280 80 16 19 850 370 450 850 380 490 253
CM 80-160 E 80 100 125 180 225 125 95 320 250 65 14 14 665 330 405 665 335 535 92
CM 80-160 D 80 100 125 180 225 125 95 320 250 65 14 14 665 330 405 665 335 535 98.5
CM 80-160 C1 80 100 125 180 225 125 95 320 250 65 14 14 665 330 405 665 335 535 104
CM 80-160 C 80 100 125 180 225 125 95 320 250 65 14 14 735 330 405 735 335 535 1299
CM 80-160 B 80 100 125 180 225 125 95 320 250 65 14 14 780 330 405 815 335 535 143
CM 80-160 A 80 100 125 180 225 125 95 320 250 65 14 14 780 330 405 815 335 535 152
CM 80-200 B 80 100 125 180 225 125 95 345 280 65 16 14 870 355 405 850 380 490 233
CM 80-200 A 80 100 125 180 225 125 95 345 280 65 16 14 870 355 405 850 380 490 247



สินค้าที่เกี่ยวข้อง

{{ reviewsTotal }}{{ options.labels.singularReviewCountLabel }}
{{ reviewsTotal }}{{ options.labels.pluralReviewCountLabel }}
{{ options.labels.newReviewButton }}
{{ userData.canReview.message }}

ขอใบเสนอราคา/Request a quote

ขอใบเสนอราคา/Request a quote
