ปั๊มน้ำ STAC รุ่น KRW3 เป็นปั๊มน้ำใช้งานได้ทั่วไป อาทิ ใช้ในอาคาร, ระบบ Pressure Boosting, ระบบบำบัดน้ำ, ระบบปรับอากาศ, เกษตรกรรม, โรงงานอุตสาหกรรม, ระบบชลประทาน, ปั๊มน้ำดับเพลิง
[vc_row][vc_column][vc_column_text]
[/vc_column_text][vc_column_text]เหมาะสำหรับใช้ในงาน
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
[/vc_column_text][vc_row_inner][vc_column_inner width=”1/2″][vc_single_image image=”746396″ img_size=”full” alignment=”center”][/vc_column_inner][vc_column_inner width=”1/2″][vc_single_image image=”746397″ img_size=”full” alignment=”center”][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
[/vc_column_text][vc_row_inner][vc_column_inner][vc_single_image image=”746398″ img_size=”full”][/vc_column_inner][/vc_row_inner][/vc_column][/vc_row][vc_row][vc_column][vc_column_text]
[/vc_column_text][vc_column_text]

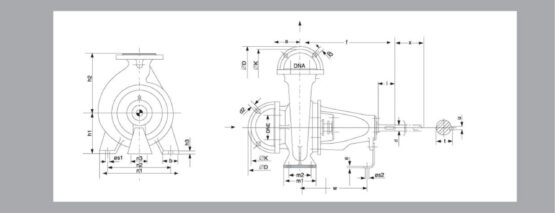

Pump size | Shaft Unit | DNE | DNA | a | f | h1 | h2 | b | m1 | m2 | n1 | n2 | n3 | h3 | Øs1 | Øs2 | w | d | l | t | u | WT kg |
32/13 | 25 | Ø50 | Ø32 | 80 | 360 | 112 | 140 | 50 | 100 | 70 | 190 | 140 | 100 | 14 | 14 | 14 | 267 | 24 | 50 | 27 | 8 | 27.5 |
32/16 | 25 | Ø50 | Ø32 | 80 | 360 | 132 | 160 | 50 | 100 | 70 | 240 | 190 | 100 | 14 | 14 | 14 | 267 | 24 | 50 | 27 | 8 | 35 |
32/20 | 25 | Ø50 | Ø32 | 80 | 360 | 160 | 180 | 50 | 100 | 70 | 240 | 190 | 110 | 14 | 14 | 14 | 267 | 24 | 50 | 27 | 8 | 41 |
32/26 | 25 | Ø50 | Ø32 | 100 | 360 | 180 | 225 | 65 | 125 | 95 | 320 | 250 | 110 | 14 | 14 | 14 | 267 | 24 | 50 | 27 | 8 | 59 |
40/13 | 25 | Ø65 | Ø40 | 80 | 360 | 112 | 140 | 50 | 100 | 70 | 210 | 160 | 100 | 14 | 14 | 14 | 267 | 24 | 50 | 27 | 8 | 30 |
40/16 | 25 | Ø65 | Ø41 | 80 | 360 | 132 | 160 | 50 | 100 | 70 | 240 | 190 | 100 | 14 | 14 | 14 | 267 | 24 | 50 | 27 | 8 | 36 |
40/20 | 25 | Ø65 | Ø42 | 100 | 360 | 160 | 180 | 50 | 100 | 70 | 265 | 212 | 110 | 14 | 14 | 14 | 267 | 24 | 50 | 27 | 8 | 44 |
40/26 | 25 | Ø65 | Ø43 | 100 | 360 | 180 | 225 | 65 | 125 | 95 | 320 | 250 | 110 | 14 | 14 | 14 | 267 | 24 | 50 | 27 | 8 | 61 |
40/32 | 35 | Ø65 | Ø44 | 125 | 470 | 200 | 225 | 65 | 125 | 95 | 345 | 280 | 110 | 14 | 14 | 14 | 342 | 32 | 80 | 35 | 10 | 45.8 |
40/32H | 35 | Ø65 | Ø45 | 125 | 470 | 200 | 225 | 65 | 125 | 95 | 345 | 280 | 110 | 14 | 14 | 14 | 342 | 32 | 80 | 35 | 10 | 45.8 |
50/13 | 25 | Ø65 | Ø50 | 100 | 360 | 132 | 160 | 50 | 100 | 70 | 240 | 190 | 100 | 14 | 14 | 14 | 267 | 24 | 50 | 27 | 8 | 34 |
50/16 | 25 | Ø65 | Ø50 | 100 | 360 | 160 | 180 | 50 | 100 | 70 | 265 | 212 | 110 | 14 | 14 | 14 | 267 | 24 | 50 | 27 | 8 | 38 |
50/20 | 25 | Ø65 | Ø50 | 100 | 360 | 160 | 200 | 50 | 100 | 70 | 265 | 212 | 110 | 14 | 14 | 14 | 267 | 24 | 50 | 27 | 8 | 46 |
50/26 | 25 | Ø65 | Ø50 | 100 | 360 | 180 | 225 | 65 | 125 | 95 | 320 | 250 | 110 | 14 | 14 | 14 | 267 | 24 | 50 | 27 | 8 | 63 |
50/32 | 35 | Ø65 | Ø50 | 125 | 470 | 225 | 280 | 65 | 125 | 95 | 345 | 280 | 110 | 16 | 14 | 14 | 342 | 32 | 80 | 35 | 10 | 101 |
50/32H | 35 | Ø65 | Ø50 | 125 | 470 | 225 | 280 | 65 | 125 | 95 | 345 | 280 | 110 | 16 | 14 | 14 | 342 | 32 | 80 | 35 | 10 | 101 |
65/13 | 25 | Ø80 | Ø65 | 100 | 360 | 160 | 180 | 65 | 125 | 95 | 280 | 212 | 110 | 14 | 14 | 14 | 267 | 24 | 50 | 27 | 8 | 39 |
65/16 | 25 | Ø80 | Ø65 | 100 | 360 | 160 | 200 | 65 | 125 | 95 | 280 | 212 | 110 | 14 | 14 | 14 | 267 | 24 | 50 | 27 | 8 | 43 |
65/20 | 25 | Ø80 | Ø65 | 100 | 360 | 180 | 180 | 65 | 125 | 125 | 320 | 250 | 110 | 14 | 14 | 14 | 267 | 24 | 50 | 27 | 8 | 70 |
65/26 | 35 | Ø80 | Ø65 | 100 | 470 | 200 | 250 | 80 | 160 | 120 | 360 | 280 | 110 | 16 | 17.5 | 14 | 342 | 32 | 80 | 35 | 10 | 91 |
65/32 | 35 | Ø80 | Ø65 | 125 | 472 | 225 | 280 | 80 | 160 | 120 | 400 | 315 | 110 | 16 | 17.5 | 14 | 342 | 32 | 80 | 35 | 10 | 110 |
65/32H | 35 | Ø80 | Ø65 | 125 | 472 | 225 | 280 | 80 | 160 | 120 | 400 | 315 | 110 | 16 | 17.5 | 14 | 342 | 32 | 80 | 35 | 10 | 110 |
80/16 | 25 | Ø100 | Ø80 | 125 | 360 | 180 | 225 | 65 | 125 | 95 | 320 | 250 | 110 | 14 | 14 | 14 | 267 | 24 | 50 | 27 | 8 | 54 |
80/20 | 35 | Ø100 | Ø80 | 125 | 470 | 180 | 250 | 65 | 125 | 95 | 345 | 280 | 110 | 14 | 14 | 14 | 342 | 32 | 80 | 35 | 10 | 70 |
80/26 | 35 | Ø100 | Ø80 | 125 | 470 | 200 | 280 | 80 | 160 | 120 | 400 | 315 | 110 | 16 | 17.5 | 14 | 342 | 32 | 80 | 35 | 10 | 91 |
80/32 | 35 | Ø100 | Ø80 | 125 | 470 | 250 | 315 | 80 | 160 | 120 | 400 | 315 | 110 | 16 | 17.5 | 14 | 342 | 32 | 80 | 35 | 10 | 120 |
80/32H | 35 | Ø100 | Ø80 | 125 | 470 | 250 | 315 | 80 | 160 | 120 | 400 | 315 | 110 | 16 | 17.5 | 14 | 342 | 32 | 80 | 35 | 10 | 120 |
80/40 | 45 | Ø100 | Ø80 | 125 | 530 | 280 | 355 | 85 | 160 | 120 | 400 | 340 | 110 | 16 | 17.5 | 14 | 368 | 42 | 110 | 45 | 12 | 161 |
100/20 | 35 | Ø125 | Ø100 | 125 | 470 | 200 | 280 | 80 | 160 | 120 | 360 | 280 | 110 | 16 | 17.5 | 14 | 342 | 32 | 80 | 35 | 10 | 85 |
100/26 | 35 | Ø125 | Ø100 | 140 | 470 | 225 | 280 | 80 | 160 | 120 | 400 | 315 | 110 | 16 | 17.5 | 14 | 342 | 32 | 80 | 35 | 10 | 106 |
100/26H | 35 | Ø125 | Ø100 | 140 | 470 | 225 | 280 | 80 | 160 | 120 | 400 | 315 | 110 | 16 | 17.5 | 14 | 342 | 32 | 80 | 35 | 10 | 106 |
100/32 | 35 | Ø125 | Ø100 | 140 | 470 | 250 | 315 | 80 | 160 | 120 | 400 | 315 | 110 | 16 | 17.5 | 14 | 342 | 32 | 80 | 35 | 10 | 134 |
100/40 | 45 | Ø125 | Ø100 | 140 | 530 | 280 | 355 | 100 | 200 | 150 | 500 | 400 | 110 | 18 | 23 | 14 | 370 | 42 | 110 | 45 | 12 | 174 |
125/20 | 35 | Ø150 | Ø125 | 140 | 470 | 250 | 315 | 80 | 160 | 120 | 400 | 315 | 110 | 16 | 17.5 | 14 | 342 | 32 | 80 | 35 | 10 | 106 |
125/26 | 35 | Ø150 | Ø125 | 140 | 470 | 250 | 355 | 80 | 160 | 120 | 400 | 315 | 110 | 16 | 17.5 | 14 | 342 | 32 | 80 | 35 | 10 | 115 |
125/32 | 45 | Ø150 | Ø125 | 140 | 530 | 280 | 355 | 100 | 200 | 150 | 500 | 400 | 110 | 18 | 23 | 14 | 370 | 42 | 110 | 45 | 12 | 163 |
125/40 | 45 | Ø150 | Ø125 | 140 | 530 | 315 | 400 | 100 | 200 | 150 | 500 | 400 | 110 | 18 | 23 | 14 | 370 | 42 | 110 | 45 | 12 | 181 |
125/50 | 60 | Ø150 | Ø125 | 180 | 680 | 375 | 500 | 100 | 200 | 150 | 550 | 450 | 140 | 24 | 24 | 14 | 500 | 55 | 110 | 59 | 16 | 220 |
150/20 | 35 | Ø200 | Ø150 | 160 | 495 | 280 | 400 | 100 | 200 | 150 | 550 | 450 | 110 | 20 | 23 | 14 | 367 | 32 | 80 | 35 | 10 | 156 |
150/26 | 45 | Ø200 | Ø150 | 160 | 530 | 250 | 355 | 100 | 200 | 150 | 450 | 350 | 110 | 18 | 23 | 14 | 370 | 42 | 110 | 45 | 12 | 148 |
150/32 | 45 | Ø200 | Ø150 | 160 | 530 | 280 | 400 | 100 | 200 | 150 | 550 | 450 | 110 | 18 | 23 | 14 | 370 | 42 | 110 | 45 | 12 | 170 |
150/40 | 45 | Ø200 | Ø150 | 160 | 530 | 315 | 450 | 100 | 200 | 150 | 550 | 450 | 110 | 18 | 23 | 14 | 370 | 42 | 110 | 45 | 12 | 209 |
150/50 | 60 | Ø200 | Ø150 | 180 | 670 | 375 | 500 | 100 | 200 | 150 | 550 | 450 | 140 | 24 | 24 | 15 | 500 | 55 | 110 | 59 | 16 | 430 |
200/26 | 45 | Ø250 | Ø200 | 180 | 546 | 280 | 400 | 100 | 200 | 150 | 550 | 450 | 110 | 25 | 26 | 15 | 389 | 42 | 110 | 45 | 12 | 210 |
200/32 | 55 | Ø250 | Ø200 | 200 | 670 | 355 | 450 | 100 | 200 | 150 | 550 | 450 | 110 | 20 | 24 | 15 | 500 | 48 | 110 | 52 | 14 | 323 |
200/40 | 55 | Ø250 | Ø200 | 200 | 670 | 355 | 500 | 100 | 200 | 150 | 550 | 450 | 110 | 20 | 24 | 15 | 500 | 48 | 110 | 52 | 14 | 370 |
200/50 | 60 | Ø250 | Ø200 | 240 | 783 | 400 | 495 | 160 | 300 | 300 | 720 | 600 | 140 | 30 | 27 | 23 | 534 | 70 | 140 | 75 | 20 | 530 |
250/32 | 55 | Ø300 | Ø250 | 200 | 783 | 360 | 525 | 160 | 300 | 175 | 720 | 500 | 140 | 30 | 27 | 23 | 534 | 70 | 140 | 75 | 20 | 370 |
250/40 | 60 | Ø300 | Ø250 | 240 | 783 | 405 | 495 | 160 | 300 | 240 | 720 | 600 | 140 | 30 | 27 | 23 | 534 | 70 | 140 | 75 | 20 | 457 |
250/50 | 75 | Ø300 | Ø250 | 240 | 783 | 425 | 545 | 160 | 300 | 240 | 720 | 600 | 140 | 30 | 27 | 23 | 534 | 70 | 140 | 75 | 20 | 646 |
300/40 | 75 | Ø350 | Ø300 | 280 | 783 | 500 | 600 | 150 | 300 | 200 | 800 | 660 | 140 | 40 | 27 | 23 | 550 | 70 | 140 | 74.5 | 20 | 720 |
[/vc_column_text][vc_column_text]
DNA/DNE | 32 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 |
ØD | 140 | 150 | 165 | 185 | 200 | 220 | 250 | 285 | 340 | 405 | 460 | 520 |
ØK | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 355 | 410 | 470 |
d2xnumber | 18×4 | 18×4 | 18×4 | 18×4 | 18×8 | 18×8 | 18×8 | 22×8 | 22×12 | 26×12 | 26×12 | 26×16 |
