ปั๊มหอยโข่ง EBARA 3LP Series

ปั๊มหอยโข่ง EBARA 3LP Series เป็นปั๊มหอยโข่ง ที่ออกแบบมาเพื่อการใช้งานในระบบน้ำอุตสาหกรรม งานก่อสร้าง ระบบชลประทาน และงานสูบน้ำทั่วไป ด้วยโครงสร้างที่แข็งแรง ทนทาน และประสิทธิภาพสูง

Facebook
Twitter
Email
Print

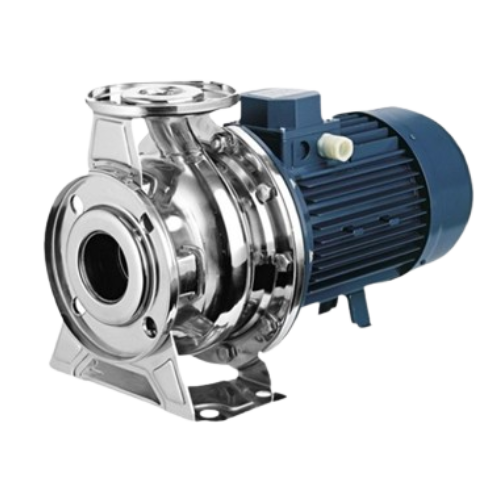

EBARA 3LP Series

ปั๊มหอยโข่ง EBARA 3LP Series เป็นปั๊มน้ำคุณภาพสูงจากญี่ปุ่น ออกแบบให้มีประสิทธิภาพการสูบน้ำที่ดีเยี่ยม แข็งแรง ทนทานต่อการใช้งานหนัก ตัวเรือนผลิตจากเหล็กหล่อพร้อมใบพัดแบบปิด ช่วยเพิ่มแรงดันและอัตราการไหลของน้ำ เหมาะสำหรับงานอุตสาหกรรม ระบบประปา อาคารสูง ระบบชลประทาน และการใช้งานทั่วไปที่ต้องการแรงดันสูงและการไหลของน้ำที่เสถียร มาพร้อมขนาดและกำลังมอเตอร์ที่หลากหลาย รองรับทุกความต้องการใช้งาน



คุณสมบัติ:

  • ผลิตจากเหล็กหล่อคุณภาพสูง แข็งแรง ทนทานต่อการกัดกร่อน
  • ใบพัดแบบปิด (Enclosed Impeller) ช่วยเพิ่มประสิทธิภาพในการสูบน้ำ
  • มีขนาดให้เลือกหลายรุ่น รองรับอัตราการไหลและแรงดันที่หลากหลาย
  • ออกแบบให้บำรุงรักษาง่าย ลดค่าใช้จ่ายในการซ่อมบำรุง
  • เหมาะสำหรับการใช้งานที่ต้องการแรงดันสูง เช่น ระบบประปา ระบบเพิ่มแรงดันน้ำ และระบบหล่อเย็น



การใช้งาน:

  • งานอุตสาหกรรม ใช้ในระบบน้ำหล่อเย็น, ระบบน้ำหมุนเวียน
  • อาคารสูงและระบบประปา เพิ่มแรงดันน้ำสำหรับอาคารสูงและหมู่บ้าน
  • การเกษตรและชลประทาน ใช้สูบน้ำในระบบรดน้ำพืชและชลประทาน
  • งานก่อสร้าง ใช้ในงานสูบน้ำทั่วไป และระบบบำบัดน้ำ



Specification

PUMP
Version 3LP
Liquid Handled Type of liquid Clean water and moderately aggressive fluids
Drinking water and water contains glycol for E and ES version
Temperature [°C] min.  -10
max. +120
For full details see section “FLUID TEMPERATURE RANGE” on pag.333
Maximum working pressure [MPa] 1
Construction Impeller Closed centrifugal type for 32, 40, 50 version Reinforced laser welding for 40-200/11, 50-200/15
Closed centrifugal three dimensional blades for 65 and 80 version
Shaft seal type Mechanical seal with stationary ring secured against rotation
Bearing Sealed ball bearing
Pipe Connection Suction 32-125/160/200 Flange DN50 according EN1092-1 Standard
40-125/160/200
50-125/160/200
Flange DN65 according EN1092-1 Standard
65-125/160/200/250 Flange DN80 according EN1092-1 Standard
80-160/200/250 Flange DN100 according EN1092-1 Standard
Discharge 32-125/160/200 Flange DN32 according EN1092-1 Standard
40-125/160/200 Flange DN40 according EN1092-1 Standard
50-125/160/200 Flange DN50 according EN1092-1 Standard
65-125/160/200/250 Flange DN65 according EN1092-1 Standard
80-160/200/250 Flange DN80 according EN1092-1 Standard
Material Casing 32-125/160/200
40-125/160/200
50-125/160/200
65-125/160/200
EN 1.4404 (AISI 316L)
65-250
80-160/200/250
CF8M – EN 1.4408 (AISI 316)
Impeller 32-125/160/200
40-125/160/200
50-125/160/200
EN 1.4404 (AISI 316L)
65-125/160/200 CF8M – EN 1.4408 (AISI 316)
65-250
80-160/200/250
CF8M – EN 1.4408 (AISI 316)
Casing cover 32-125/160/200
40-125/160/200
50-125/160/200
65-125/160/200
EN 1.4404 (AISI 316L)
65-250
80-160/200/250
CF8M – EN 1.4408 (AISI 316)
Mechanical seal 32-125/160/200
40-125/160/200
50-125/160/200
65-125/160/200
SiC/SiC/FPM (L version)
65-250
80-160/200
80-250 SiC/Carbon/EPDM (ES version)  [2]
O-ring FPM   [3]
Shaft 32, 40, 50,
65-125
65-160/11
d=19 EN 1.4404 (AISI 316L)
50-200/15 d=22
65-160/15
65-200
d=24
65-250 d=24 EN 1.4462 (Duplex stainless steel)
80-160 d=24 EN 1.4404 (AISI 316L)
80-200/22 d=24
80-200/30-37 d=24 EN 1.4462 (Duplex stainless steel)
80-250 d=29
Bracket Cast iron – Aluminium
Applicable standard of test ISO 9906:2012 – Grade 3B



MOTOR
Type 3(.)P
Electric – TEFC
Three Phase
Efficiency level (Reg. 1781/2019) IE3
No. of Poles 2
Rotation speed [min-1]  ≈ 2900
Insulation Class F (temperature rise class B)
Protection degree (CEI EN 60034-5) IP 55
Power rating [kW] 1.1 ÷ 55
[HP] 1.5 ÷ 7.5
Frequency [Hz] 50
Voltage [V] 230/400 ±10% (up to 4.0 kW)
400/690 ±10% (5.5 kW and above)
Over load protection Provided by the user
Casing material Aluminium
Motor support Cast iron – Alluminium
Dimensions of cable entry M32x1.5 M40x1.5 M50x1.5
M20x1.5, M25x1.5
Flange mount (IEC motor) 3(.)S IMB5 (up to 2.2 kW)
IMB35 (3 kW and above) 3LSZ IM B35
IM B3



Performance Curve

EBARA 3LP Series



Selection Chart
3 SERIES: 32, 40, 50 Version

Pump type l/min    0 100 150 200 300 333 360 400 450 500 600 700 800 1000 1200
m³/h     0 6 9 12 18 20 22 24 27 30 36 42 48 60 72
32-125/1.1(M)  * 22.5 21 19.9 18.4 14.1 12
32-160/1.5(M)  * 29.5 28 26.5 24.5 19.2 17
32-160/2.2(M)  * 37 35.5 34 32 27 25
32-200/3.0 44 42 40 37.5 31 28
32-200/4.0 55 53.5 52 49.5 43.5 40.5 38
32-200/5.5 70.5 69 67.5 65 58.5
32-200/7.5 70.5 69 67.5 65 58.5 55.5 53 49 44
40-125/1.5(M)  * 20 19 17.6 17 16.5 15.7 14.5 13.2 10.3 7
40-125/2.2(M)  * 26.5 25.5 24 23.5 23 22 21 19.5 16.4 13
40-160/3.0 31 29.5 27.5 27 26.5 25.5 24 22.5 20 17
40-160/4.0 40 38.5 37 36 35.5 34.5 33 32 29 25.5
40-200/5.5 47 45.5 44 43 42.5 41 39.5 38 35 31
40-200/7.5 58 57 55.5 55 54.5 53.5 52.5 51 47.5 44
40-200/11 72 71 70 70 69.5 68.5 67.5 66 63 59
50-125/2.2(M)  * 19 17.5 17 16.3 14.9 13.4 11.7 8
50-125/3.0 22,7 21,7 21,4 21 19,9 18,5 16,9 13,3 9,5
50-125/4.0 26.5 26 25.5 25 24 22.5 21.5 17.9 14
50-160/5.5 33 31 30.5 30 28.5 27 25.5 22 18
50-160/7.5 40 38.5 38 37.5 36 35 33.5 30 26
50-200/9.2 53 50 49 47.5 45.5 40.5 34
50-200/11 59 56 55 54 52 48 42
50-200/15 72 70 69 68 66 62 57



3 SERIES: 65, 80 Version

Pump type l/min     0 600 700 900 1300 1500 1700 1900 2100 2200 2300 2400 2500 3000 3400 3600 3800 4000
m³/h     0 36 42 54 78 90 102 114 126 132 138 144 150 180 204 216 228 240
65-125/4.0 22.2 19.8 19 17.3 13.3 11 8,6 6.3
65-125/5.5 27 24 22.2 18 15.7 13.3 10.8 8
65-125/7.5 32 29.5 27.8 23.5 21.1 18.7 16.1 13.4 12
65-160/7.5 32 30 28.6 24.8 22.5 19.9 17.1 14.2
65-160/9.2 36.5 34.5 32.8 28.8 26.5 23.9 21.1 18.3 16.8
65-160/11 40.5 38.5 37.1 33.1 30.9 28.4 25.8 23 21.5 20
65-160/15 48 45.5 44 40 37.8 35.3 32.6 29.6 28 26.5
65-200/15 53.5 51 49 44 41.5 38.4 35.3 31.8 30
65-200/18.5 60.5 58.5 56.5 51.5 49 46 43 39.7 38 36.3
65-200/22 67 65.5 64 59.5 57 54 51 48 46.5 45
65-250/30 78 77 73.5 71 68 64.5 60 57.5 55 52
65-250/37 89 88 85.5 83 80.5 77.5 74 72 70 67.5 65
80-160/11 29 27.3 26.4 25.4 24.2 23 22.4 21.8 21.1 20.4 16.4 12.5
80-160/15R 32 30.5 29.7 28.8 27.7 26.5 25.9 25.3 24.6 24 20.1 16.5 14.5
80-160/15 35 34 33.3 32.5 31.5 30.5 30 29.4 28.8 28.1 24.4 21 19.1 17
80-160/18.5 40 39 38.4 37.6 36.7 35.7 35.2 34.7 34.1 33.5 30 26.4 24.4 22.3 20
80-200/22 50 48 47 45.5 44.5 43 42 41 40 39 33.2 27.8 25
80-200/30 60 58.5 58 57 56 54.5 54 53 52 51 46.5 41.5 39 36.1 33
80-200/37 66 64 63 62 61 59.5 59 58 57.5 56.5 51.5 47 44.5 41.5 38.5
80-250/37 73 71.5 70.5 68.5 66.5 64 63 61.5 60 58.5 48.5 38
80-250/45 84 82.5 81.5 80 78 76 75 73.5 72.5 71 62 53 48 42.5
80-250/55 95 93.5 92.5 91.5 90 88.5 87.5 86.5 85.5 84 76.5 68.5 64.5 60 5
