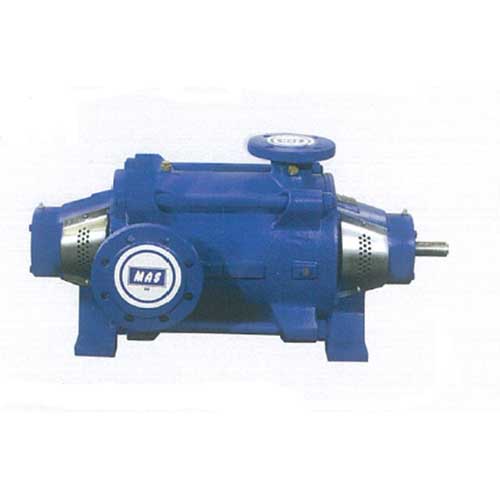

ปั๊มน้ำหอยโข่ง MASDAF OMK Series

ปั๊มน้ำหอยโข่ง MASDAF OMK Series

FIELDS OF APPLICATIONS In pumping of pure or relatively clean liquids in:

• Drinking water sources.
• High buildings and industrial pressure systems. . Water treatment systems.
•  Fire fighting systems.
• Boilers and condensation process.
•  Health and hygienic processes.
• All kinds of industrial applications.
• Water distribution systems.
•  Navigation, metallurgy, energy sectors.
• Irrigation systems.

DESIGN

• OMK series pumps are horizontal axis, OMK-V series pumps are vertical axis, and both of them have separable body and are multistage centrifugal pumps that can be dismantled in stages. . OMK-V pumps have bearings that support radial and axial thrust forces. On the bottom there is a water-lubricated sliding gear.
• Thrust is balanced by means of back wear rings. Any remaining unbalanced thrust is supported by ball bearings.
•  Back wear rings can be changed if desired.
• Both series consists of 5 types which are 32, 40, 50, 65 and 80. Stage number varies between 2 to 14 at OMK series.
• Suction and discharge flanges are PN40 compatible with DIN 2535 at OMK series, BS, ANSI or other standard flange sizes can be obtained if desired.
• Pump and motor are connected by means of a common adapter and flexible coupling at OMK-V series.
