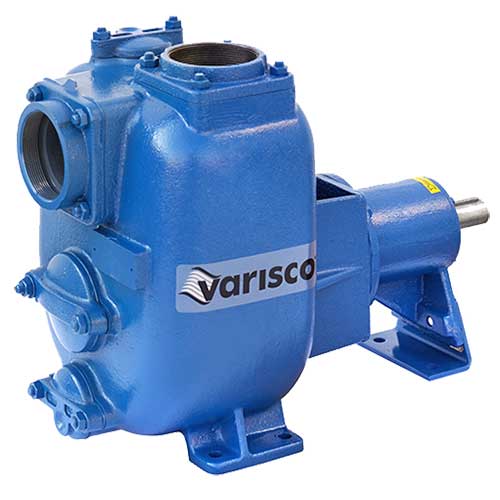

ปั๊มน้ำหอยโข่ง VARISCO J Series

Name: ปั๊มน้ำหอยโข่ง VARISCO J Series - บริษัท ย่งฮง (ประเทศไทย) จำกัด
Brand: VARISCO

ปั๊มน้ำหอยโข่ง VARISCO J Series มีความแข็งแรงทนทานและใช้งานได้ยาวนาน

Category ปั๊มน้ำดีและอุปกรณ์ Tags centrifugal pump, VARISCO, ปั๊มน้ำหอยโข่ง

ปั๊มน้ำหอยโข่ง VARISCO J Series

VARISCO J Series APPLICATIONS

INDUSTRY

Transfer: clean, dirty, containing sandin suspension, muddy, neutral, alkaline,acidic liquids; low viscous petroleum products, solvents even if dirty; milk of lime, caustic soda; washing, cooling, recirculation, smoke scrubbing

Treatment: pumping polluted, hot or corrosive waste water containing sand,mud or solids in suspension; dosing neutralising liquids; pumping out settled sludge

Naval: loading and unloading; bilge pumping; washing, fire-fighting, stripping,sanitary duty and circulation

Agriculture: surface irrigation; liquid manure oxygenation; transfer and spraying liquid manure or fertilisers; distribution of liquid animal feed; transfer of must; washing.

CIVIL ENGINEERING

Drainage of excavations, canals or ponds
Ground water dewatering with drains
Water supply from wells or canals
Washing concrete castings and aggregate
Recirculation of bentonite and drilling mud.

SAFETY

Drainage after flooding or terrential rains

Emergency duty: temporary sewage pumping; fire fighting; recovery of dangerous liquids.

VARISCO J Series FEATURES

Rapid self-priming

without foot valve. Once filled with water, the pump is automatically primed to a height of 7.5 m

Open impeller allowing the passage of wide solid bodies and easy inspection

High resistance to abrasive liquids: the wear plate is easily replaceable.

Axial mechanical seal lubricated from the outside: no leaks or infiltration of air along the shaft.

Easy to install: only the suction pipe needs to be immersed in the liquid. The pump can be locatabove and in a dry place, in the most suitable location for service and control.
Long life: the parts subject to wear can be easily replaced, several times, restoring the original performance of the pump

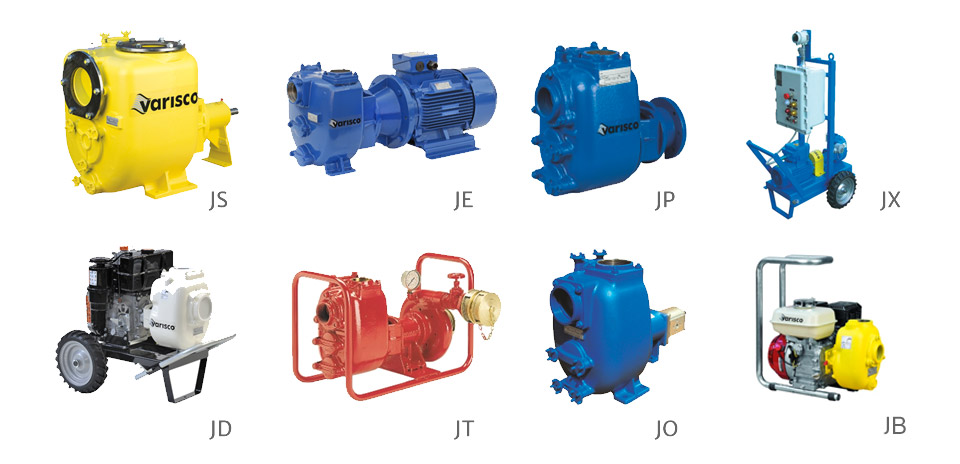

DRIVE

VARISCO J Series Centrifugal Pump Specifications

Specifications VARISCO J Series

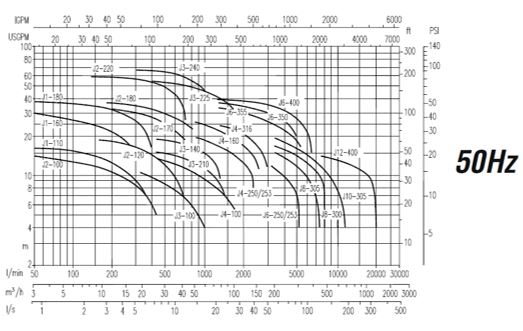

Model		Ports		Solids	50 HZ
Model		Ports		Solids	Capacity			Head			Speed	Power
New	Old	mm	in	mm	m3/h			m			rpm	kW
J 1-110 *	J 40	40	1”1/2	20	22	15	5	5,5	11	15	2900	1,1
J 1-160	E 30-160	40	1”1/2	8	20	12	5	10	24	27	2900	2,2
J 1-180 *		40	1”1/2	11	25	15	6	22	32	34	2900	4
J 2-100 *	E 50	50	2”	17	30	20	8	2	8	13	2900	1,1
J 2-120 *	J 50	50	2”	25	44	30	10	5	12	18	2900	2,2
J 2-170 *		50	2”	13	44	30	10	14	22	31	2900	4
J 2-180 *		50	2”	15	50	30	10	20	30	24	2900	5,5
J 2-220	J 60-220	50	2”	12	42	28	10	42	52	58	2900	11
J 3-100 *	E 75	80	3”	25	60	37	15	4	9	12	2900	2,2
J 3-140		80	3”	28	70	40	20	13	18	20	2900	4
J 3-225		80	3”	23	80	50	20	40	48	53	2900	15
J 3-240		80	3″	14	70	40	15	44	60	66	2900	18,5
J 4-100 *	E 100	100	4”	38	100	65	25	5	9	13	2900	4
J 4-159	J 90-2	100	4”	45	155	100	40	13	26	26	2900	15
J 4-160 *	J 90-4	100	4”	45	150	100	40	12	22	24	2900	11
J 3-210	J 85	80	3”	40	80	45	20	7	13	15	1450	4
J 4-250 *		100	4”	50	150	80	40	7	15	18	1450	7,5
J 4-253 *	J 4-250W	100	4”	45	150	100	40	9	15	19	1450	7,5
J 4-316		100	4”	38	180	110	60	16	26	29	1450	18,5
J 6-250 *		150	6”	76	300	200	80	5	11	15	1450	11
J 6-253 *	J 6-250W	150	6”	45	300	200	80	4	10	14	1450	11
J 6-350		150	6”	37	300	180	80	19	30	33	1450	30
J 6-355		150	6”	47	330	200	90	14	26	32	1450	30
J 6-400		150	6”	50	380	200	80	18	36	38	1450	45
J 8-300		200	8”	60	480	320	120	8	15	20	1450	22
J 8-305		200	8”	76	420	200	100	5	13	17	1450	18,5
J 10-305		250	10”	76	600	400	200	6	15	18,5	1450	30
J 6-350		150	6”	37	280	200	80	3	9	14	960	11
J 6-355		150	6”	47	225	150	75	5	10	14	960	11
J 12-400	J 300	300	12”	70	1200	720	300	8	12	15	960	55

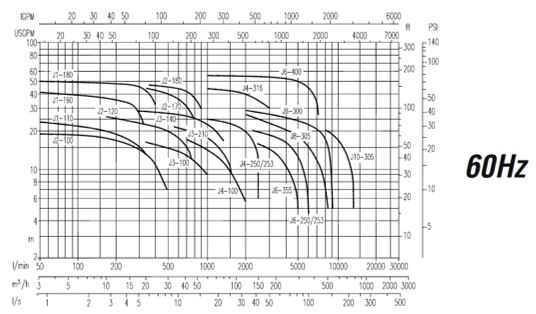

Model		Ports		Solids	60 HZ
Model		Ports		Solids	Capacity			Head			Speed	Power
New	Old	mm	in	mm	m3/h			m			rpm	kW
J 1-110 *	J 40	40	1”1/2	20	24	15	5	5	18	21,5	3450	2,2
J 1-160	E 30-160	40	1”1/2	8	21	13	5	12	35	39	3450	4
J 1-180 *		40	1”1/2	11	25	15	6	34	48	48	3450	5,5
J 2-100 *	E 50	50	2”	17	32	20	8	5	13	18	3450	2,2
J 2-120 *	J 50	50	2”	25	48	30	10	9,5	20	25	3450	4
J 2-170 *		50	2”	13	48	30	10	22	37	47	3450	7,5
J 2-180 *		50	2”	15	50	30	10	34	44	48	3450	11
J 2-220	J 60-220	50	2”	12	–	–	–	–	–	–	–	–
J 3-100 *	E 75	80	3”	25	70	43	15	5	13	17	3450	3
J 3-140		80	3”	28	70	40	20	21	26	28,5	3450	7,5
J 3-225		80	3”	23	–	–	–	–	–	–	–	–
J 3-240		80	3″	14	–	–	–	–	–	–	–	–
J 4-100 *	E 100	100	4”	38	120	75	30	6	14	18	3450	7,5
J 4-159	J 90-2	100	4”	45	–	–	–	–	–	–	–	–
J 4-160 *	J 90-4	100	4”	45	–	–	–	–	–	–	–	–
J 3-210	J 85	80	3”	40	90	45	20	12	19,5	22	1750	7,5
J 4-250 *		100	4”	50	150	80	40	14	24	26,5	1750	15
J 4-253 *	J 4-250W	100	4”	45	150	100	40	18	24	28	1750	15
J 4-316		100	4”	38	180	110	60	30	40	43	1750	30
J 6-250 *		150	6”	76	340	200	80	8	18	22	1750	22
J 6-253 *	J 6-250W	150	6”	45	340	200	80	8	17	20	1750	18,5
J 6-350		150	6”	37	–	–	–	–	–	–	–	–
J 6-355		150	6”	47	–	–	–	–	–	–	–	–
J 6-400		150	6”	50	380	200	100	42	54	55	1750	75
J 8-300		200	8”	60	480	320	120	15	25	28,5	1750	45
J 8-305		200	8”	76	480	200	100	10	20	27	1750	30
J 10-305		250	10”	76	600	400	200	17	23,5	28	1750	45
J 6-350		150	6”	37	–	–	–	–	–	–	–	–
J 6-355		150	6”	47	280	200	80	7	14	20	1150	15
J 12-400	J 300	300	12”	70	–	–	–	–	–	–	–	–

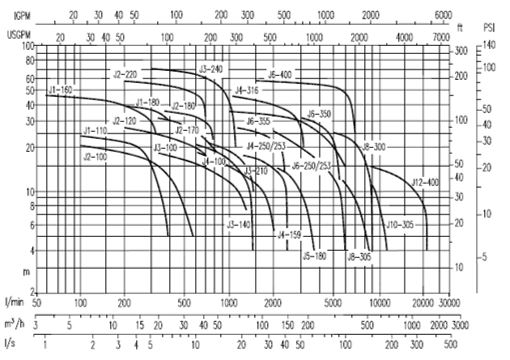

Engine-driven pumps

Model		Ports		Solids	Capacity	Head	Speed	Power
New	Old	mm	in	mm	m3/h	m	rpm	kW
J 1-110	J 40	40	1”1/2	20	25	25	3600	2,6
J 1-160	E 30-160	40	1”1/2	8	22	48	3600	5,5
J 1-180		40	1”1/2	11	26	48	3200	5,3
J 2-100	E 50	50	2”	17	39	22	3600	3
J 2-120	J 50	50	2”	25	48	28	3600	4,1
J 2-170		50	2”	13	50	36	3000	5,5
J 2-180		50	2”	15	50	40	3000	5,5
J 2-220	J 60-220	50	2”	12	41	60	3000	10,3
J 3-100	E 75	80	3”	25	75	22	3000	5
J 3-140		80	3”	28	80	25	3000	5,5
J 3-225		80	3”	23	120	60	3000	24
J 3-240		80	3”	14	70	78	3000	26
J 4-100	E 100	100	4”	38	130	24	3600	8
J 4-159	J 90-2	100	4”	45	170	23	2500	12
J 4-160	J 90-4	100	4”	45	160	21	2500	12
J 5-180	J 120-2	125	5”	60	230	17	2000	14
J 3-210	J 85	80	3”	40	90	25	1800	8,1
J 4-250		100	4”	50	160	32	1800	20
J 4-253	J 4-250W	100	4”	45	150	29	1800	20
J 4-316		100	4”	38	190	48	1800	41
J 6-250		150	6”	76	360	28	1800	22
J 6-253	J 6-250W	150	6”	45	340	23	1800	22
J 6-350		150	6”	37	330	40	1500	27,5
J 6-355		150	6”	47	340	37	1500	27,5
J 6-400		150	6”	50	400	62	1800	81
J 8-300		200	8”	60	550	30	1800	41
J 8-305		200	8”	76	530	28	1800	32
J 10-305		250	10”	76	750	25	1700	40
J 12-400	J 300	300	12”	70	1400	21	1150	110

DIMENSIONS AND WEIGHTS

Bare shaft

Model	Ports		B	H	L	D	Weight kg
Model	mm	in	mm	mm	mm	mm	Weight kg
J 1-110	40	1″1/2	171	227	364	19	15
J 1-110 K	40	1″1/2	179	220	349	19	18
J 1-160	40	1″1/2	241	279	383	19	22
J 1-180	40	1″1/2	269	328	495	28	44
J 2-100	50	2″	204	268	317	19	14
J 2-120	50	2″	188	328	429	19	25
J 2-120 K	50	2″	219	286	407	19	27
J 2-170	50	2″	298	388	554	28	60
J 2-180	50	2″	298	388	554	28	60
J 2-220	50	2″	402	405	556	28	56
J 3-100	80	3″	230	307	354	19	17
J 3-140	80	3″	264	400	549	28	42
J 3-140 B	80	3″	278	412	532	28	43
J 3-225	80	3″	316	404	623	28	75
J 3-240	80	3″	393	452	651	32	90
J 4-100	100	4″	283	382	468	19	35
J 4-159	100	4″	299	474	627	28	75
J 4-160	100	4″	299	474	627	28	75
J 3-210	80	3″	316	419	629	28	75
J 4-250	100	4″	421	497	759	32	130
J 4-253	100	4″	421	497	759	32	130
J 4-316	100	4″	531	585	883	42	172
J 4-316 K	100	4″	535	650	928	42	218
J 6-250	150	6″	475	619	872	32	203
J 6-253	150	6″	475	619	872	32	203
J 6-350	150	6″	578	684	895	40	280
J 6-355	150	6″	578	684	895	40	280
J 6-400	150	6″	730	821	1095	55	406
J 8-300	200	8″	591	734	1089	42	296
J 8-305	200	8″	591	734	1089	42	296
J 10-305	250	10″	758	942	1292	55	550
J 12-400	300	12″	920	1200	1170	60	710

Close-coupled to custom design electric motor

Model	Ports		B	H	L	Weight kg
Model	mm	in	mm	mm	mm	Weight kg
J 2-220	50	2″	402	405	700	105
J 3-140	80	3″	283	400	684	65
J 3-210	80	3″	316	419	690	95
J 4-316 G	100	4″	531	585	1066	349
J 4-316 K	100	4″	535	650	1097	347
J 6-350	150	6″	578	684	1095	275
J 6-355	150	6″	578	684	1095	275
J 8-300	200	8″	591	734	1238	427
J 8-305	200	8″	591	734	1238	427
J 10-305	250	10″	768	942	1481	780

Close-coupled to B34/B35 standard electric motor

Model	Ports		B	H	L	Weight kg
Model	mm	in	mm	mm	mm	Weight kg
J 1-110	40	1″1/2	160	237	496	29
J 1-160	40	1″1/2	241	287	584	39
J 1-180	40	1″1/2	304	321	694	71
J 2-100	50	2″	204	262	504	27
J 2-120	50	2″	193	291	601	41
J 2-170	50	2″	345	404	859	96
J 2-180	50	2″	345	404	859	96
J 3-100	80	3″	230	307	603	37
J 3-140	80	3″	305	384	754	75
J 3-240	80	3″	393	452	1075	255
J 4-160	100	4″	299	465	1047	191
J 4-250	100	4″	421	490	981	186
J 4-253	100	4″	421	490	981	186
J 6-250	150	6″	475	590	1242	279
J 6-253	150	6″	475	590	1242	279

Engine driven pumps

Model	Ports		B	H	L	Weight kg
Model	mm	in	mm	mm	mm	Weight kg
J 1-110	40	1″1/2	610	700	700	80
J 1-160	40	1″1/2	610	675	870	60
J 1-180	40	1″1/2	610	700	700	110
J 2-100	50	2″	420	570	980	58
J 2-120	50	2″	610	700	700	85
J 2-170	50	2″	720	1100	920	125
J 2-180	50	2″	720	1100	920	125
J 2-220	50	2″	800	952	1250	220
J 3-100	80	3″	420	570	980	69
J 3-140	80	3″	720	1100	920	130
J 3-240	80	3″	690	1470	1710	450
J 4-100	100	4″	610	730	700	108
J 4-159	100	4″	780	1170	1150	230
J 5-180	125	5″	1468	1247	1450	345
J 3-210	80	3″	780	1150	1270	270
J 4-250	100	4″	1468	1605	1845	610
J 4-253	100	4″	1468	1605	1845	610
J 4-316	100	4″	1368	1490	2138	745
J 6-250	150	6″	1368	1587	1753	710
J 6-253	150	6″	1368	1587	17532	710
J 6-350	150	6″	1460	1632	2528	955
J 6-355	150	6″	1460	1632	2528	955
J 6-400	150	6″	1604	1706	2828	1450
J 8-300	200	8″	1468	1632	1853	920
J 8-305	200	8″	1468	1632	1853	920
J 10-305	250	10″	1604	1677	2933	1340
J 12-400	300	12″	1814	1720	2933	2060

ปั๊มน้ำหอยโข่ง VARISCO J Series

ปั๊มน้ำหอยโข่ง VARISCO J Series

DRIVE

VARISCO J Series Centrifugal Pump Specifications

DIMENSIONS AND WEIGHTS

ขอใบเสนอราคา/Request a quote

บริษัท ย่งฮง (ประเทศไทย) จำกัด

นโยบายบริษัท

บริษัท ย่งฮง (ประเทศไทย) จำกัด

นโยบายบริษัท

ปั๊มน้ำหอยโข่ง VARISCO J Series

ปั๊มน้ำหอยโข่ง VARISCO J Series

DRIVE

VARISCO J Series Centrifugal Pump Specifications

DIMENSIONS AND WEIGHTS

สินค้าที่เกี่ยวข้อง

ปั๊มหอยโข่ง LOWARA Vogel series

ปั๊มน้ำหอยโข่ง VOLUTE PCD Series

ปั๊มน้ำหอยโข่ง MARELLI AQUAFIT Series

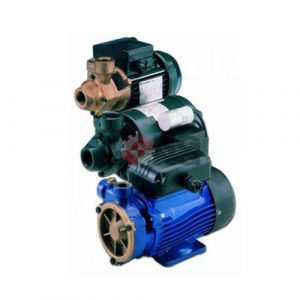

ปั๊มหอยโข่ง LOWARA P, PAB, PSA
